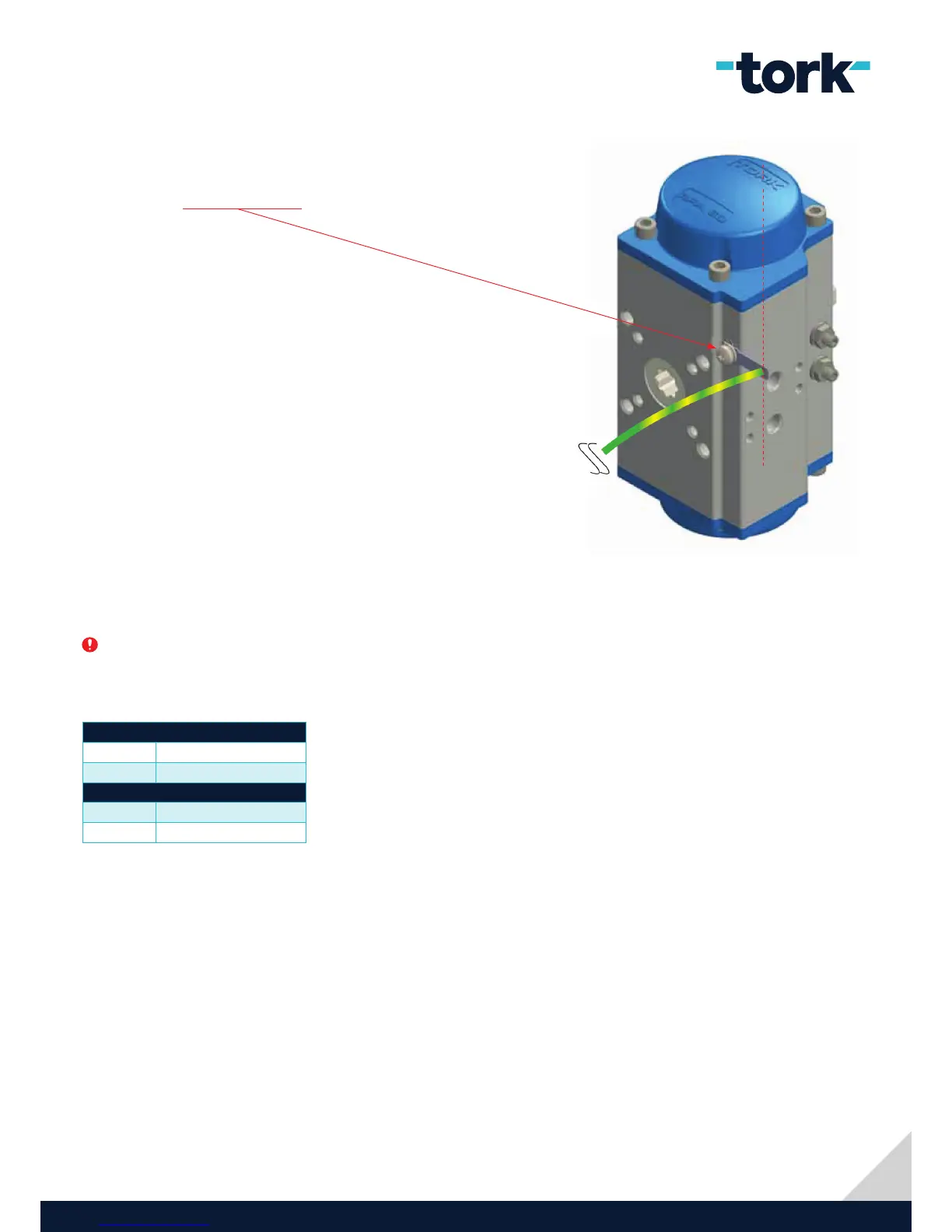

f. Ground Connection
In exproof models mount the main supply
ground cable socket (color code is yellow
green) to the ground connector on the
pneumatic actuator.
g. Actuator Supply Condition
Before connect the air system to actuator, use air filter, pressure, and oiler. For the accurate operation temperature and pressure
ranges are listed below. Responsibility for supply condition belonged to the user. For any damage on or in the pneumatic actuator
cause of different supply condition listed below, company has no responsibility. Service actions would be taken with a fee.
Recommended piping for the inlet and outlet pneumatic connections to the actuator of the device is PVC tubing. The length of tubing
between the deviceand the actuator shall be kept as short as possible and if possible free of kinks.
Only dry air filtered to 50 micron or better is recommended. The process air pressure shall meet the requirements. The process air
capacity shall be sufficient to move the valve actuator within the required time.
Double Acting 2,5 bar ... 8 bar
Single Acting 4 bar ... 8 bar
Standard
-20
0
C ... 80
0
C
On Request
-20
0
C ... 150
0
C or -30
0
C ... 80
0
C
PRESSURE (bar)
TEMPERATURE (
0
C)
