c. Exploded Drawings and Part Lists
29 SERRATED LOCK WASHER DIN 6798 M5 STAINLESS STEEL NOS 1
28 GROUND CONNECTOR BRASS NOS 1
27 WASHER DIN 125 M5 STAINLESS STEEL NOS 1
26 SPRING WASHER DIN 6799 M5 STAINLESS STEEL NOS 1
25 BOLT DIN 7985 M5X16 STAINLESS STEEL NOS 1
24 INDICATOR ABS NOS 1
23 O-RING (STOP SET SCREW) NITRILE (NBR 70) NOS 2
22 STOP SET SCREW WASHER DIN 125 M6 STAINLESS STEEL NOS 2
21 STOP NUT DIN 934 M6 STAINLESS STEEL NOS 2
20 STOP SET SCREW DIN 916 M6X25 STAINLESS STEEL NOS 2
19 SPRING CLIP (PINION) DIN 471/15 STEEL ALLOY NOS 1
18 THRUST BEARING (PINION) POLYPHTALAMIDE NOS 1
17 O-RING (PINION TOP) NITRILE (NBR 70) NOS 1
16 BEARING (PINION TOP) POLYPHTALAMIDE NOS 1
15 BEARING (PINION BOTTOM) POLYPHTALAMIDE NOS 1
14 O-RING (PINION BOTTOM) NITRILE (NBR 70) NOS 1
13 COVER BOLT DIN 912 M5X16 STAINLESS STEEL NOS 8
12 O-RİNG (COVER) NITRILE (NBR 70) NOS 2
11 SPRING HOLDER POLYPROPLYLENE + GF NOS min.5 / max.12
10 O-RING (PISTON) NITRILE (NBR 70) NOS 2
9 BEARING (PISTON SLIDING) POLYPHTALAMIDE NOS 2
8 BEARING (PISTON BACK) POLYPHTALAMIDE NOS 2
7 CAM (STOP ARRANGEMENT) STAINLESS STEEL NOS 1
6 PINION STEEL ALLOY NOS 1
5 SPRING HIGH ALLOY SPRING STEEL NOS min.5 / max.12
4 COVER RIGHT DIE CAST ALUMINIUM NOS 1
3 COVER LEFT DIE CAST ALUMINIUM NOS 1
2 PISTON DIE CAST ALUMINIUM NOS 2
1 BODY EXTRUDED ALUMINIUM ALLOY NOS 1
No Part Name Material Unit Quantity
Tab 1. Part list of Spring Return Actuators (RA032-RA040-RA060-RA080-RA100-RA120)

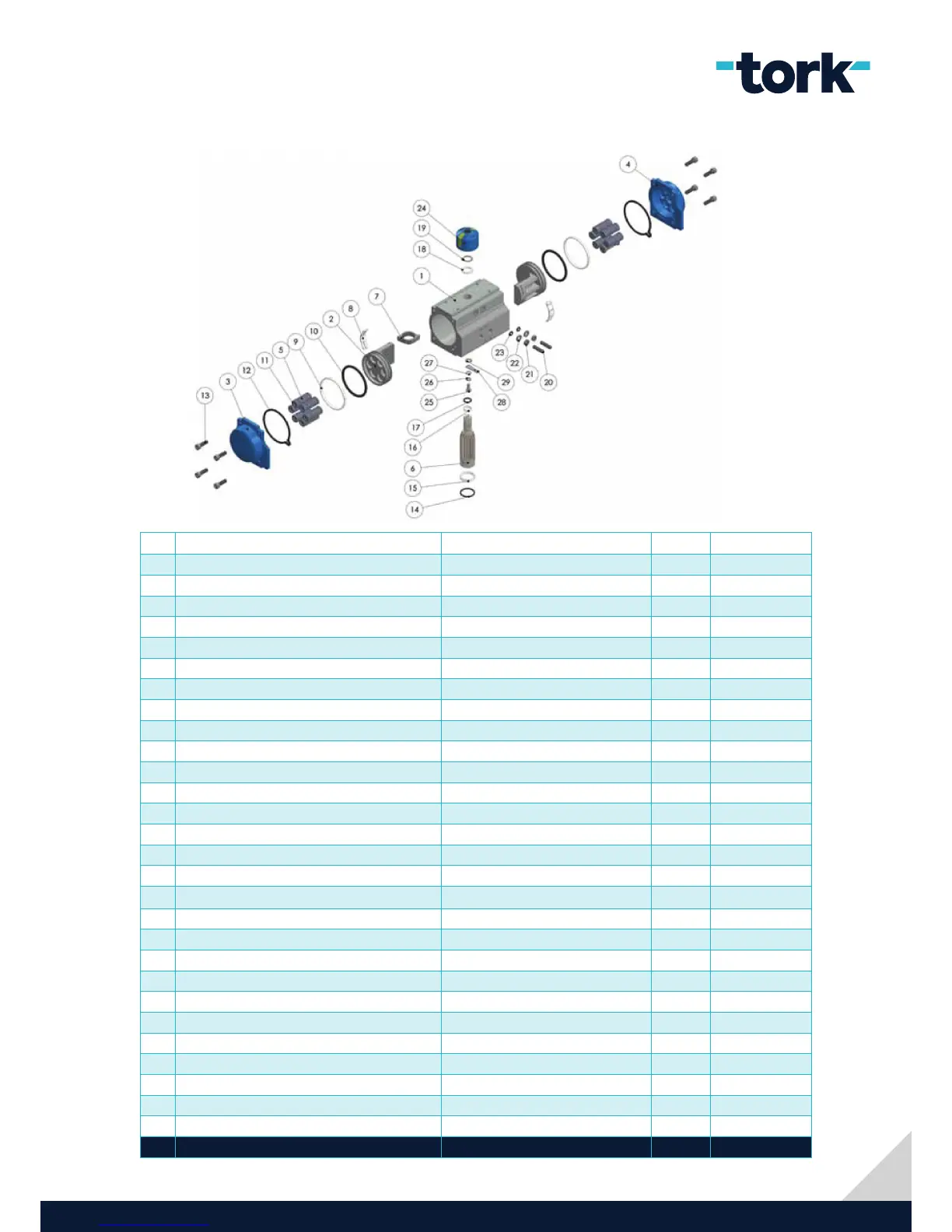

Fig 3. Exploded drawing of Spring Return Actuators
(RA032-RA040-RA060-RA080-RA100-RA120)
