c. Exploded Drawings and Part Lists
27 SERRATED LOCK WASHER DIN 6798 M5 STAINLESS STEEL NOS 1
26 GROUND CONNECTOR BRASS NOS 1
25 WASHER DIN 125 M5 STAINLESS STEEL NOS 1
24 SPRING WASHER DIN 6799 M5 STAINLESS STEEL NOS 1
23 BOLT DIN 7985 M5X16 STAINLESS STEEL NOS 1
22 INDICATOR ABS NOS 1
21 O-RING (STOP SET SCREW) NITRILE (NBR 70) NOS 2
20 STOP SET SCREW WASHER DIN 125 M6 STAINLESS STEEL NOS 2
19 STOP NUT DIN 934 M6 STAINLESS STEEL NOS 2
18 STOP SET SCREW STAINLESS STEEL NOS 2
17 SPRING CLIP (PINION) DIN 471/15 STEEL ALLOY NOS 1
16 THRUST BEARING (PINION) POLYPHTALAMIDE NOS 1
15 O-RING (PINION TOP) NITRILE (NBR 70) NOS 1
14 BEARING (PINION TOP) POLYPHTALAMIDE NOS 1
13 BEARING (PINION BOTTOM) POLYPHTALAMIDE NOS 1
12 O-RING (PINION BOTTOM) NITRILE (NBR 70) NOS 1
11 COVER BOLT DIN 912 M5X16 STAINLESS STEEL NOS 8
10 O-RİNG (COVER) NITRILE (NBR 70) NOS 2
9 O-RING (PISTON) NITRILE (NBR 70) NOS 2
8 BEARING (PISTON SLIDING) POLYPHTALAMIDE NOS 2
7 BEARING (PISTON BACK) POLYPHTALAMIDE NOS 2
6 CAM (STOP ARRANGEMENT) STAINLESS STEEL NOS 1
5 PINION STEEL ALLOY NOS 1
4 COVER RIGHT DIE CAST ALUMINIUM NOS 1
3 COVER LEFT DIE CAST ALUMINIUM NOS 1
2 PISTON DIE CAST ALUMINIUM NOS 2
1 BODY EXTRUDED ALUMINIUM ALLOY NOS 1
No Part Name Material Unit Quantity
Tab 2. Part list of Double Acting Actuators (RA032-RA040-RA060-RA080-RA100-RA120)

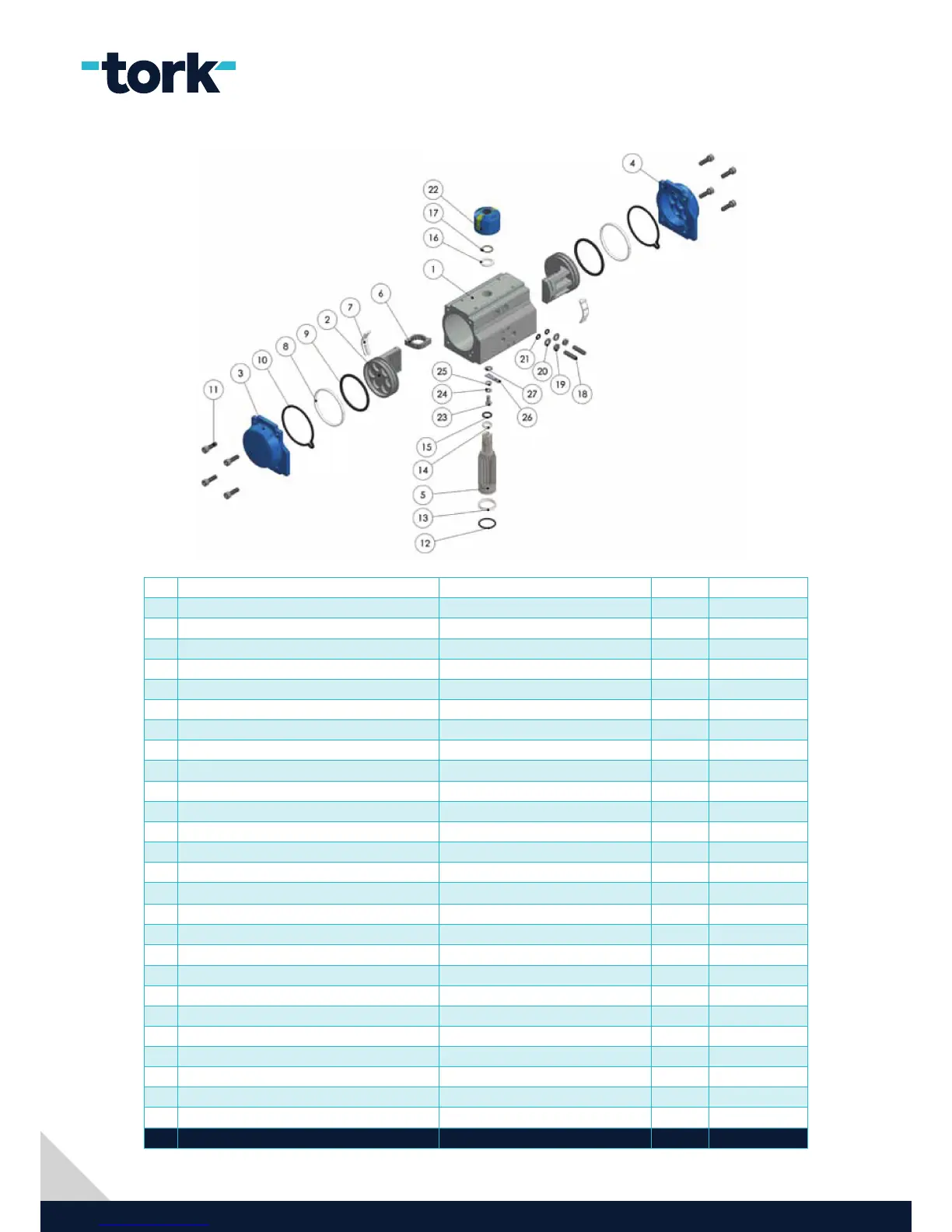

Fig 4. Exploded drawing of Double Acting
Actuators (RA032-RA040-RA060-
RA080-RA100-RA120)
