c. Exploded Drawings and Part Lists
22 SERRATED LOCK WASHER DIN 6798 M5
STAINLESS STEEL NOS
1
21 GRAUND CONNECTOR
BRASS NOS
1
20 WASHER DIN 125 M5
STAINLESS STEEL NOS
1
19 SPRING WASHER DIN 6799 M5
STAINLESS STEEL NOS
1
18 BOLT DIN 7985 M5X16
STAINLESS STEEL NOS
1
17 INDICATOR ABS
NOS
1
16 SPRING CLIP (PINION) DIN 471/38
STEEL ALLOY NOS
1
15 THRUST BEARING (PINION)
POLYPHTALAMIDE NOS
1
14 O-RING (PINION TOP) NITRILE
NOS
1
13 BEARING (PINION TOP)
POLYPHTALAMIDE NOS
1
12 BEARING (PINION BOTTOM)
POLYPHTALAMIDE NOS
1
11 O-RING (PINION BOTTOM) NITRILE
NOS
1
10 COVER BOLT DIN 912 M8X35 PASLANMAZ ÇELİK
NOS
8
9 O-RING (COVER) NITRILE
NOS
2
8 O-RING (PISTON) NITRILE
NOS
2
7 BEARING (PISTON SLIDING)
POLYPHTALAMIDE NOS
2
6 BEARING (PISTON BACK)
POLYPHTALAMIDE NOS
2
5 PINION
STEEL ALLOY NOS
1
4 SPRING HIGH ALLOY SPRING STEEL
NOS
2
3 COVER CASTING ALUMINIUM
NOS
2
2 PISTON CASTING ALUMINIUM
NOS
2
1 BODY CASTING ALUMINIUM ALLOY
NOS
1
No
Part Name Material Unit Quantity
Tab 3. Part list of Spring Return Actuators (RA143-RA160-RA200-RA400)

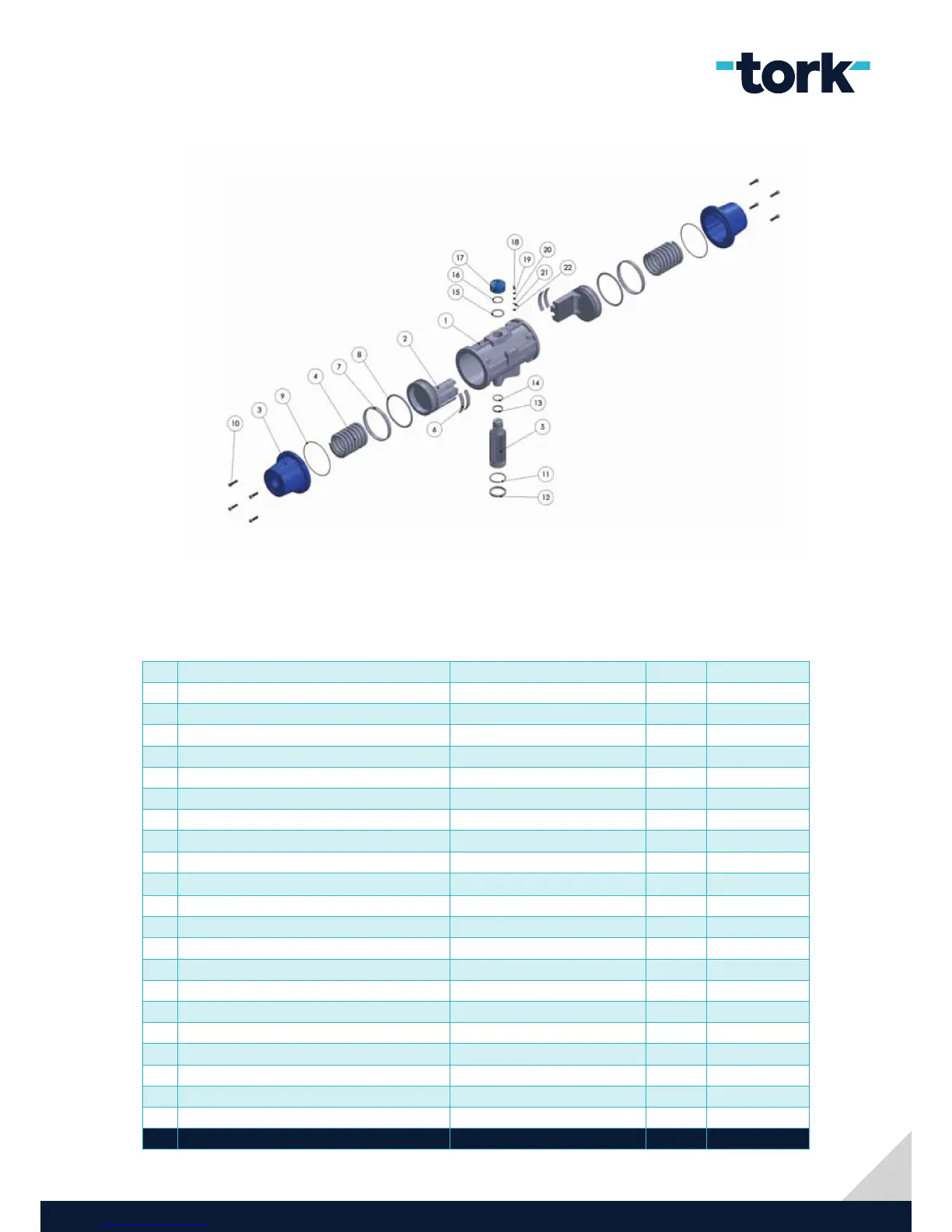

Fig 5. Exploded drawing of Spring
Return Actuators (RA143-RA160-RA200-
RA400)
