Tork RA032 - Page 8

c. Exploded Drawings and Part Lists
25 BOLT
STAINLESS STEEL NOS
1
24 SPRING WASHER
STAINLESS STEEL NOS
1
23 WASHER
STAINLESS STEEL NOS
1
22 GROUND CONNECTOR
BRASS NOS
1
21 SERRATED LOCK WASHER
STAINLESS STEEL NOS
1
20 INDICATOR ABS
NOS
1
19 O-RING (STOP SET SCREW)
NITRILE NOS
2
18 STOP SET SCREW WASHER
STAINLESS STEEL NOS
2
17 STOP NUT
STAINLESS STEEL NOS
2
16 STOP SET SCREW
STAINLESS STEEL NOS
2
15 SPRING CLIP (PINION)
STEEL ALLOY NOS
1
14 THRUST BEARING (PINION)
POLYPHTALAMIDE NOS
1
13 O-RING (PINION TOP)
NITRILE NOS
1
12 BEARING (PINION TOP)
POLYPHTALAMIDE NOS
1
11 BEARING (PINION BOTTOM)
POLYPHTALAMIDE NOS
1
10 O-RING (PINION BOTTOM)
NITRILE NOS
1
9 COVER BOLT
STAINLESS STEEL NOS
8
8 O-RİNG (COVER)
NITRILE NOS
2
7 O-RING (PISTON)
NITRILE NOS
2
6 BEARING (PISTON SLIDING)
POLYPHTALAMIDE NOS
2
5 BEARING (PISTON BACK)
POLYPHTALAMIDE NOS
2
4 PINION
STEEL ALLOY NOS
1
3 COVER
DIE CAST ALUMINIUM NOS
2
2 PISTON
DIE CAST ALUMINIUM NOS
2
1
BODY EXTRUDED ALUMINIUM ALLOY NOS
1
No
Part Name Material Unit Quantity

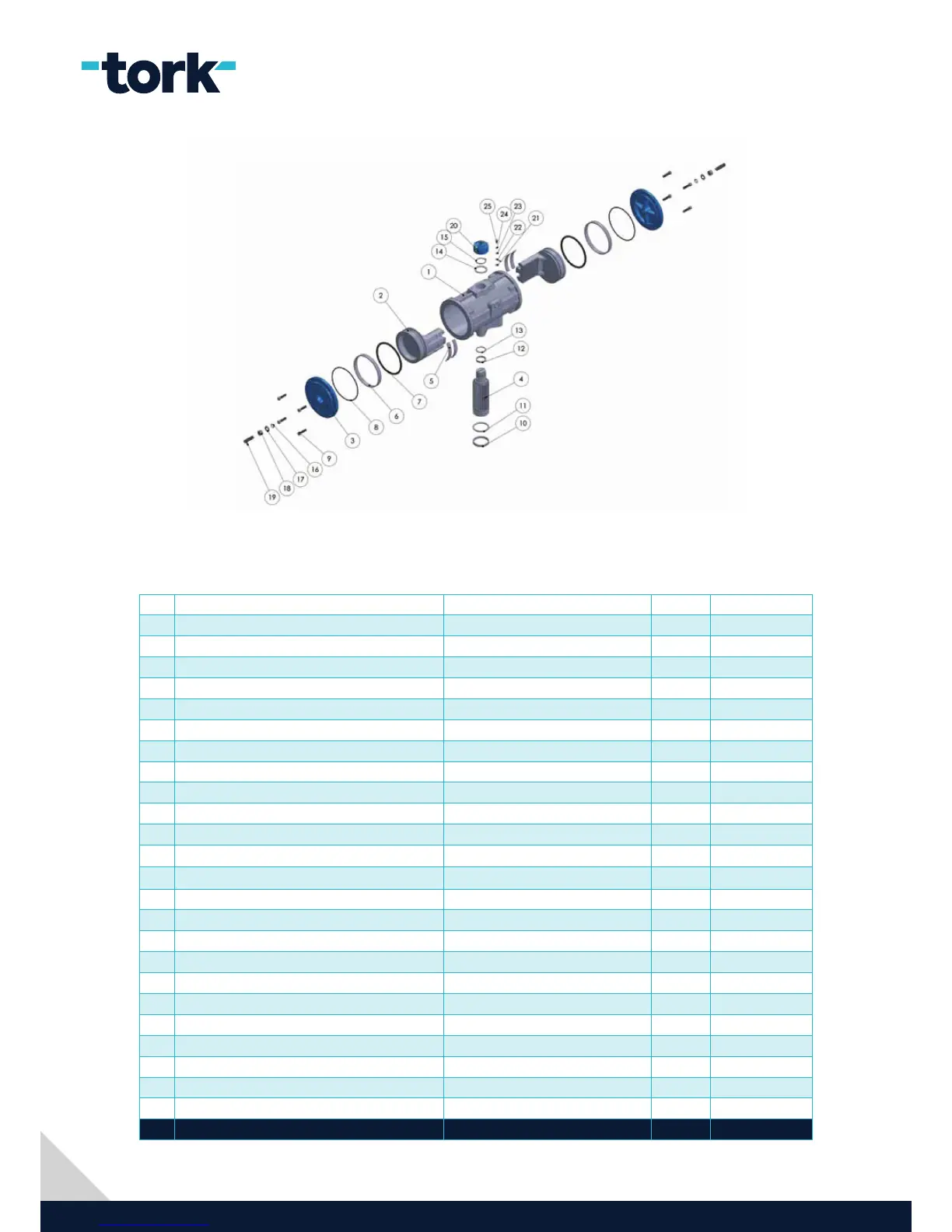

Tab 4. Part list of Double Acting Actuators (RA143-RA160-RA200-RA400)
Şekil 6. Çift Etkili Aktüatör patlamış
resmi (RA143-RA160-RA200-RA400
RA270-RA350)
SMS-TORK Endüstriyel Otomasyon Ürünleri San. Tic. Ltd. Şti.
8
valve & automation
