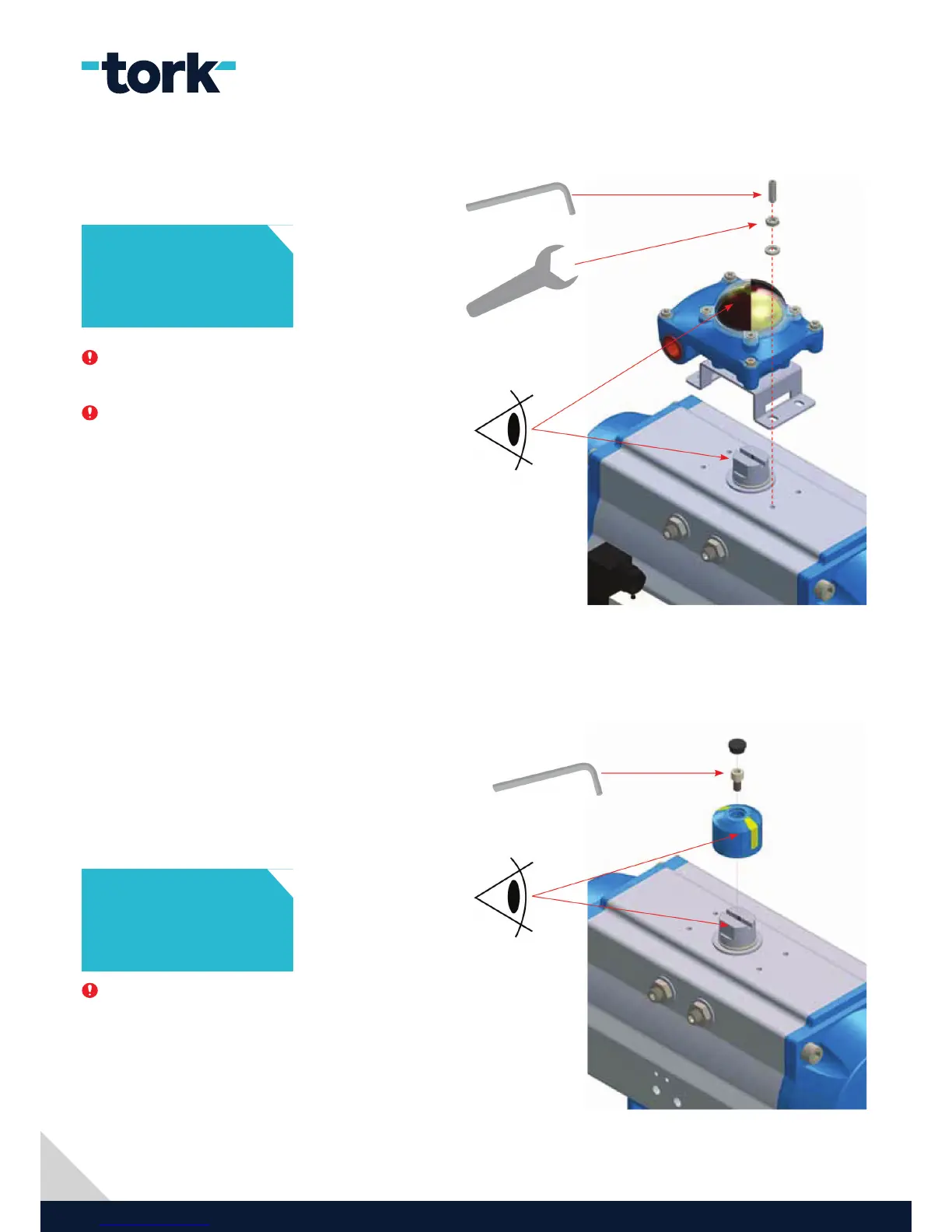

d. Mounting the Switch Box to
Actuator Assembly
I. Mount the switch box to the actuator with
set screw and nut by suitable tools.
e. Mounting the Position Indicator
to Actuator Assembly
I. Mount the position indicator to the
actuator with flat screw by suitable tool.
Before connect the actuator
and switch box, check the
position of the switch box and
the actuator pinion
Before connect the actuator
and switch box, check the
position of the switch box and
the actuator pinion
Pneumatic connections should be
disconnected before any intervention.
For protection against potentially explosive
atmospheres use certified ex proof switch box
and “RX” code exproof pneumatic actuators
Pneumatic connections should be
disconnected before any intervention.
