INSTALL THE PATHPILOT OPERATOR CONSOLE
5. Put the operator console's power supply into the power supply bracket (provided in the operator console
box), and attach the assembly to the underside of the keyboard tray with M3 Phillips screws and a Phillips
screwdriver.

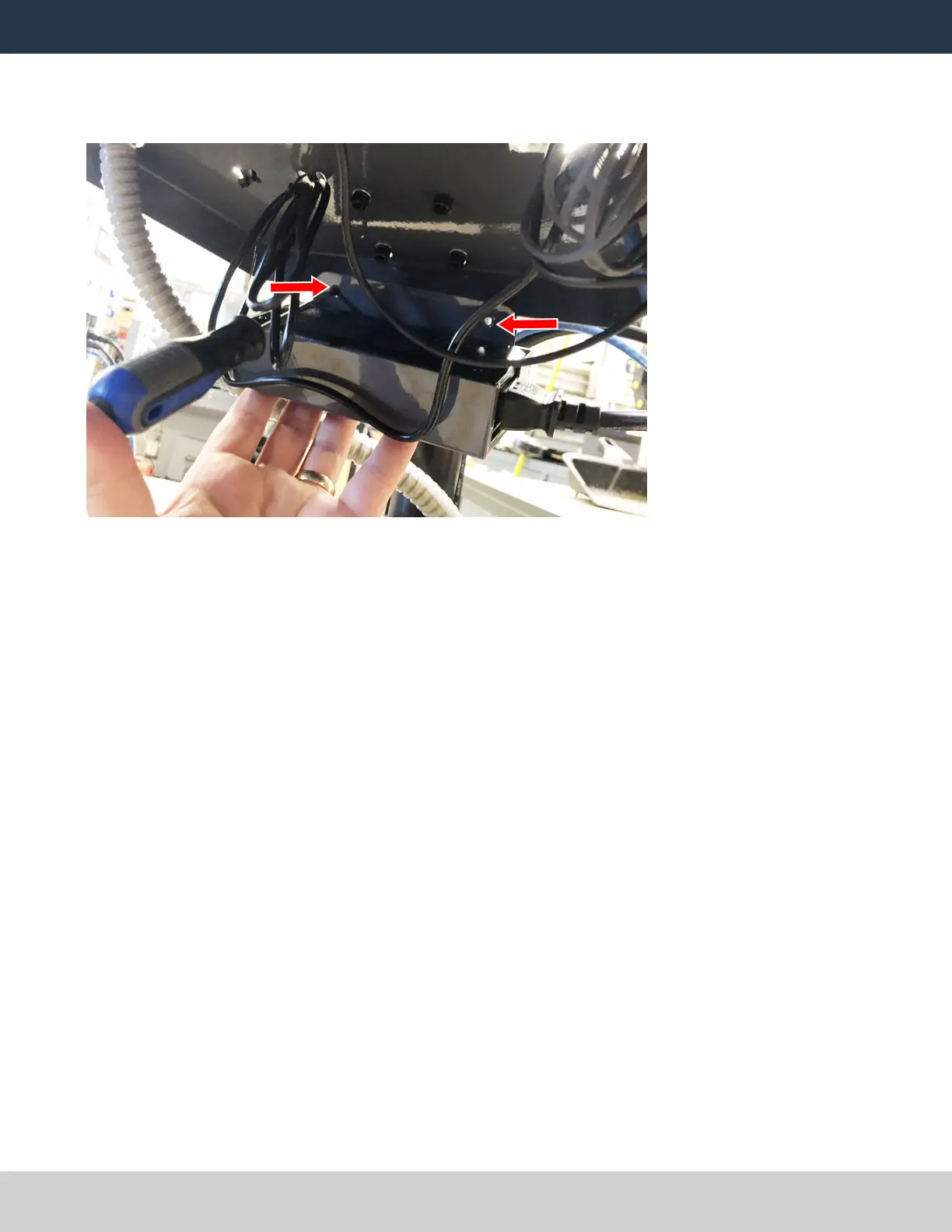

Figure 8: Attaching the operator console's power supply and power supply bracket to the keyboard tray (from below).
6. Connect the 12 ft power cable to the power supply.
7. Use the three pivot bolts on the controller arm monitor bracket to adjust the position of the operator console
and the keyboard tray to your desired angle with a 3 mm hex wrench and 16 mm hex wrench.
8. If you have any of the following optional USB accessories, connect them to any USB port on the operator
console:
l Keyboard
l Mouse
9. Connect the WiFi dongle to any USBport on the operator console.
10. Connect the Ethernet cable to the Ethernet port on the operator console.
