3. Bring the machine to an
appropriate place for tank draining.
ATTENTION:
The machine is not equipped with a
parking brake, therefore do not leave it
on slopes.

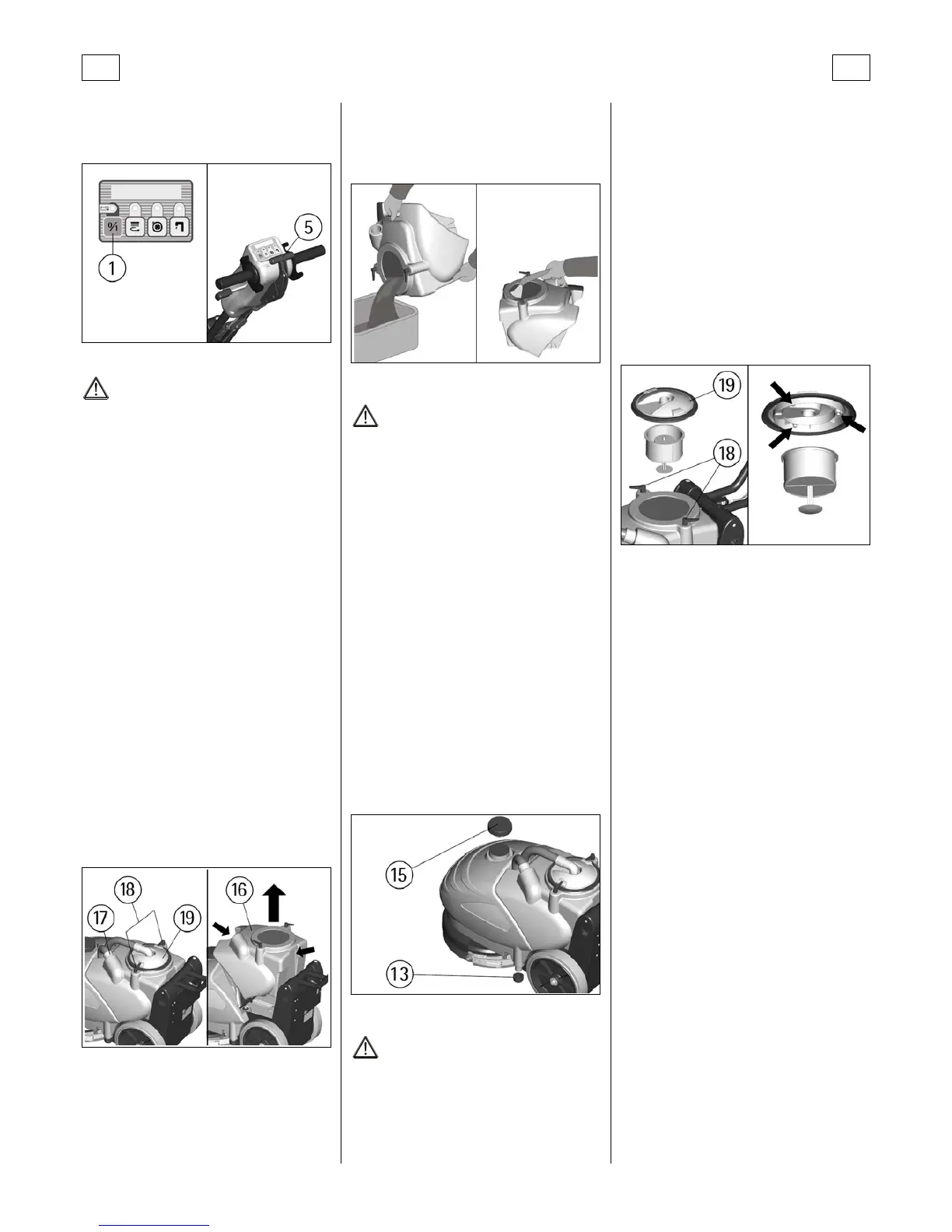

DAILY MAINTENANCE
Emptying and cleaning of the
recovery tank
To empty and clean the recovery
tank.
1. Switch off the machine pressing
the main switch.
2. Take off the suction cover (19)
after rotating the blocking levers
(18).
3. Take off the squeegee hose from
the seat (17).
4. Lift and take off the recovery
tank (16) holding it from the
provided handles located on the
front and back of the tank.
Empty the recovery tank into
appropriate containers, according
to the standard norms for the liquid
disposal.
5. Clean and rinse the tank and
allow to air dry.
6. Reassemble everything.
ATTENTION:
This operation must be carried out
using gloves to protect from contact
with dangerous solutions.
Emptying and cleaning of the
solution tank
To empty the solution remained in
the solution tank:
1. Bring the machine to an
appropriate place for draining of
the tank.
2. Switch off the machine pressing
the main switch.
3.Unscrew the cap (15) of the
solution tank.
4. Unscrew the drain plug (13)
placed in the rear low left part of
the machine.
ATTENTION:
This operation must be carried out
using gloves to protect from contact
with dangerous solutions.
Suction filter cleaning
1. Take off the suction cover (19)
after rotating the blocking levers
(18).
2. Take off the filter with the float,
bending the filter edge to release it
from the screws on the cover.
3. Clean all parts with a water jet
and especially the surfaces and
filter bottom.
4. Carry out the recovery tank
cleaning operations.
5. Reassemble everything.
Positioning of the machine for
maintenance and parking
The machine can assume a vertical
positioning, tipped over at the
back, after having folded the
handle bar onto the machine.
This position allows the unit to be
stored in a small space and
simplifies maintenance operations.
To rotate the machine to a storeage
position it is necessary to:
1. Switch off the main switch.
2. Check that both tanks are empty,
otherwise empty them (see under
“EMPTYING AND CLEANING
OF THE RECOVERY TANK”
and “EMPTYING AND
CLEANING OF THE SOLUTION
TANK”).
3. Pull up on the handle bar release
lever (8) near the handle bar.
4. Rotate the handle bar towards
the tanks keeping the release lever
(8) pulled.
5. Release the lever (8) to obtain
the handle bar locking posotion.
6. Holding the handle bar firmly,
lift the front part of the machine
11
