11
In this way it will be possible to handle
the batteries with suitable lifting equip-
ment.
BATTERY INSTALLATION
The machine is equipped either with
batteries in serial connection or ele-
ments of DIN-type assembled together
and connected in series for a total of
24 Volt, placed in its appropriate com-
partment under the seat platform and
must be handled using suitable lifting
equipment (due to weight, consider-
ing the type of batteries chosen, and
coupling system).
The batteries must be in accordance
with CEI 21-5 Norms.
ATTENTION:
The machine and its battery check
card foresee the use of traditional lead
batteries.
CHECK THE SETTING OF THE
CHECK CARD (see under paragraph
"BATTERIES CHARGE LEVEL INDI-
CATOR").
In case of GEL batteries installation, it
is necessary to MODIFY THE SET-
TING of the electronic check card (see
under paragraph SETTING OF THE
BATTERY CHECK CARD”).
ATTENTION:
Strictly follow manufacturer/distributor
indications for the maintenance and
recharge of the batteries. All installa-
tion and maintenance operations must
be executed by specialized staff, using
suitable protection accessories.
For batteries installation it is necessary
to reach the battery compartment as
indicated under paragraph “ACCESS
TO THE BATTERY COMPARTMENT”.
1. Place the batteries in its compart-
ment.
2. Connect the terminals, respecting
the polarities, avoiding contact with
other parts that could create short
circuit.
BATTERY RECHARGER
Make sure that the battery recharger is
suitable for the installed batteries both
for their capacities and type (lead/acid
or GEL and equivalent).
BATTERY RECHARGER
Make sure that the battery recharger is
suitable for the installed batteries both
for their capacities and type (lead/acid
or GEL and equivalent).
In the plastic bag containing the use
and maintenance you will nd the
coupling connector for the recharger. It
must be assembled onto the cables of
your recharger, following the instruc-
tions given by the manufacturer.
ATTENTION:
This operation must be carried out by
qualied staff. A wrong or faulty cable
connection can cause serious dam-
ages to persons or things.
INCORPORATED BATTERY RE-
CHARGER (OPTIONAL)
If the machine is equipped with the
incorporated battery recharger (see
under "OPTIONAL ACCESSORIES”)
please refer to the instructions of this
accessory.
The battery recharger is connected
directly to the battery poles.
During the recharging operations a
device is activated which disables the
machine.
The mains cable of the battery re-
charger has a maximum length of two
metres and must be connected to a
single-phase socket type CEE 7/7.
BATTERIES RECHARGING

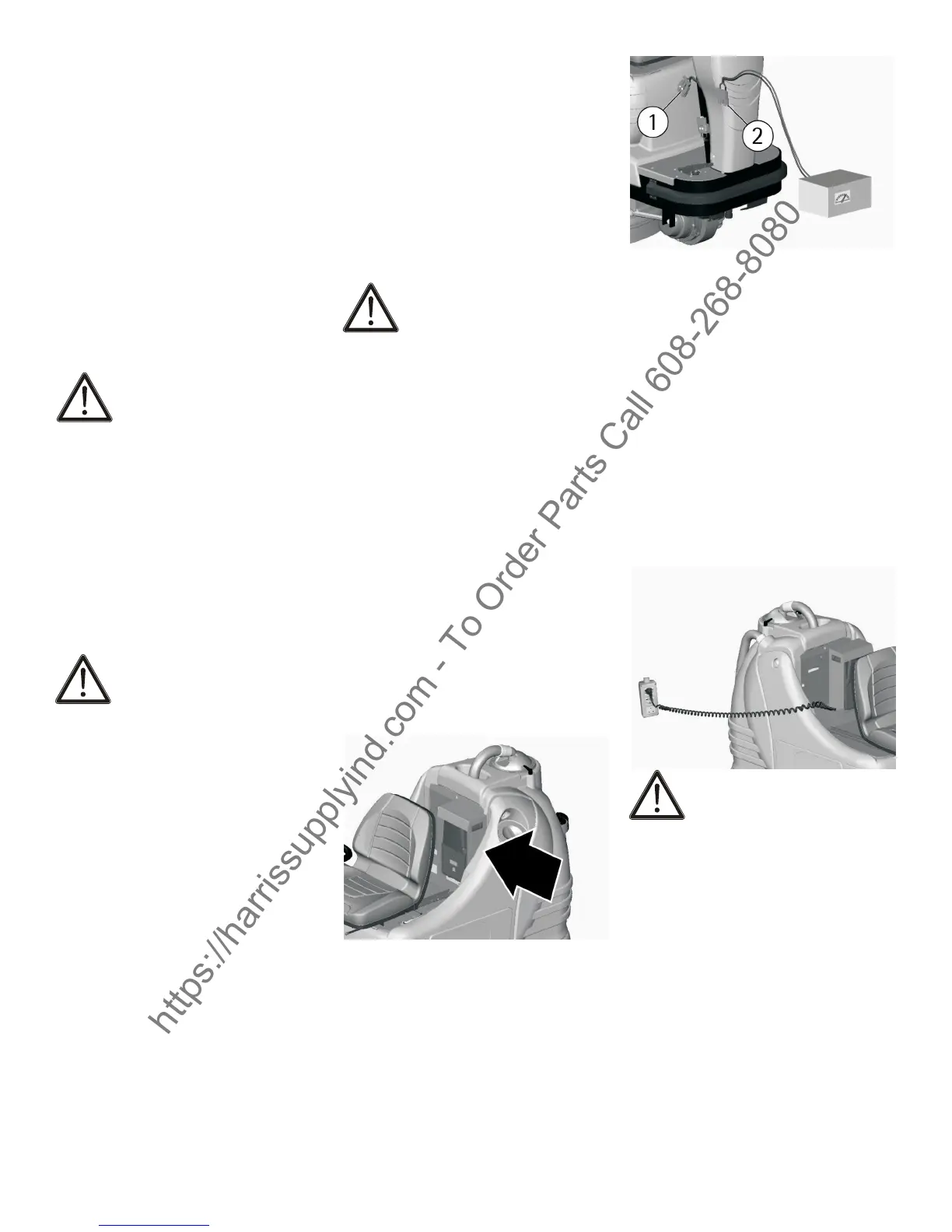

1. Plug the connector (2) of the bat-
tery recharger into the battery connec-
tor (1).
2. Proceed for the recharging.
BATTERIES RECHARGING WITH
INCORPORATED CHARGER (OP-
TIONAL)
Bring the machine on a level surface
near to a single-phase 120V 60 Hz
socket, nominal current 10A.
Switch off the switches of the brushes
motor, the suction motor and the sole-
noid valve.
1. Insert the plug into the mains
socket.
2. Proceed to recharge, keeping the
seat base lifted (see under paragraph
“ACCESS TO THE BATTERY COM-
PARTMENT” in “BEFORE USE”).
3. At the end of the recharging, take
off the plug from the mains socket.
ATTENTION:
Never charge a GEL battery with a
non suitable recharger. Strictly follow
the instructions supplied by the batter-
ies and recharger manufacturer.
In order not to cause permanent dam-
ages to the batteries, it is necessary
to avoid their complete discharge,
providing for the recharging within a
few minutes after that the batteries
discharge signal starts blinking.
