Tornado BD 26/27 User Manual

12
NOTE: Never leave the batteries
completely discharged even if the ma-
chine is not used. In case of traditional
batteries, please check the electrolyte
level every 20 recharging cycles and
eventually top them up with distilled
water. Never leave the batteries dis-
charged for more than two weeks.
ATTENTION:
For the recharge of the batteries it is
necessary to strictly follow all the indi-
cations given by the manufacturer/dis-
tributor. All the installation and main-
tenance operations must be carried
out by qualied staff. Danger of gas
exhalations and emission of corrosive
liquids. Fire danger: do not approach
with free ames.
BATTERIES DISPOSAL
It is compulsory to hand over exhaust-
ed batteries, classied as dangerous
waste, to an authorized institution ac-
cording to the current laws.
CONNECTION BATTERIES' CON-
NECTOR AND SWITCHING ON OF
THE MACHINE
Once that the battery recharging has
been completed:
1. Disconnect the connector of the
battery recharger from the battery con-
nector (1).
2. Connect instead the machine con-
nector (2).

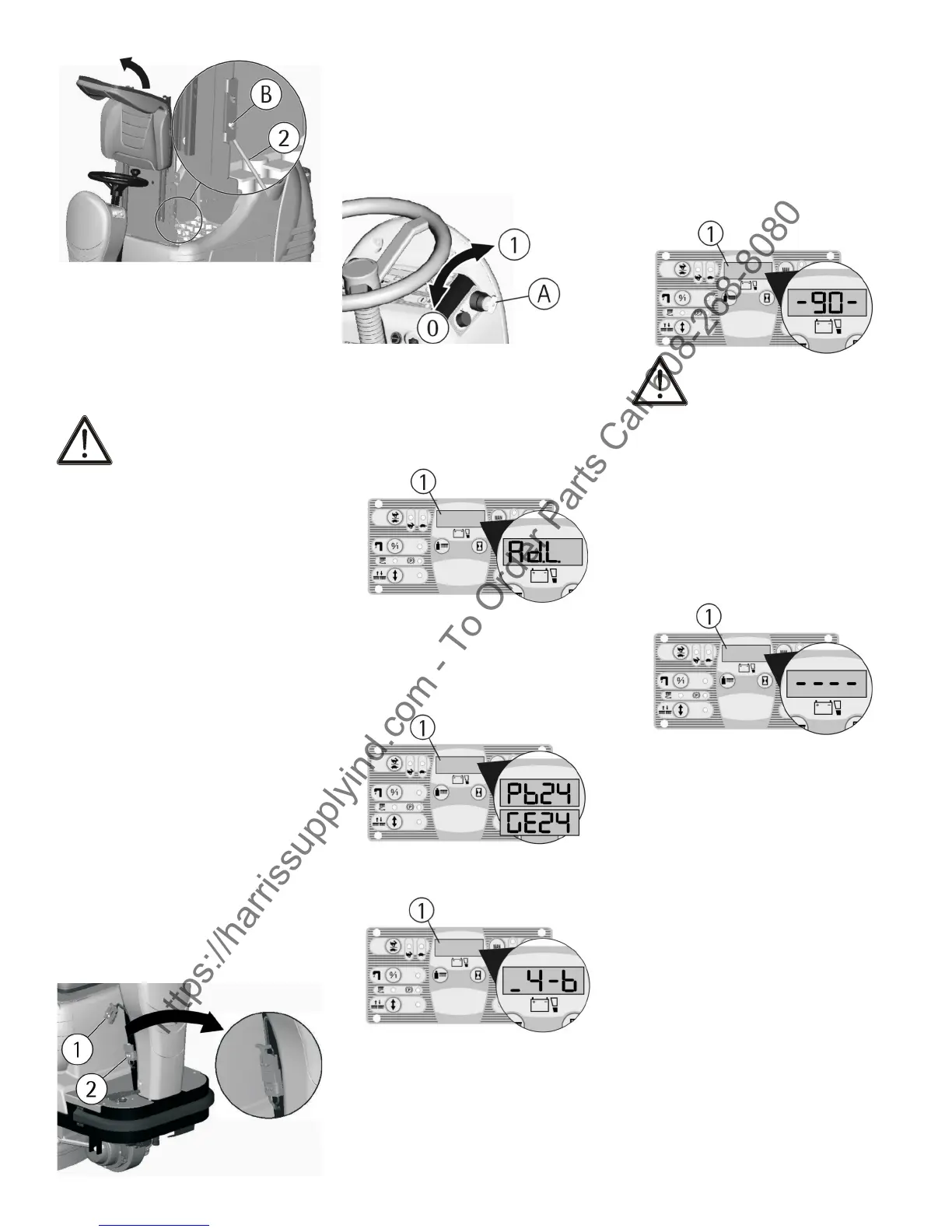

BATTERIES CHARGE LEVEL INDI-
CATOR
To start any function of the machine,
it is necessary to rotate clockwise the
key switch (A). Rotating it counter-
clockwise any function will be switched
off.
WHEN THE MACHINE IS SWITCHED
ON, ON THE DISPLAY (1) APPEAR
IN ORDER THE FOLLOWING INFOR-
MATION:
1. The machine model (for example
AdL).
2. The setting of the battery check
card which can be: GE 24 (check
card set for GEL batteries). or
Pb 24 (check card set for lead batter-
ies).
3. The version of the software pro-
gramme of the card (for example 4-6).
4. The batteries charge level indica-
tor is digital and remains xed on the
display. The battery charge level starts
from -100-, which indicates the 100%
of the total charge and decreases
from 10 to 10. When the charge
level reaches -20-, the display starts
blinking, so you are about the end of
working.
ATTENTION:
When the indication -10- appears
blinking, automatically the brushes
stop, while the suction continues to
work. When there are four lines blink-
ing, the suction will also stop auto-
matically. The traction system remains
functioning to enable movement to
transfer the machine to the place
provided for the tank emptying and for
the recharge of the batteries.
SETTING OF THE BATTERY CHECK
CARD
The setting of the battery check card
can be:
GE 24 (check card set for GEL batter-
ies).
or
Pb 24 (check card set for lead batter-
ies).
The machine is supplied with the bat-
tery check card set for the installed
batteries. To modify this setting, it is
necessary to:
1. Switch the machine off and then
back on.
2. Immediately after having switched
on, when on the display (1) the writ-
ing Pb24 appears, press and hold
the push buttons (2) and (3) until the
display starts to blink.
3. When the display starts to blink, re-
lease the push buttons (2) and (3) and
press once the push button (3).
