7

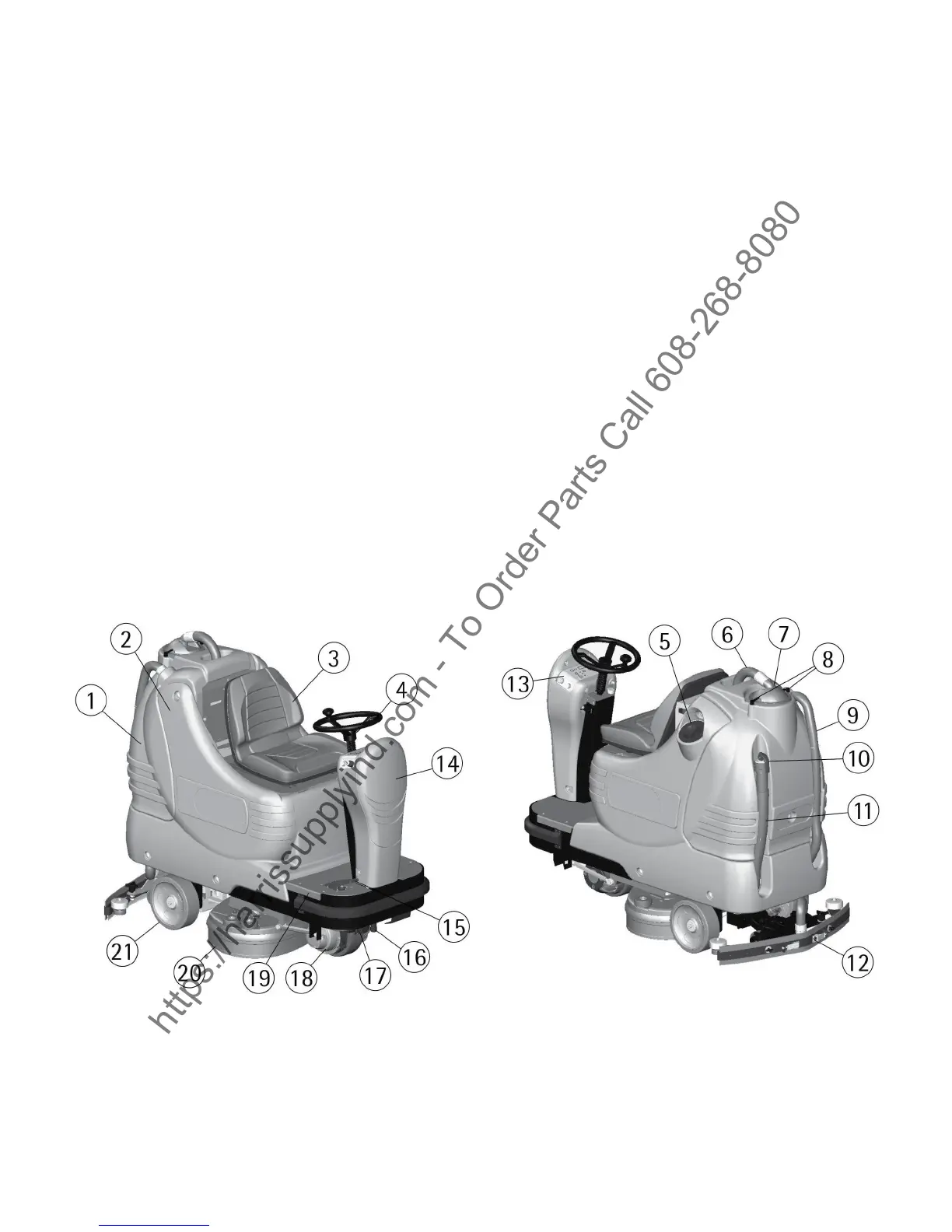

LEGEND MACHINE
1 RECOVERY TANK 11 EXHAUST HOSE RECOVERY TANK
2 SOLUTION TANK 12 SQUEEGEE ASSEMBLY
3 SEAT 13 CONTROL PANEL
4 DRIVE WHEEL 14 ELECTRICAL LAYOUT COVER
5 CAP FOR DETERGENT SOLUTION 15 ACCELERATOR PEDAL
6 SUCTION HOSE 16 SOLUTION DRAIN PLUG
7 SUCTION COVER 17 DETERGENT SOLUTION OUTER FILTER
8 BLOCKING LEVERS SUCTION COVER 18 TRACTION MOTOR WHEEL
9 SQUEEGEE HOSE 19 BOTTOM PLATE
10 RECOVERY TANK HOSE PLUG 20 BRUSHES BASE GROUP
21 REAR WHEELS
