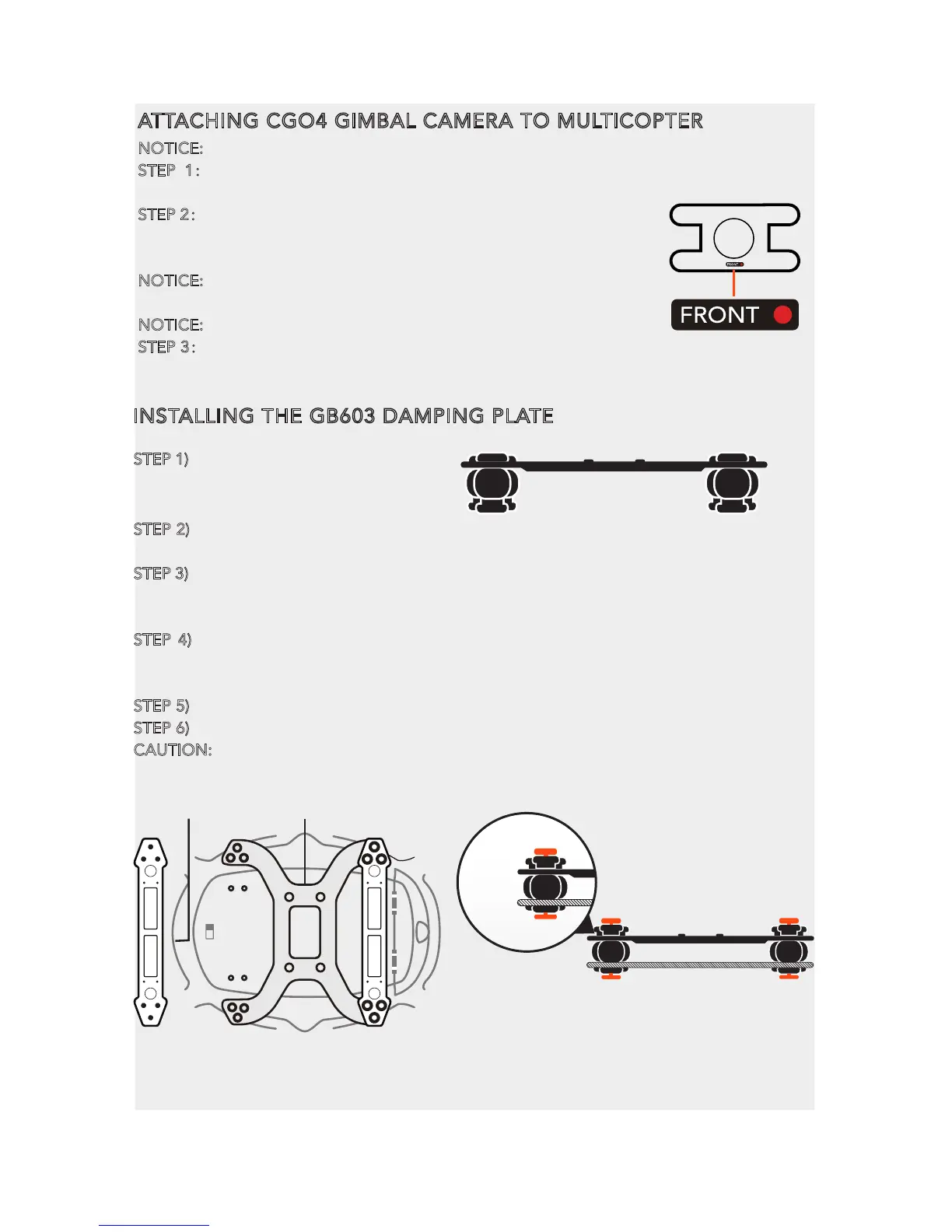

ATTACHING CGO4 GIMBAL CAMERA TO MULTICOPTER
NOTICE: Remove the fixed foam pad from the CG04 gimbal camera before proceeding.
STEP 1：Insert the gimbal connection cord to the inner side of gimbal damping plate
(relative to the direction of H920 power connection port).
STEP 2：Mount the gimbal thumb screws and lock washers (4 pcs) to
the gimbal and rotate the screws until they’re secured into the gimbal
damping plate.
NOTICE: The front of the gimbal should be installed in the direction of
the nose of H920.
NOTICE: Use the dedicated lock washers when rotating the screws.
STEP 3：Connect the gimbal power cord to H920 gimbal connection port.
INSTALLING THE GB603 DAMPING PLATE
STEP 1) Remove the damping carbon plate
on the front of the aircraft by disassem-
bling the screws.
STEP 2) Plug the damping balls at the four corners (3 balls at each corner, 12 balls in total)
on the damping plate.
STEP 3) Place the damping plate right below the aircraft body and above the other damping
carbon plate, make sure the flat surface facing towards the aircraft body and concave-con-
vex surface towards the carbon plate.
STEP 4) Re-install the damping carbon plate and make sure the Damp Carbon Plate is
under the Damping Plate. Make sure the damping balls aiming at the corresponding holes
on the damping carbon plate.
STEP 5) Plug all damping balls into the 12 holes on the damping carbon plate.
STEP 6) Screw the two dowels on the diagonal damping balls to fix all the damping device.
CAUTION: Make sure the damping plate is installed correctly, otherwise it might fall off!
Damping Plate
Damping Carbon Plate
Damping Plate
Dowel
Rubber
Damper
Damping Carbon Plate
Damping Plate
