3
Cutting the Holes for the
V ents
No Parts Required
Procedure

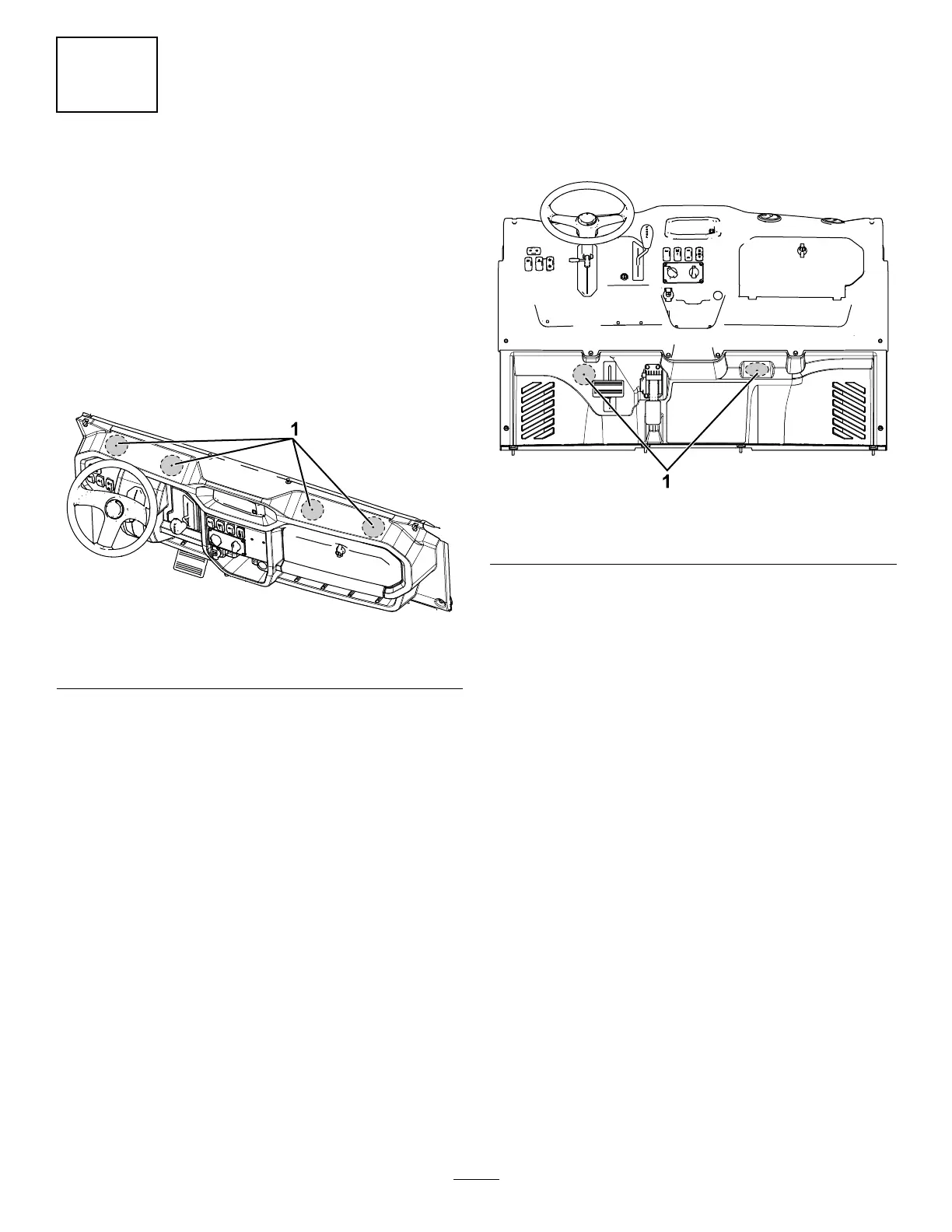

1. Locate the 4 drill pilot dimples on the top of the
dashboard ( Figure 1 1 ) and drill 4 holes (76 mm
or 3 inches) directly over the pilot dimples.
Note: Use a 76 mm (3 inch) hole saw to drill
the vent holes.
g398901
Figure 1 1
1. Drill pilot dimples
2. Locate the 2 drill pilot dimples on the oorboard
( Figure 12 ) and drill 2 holes (76 mm or 3 inches)
directly over the pilot dimples.
Note: It is recommended to use a 76 mm (3
inch) hole saw to drill the vent holes.
3. Remove the burrs from the holes.
g398912
Figure 12
1. Drill pilot dimples
7
