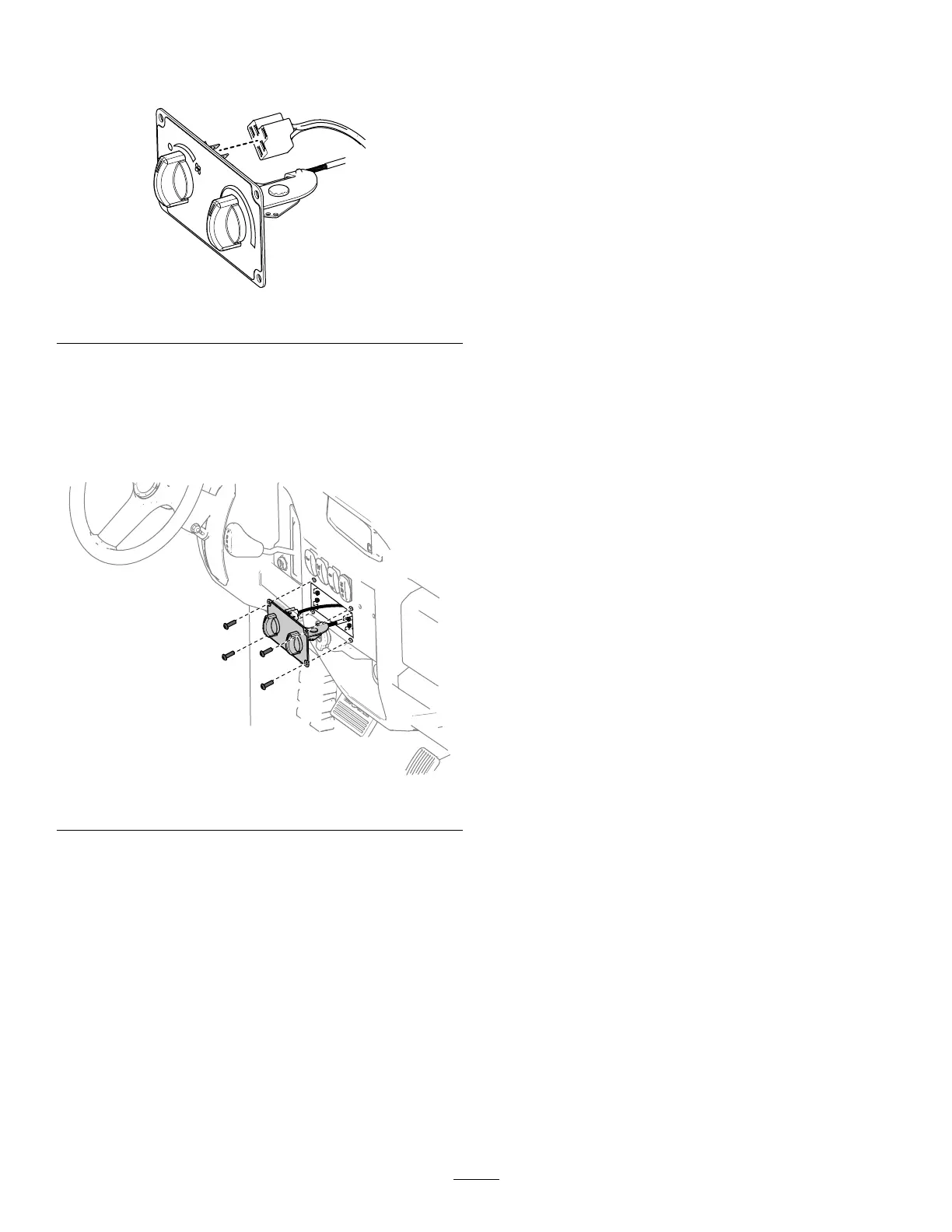

10. Plug the 5-terminal connector on the kit wire
harness into the back of the airow switch
( Figure 9 ).
g430409
Figure 9
1 1. Route the control cable, water valve, and wire
harness through the dashboard and secure the
control panel assembly onto the dashboard with
4 button-head bolts (5/8 inch) and 4 locknuts
(#10-24); refer to Figure 10 . T orque the bolts to
3 N∙m (30 in-lb).
g430435
Figure 10
6
