8
3353-548 Rev B

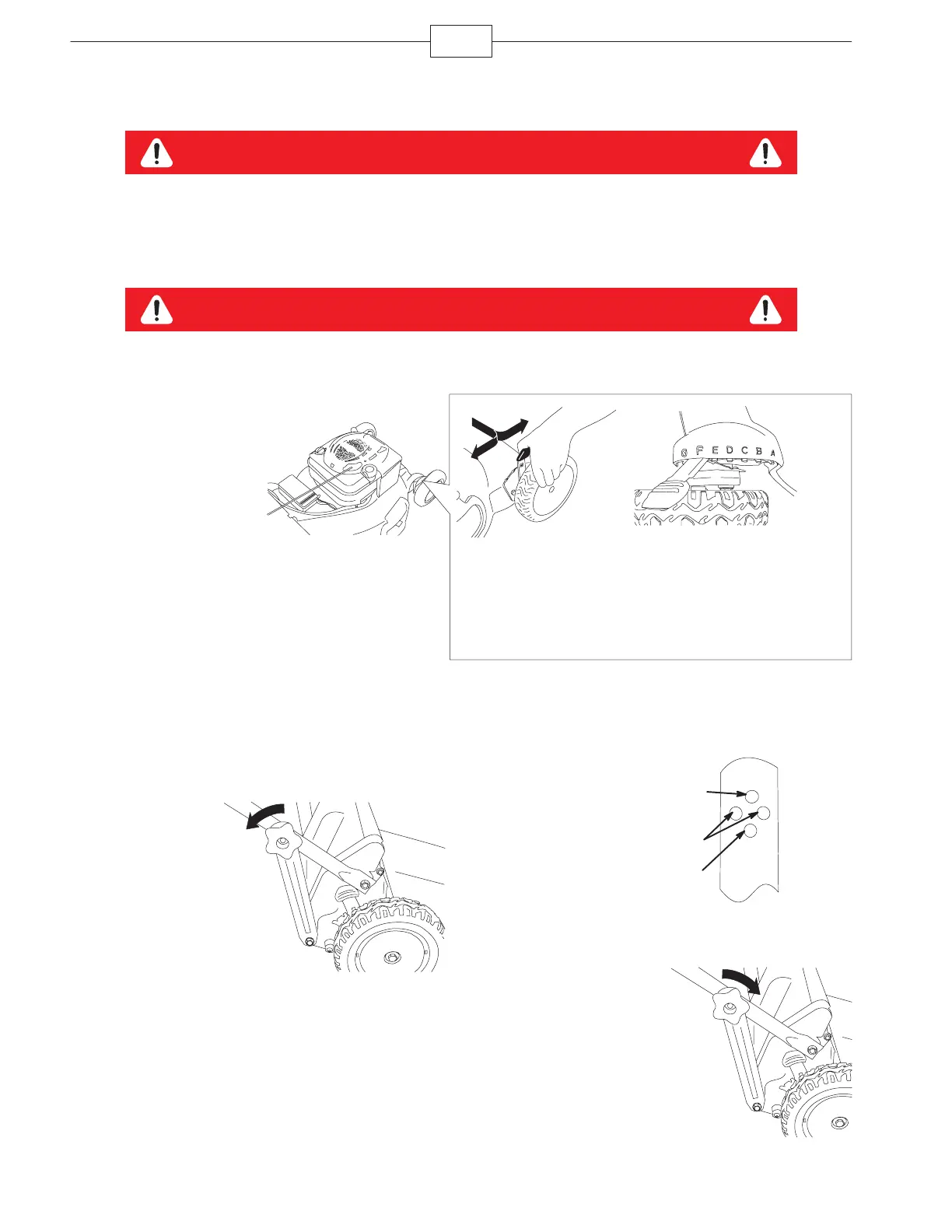

Adjusting the Cutting Height
Warning
Adjusting the cutting height may bring you into contact with the moving blade, causing
serious injury.
S Stop the engine and wait for all moving parts to stop.
S Do not put your fingers under the housing when adjusting the cutting height.
Caution
If the engine has been running, the muffler will be hot and can severely burn you.
Keep away from the hot muffler.
Adjust the cutting height
as desired. Set all four
wheels to the same
height.
Note: To raise the mower,
move all 4 cutting height
levers forward; to lower
the mower, move them all
rearward.
m-5629a
m-8098
m-8100
E= 3-1/4 inch (8 cm)
F= 3-3/4 inch (10 cm)
G= 4-1/4 inch (11 cm)
A= 1-1/4 inch (3 cm)
B= 1-3/4 inch (4 cm)
C= 2-1/4 inch (6 cm)
D= 2-3/4 inch (7 cm)
Adjusting the Handle Height
You may raise or lower the handle to a position
comfortable for you.
1. Remove the
lower handle knobs
and lock washers
that attach the
handle brackets to
the lower handle
ends.
m-8097
2. Insert the bolt
through the hole in each
of the handle brackets
that sets the handle to
the desired position.
Note: A is the
highest position; B
(either hole) is the
middle position; and
C is the lowest
position.
A
B
C
m-8101
3. Install the lock
washers and lower
handle knobs, and
tighten the knobs as
tight as you can by
hand.
Note: Insert the lock
washer between the
bracket and the
knob.
m-8097
