Toro 20955 - Replacing the Fuse; Lubricating the Wheel Gears

ReplacingtheFuse
ForElectric-StartModels
Ifthebatterydoesnotchargeortheenginedoesnot
runwiththeelectricstarter,thefusemaybeblown.
Replaceitwitha40Aplug-intypefuse.
1.Raisethereardeectorandlocatethebattery
compartment(Figure36).

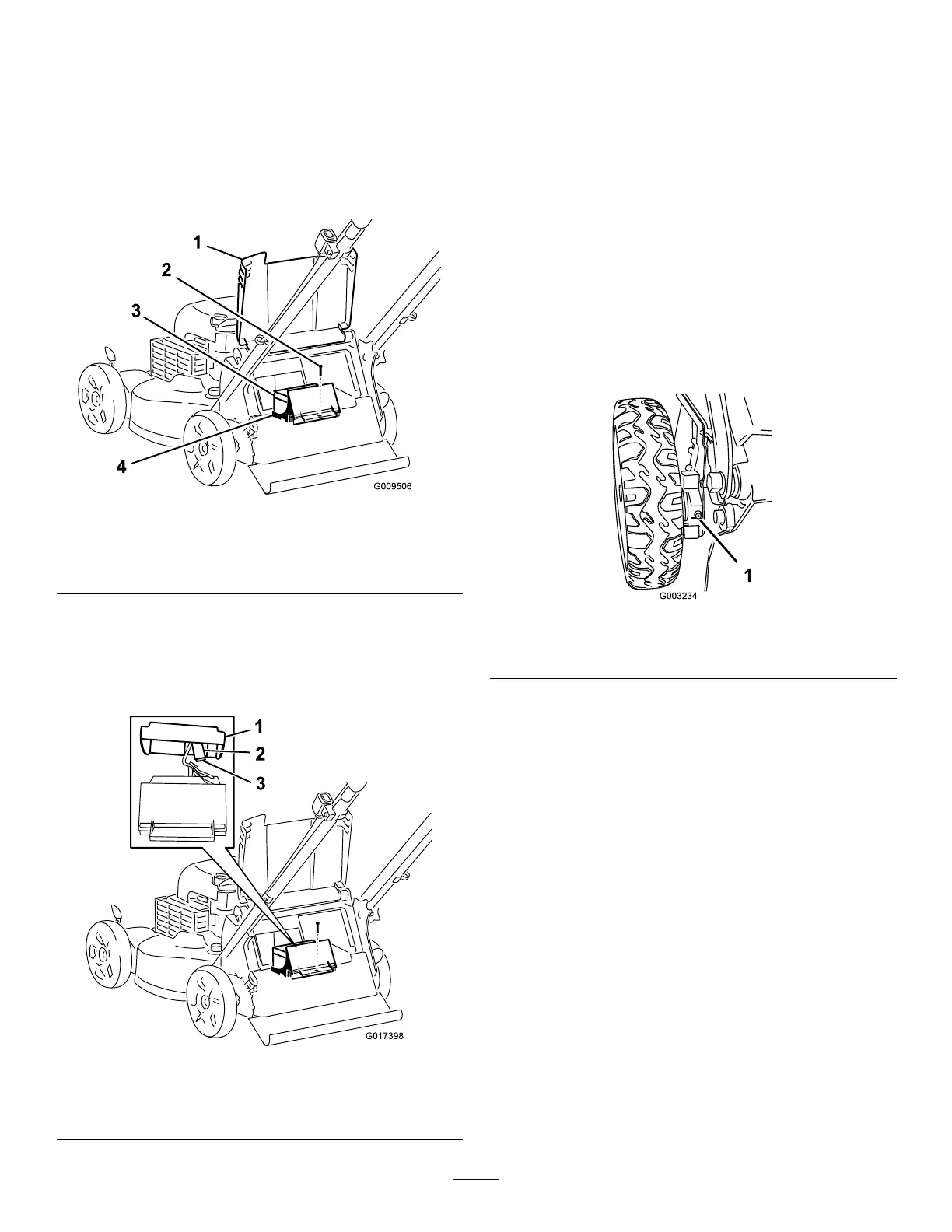

g009506
Figure36
1.Reardeector
3.Battery
2.Screw
4.Batterycompartment
2.Wipeawayanydebrisfromthebattery
compartmentarea.
3.Removethescrewthatsecuresthebattery
compartment,pulloutthebattery,andlocatethe
fuse(Figure37).
g017398
Figure37
1.Cover
3.Fuse
2.Fuseholder
4.Replacethefuseinthefuseholder(Figure37).
Note:Yourmachinecomeswithasparefusein
thebatterycompartment.
5.Installthebatterycompartmentwiththescrew
thatyouremovedinstep3.
6.Installthecoveroverthebatterycompartment.
7.Lowerthereardeector.
LubricatingtheWheel
Gears
ServiceInterval:Every25hours
1.Wipethegreasettingsjustinsidetherear
wheelswithacleanrag(Figure38).
g003234
Figure38
1.Greasetting
2.Installagreasegunontoeachttingandgently
apply2or3pumpsofNo.2lithiumgrease.
