Toro 20955 - Adjusting the Self-Propel Drive

AdjustingtheSelf-Propel
Drive
Wheneveryouinstallanewself-propelcableorif
theself-propeldriveisoutofadjustment,adjustthe
self-propeldrive.
1.Turntheadjustmentknobcounterclockwiseto
loosenthecableadjustment(Figure41).

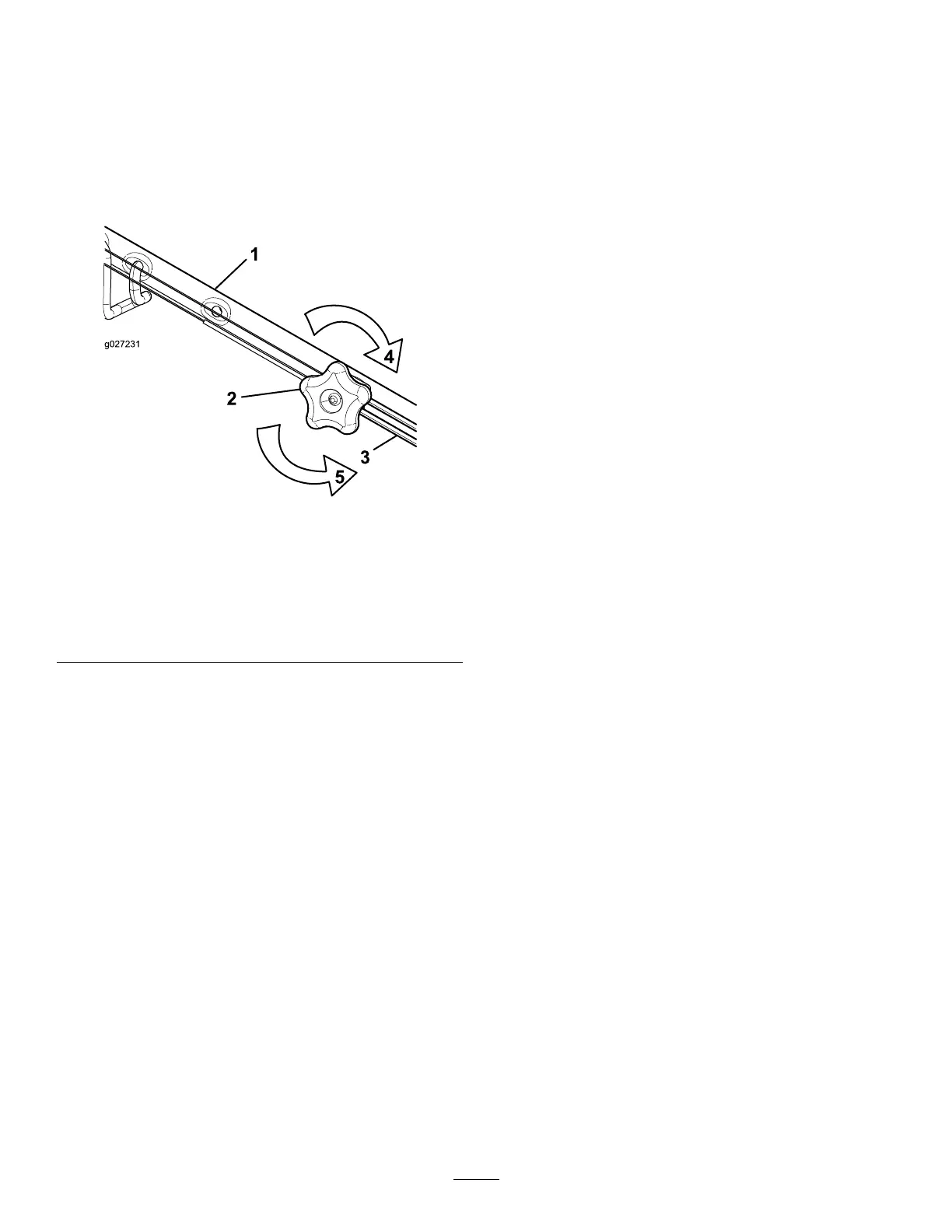

g027231
Figure41
1.Handle(leftside)
4.Turntheknobclockwiseto
tightentheadjustment.
2.Adjustmentknob5.Turntheknob
counterclockwiseto
loosentheadjustment.
3.Self-propel-drivecable
2.Adjustthetensiononthecable(Figure41)by
pullingitbackorpushingitforwardandholding
thatposition.
Note:Pushthecabletowardtheengineto
increasethetraction;pullthecableawayfrom
theenginetodecreasethetraction.
3.Turntheadjustmentknobclockwisetotighten
thecableadjustment.
Note:Tightentheknobrmlybyhand.
