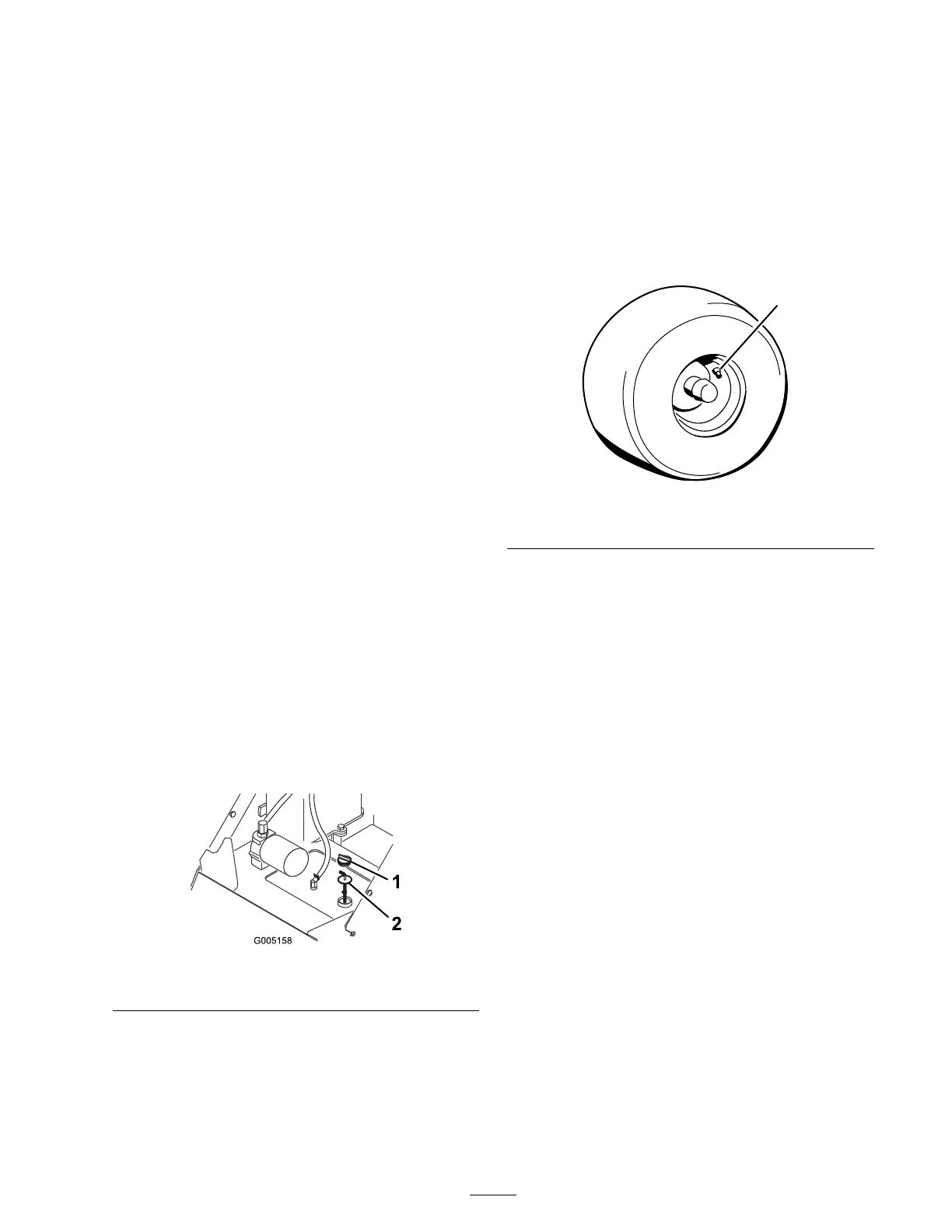

Toro 22311 - Installing and Removing Attachments

19
Installing the Cylinder Locks
1. Start the engine.
2. Raise the loader arms to the fully raised position.
3. Stop the engine.
4. Position a loader arm cylinder lock over each lift
cylinder rod (Fig. 12).
5. Secure each loader arm cylinder lock with a clevis pin
and cotter pin (Fig. 12).
m–4398
2
3
1
4
5
Figure 12
1. Cylinder lock
2. Lift cylinder
3. Hairpin cotter
4. Clevis pin
5. Lift cylinder rod
6. With the engine off, lower the loader arms.
Removing/Storing the Cylinder Locks
1. Start the engine.
2. Raise the loader arms to the fully raised position.
3. Stop the engine.
4. Remove the clevis pin and cotter pin securing each
cylinder lock.
5. Remove the cylinder locks.
6. Lower the loader arms.
7. Install the cylinder locks over the hydraulic hoses and
secure them with the clevis pins and cotter pins
(Fig. 13).
m–4397
2
1
3
4
1
2
Figure 13
1. Hydraulic hoses
2. Cylinder locks
3. Hairpin cotter
4. Clevis pin
Installing and Removing
Attachments
Connecting an Attachment
Important Use only Toro-approved attachments.
Attachments can change the stability and the operating
characteristics of the traction unit. The warranty of the
traction unit may be voided if used with unapproved
attachments.
Important Before installing the attachment, ensure
that the mount plates are free of any dirt or debris and that
the pins rotate freely. If the pins do not rotate freely,
grease them; refer to Greasing the Traction Unit, page 22.
1. Position the attachment on a level surface with enough
space behind it to accommodate the traction unit.
2. Start the engine.
3. Tilt the attachment mount plate forward.
4. Position mount plate into the upper lip of the
attachment receiver plate (Fig. 14).
m–4055
1
2
Figure 14
1. Mount plate 2. Receiver plate
