G006054
3
2
1
4
5
6

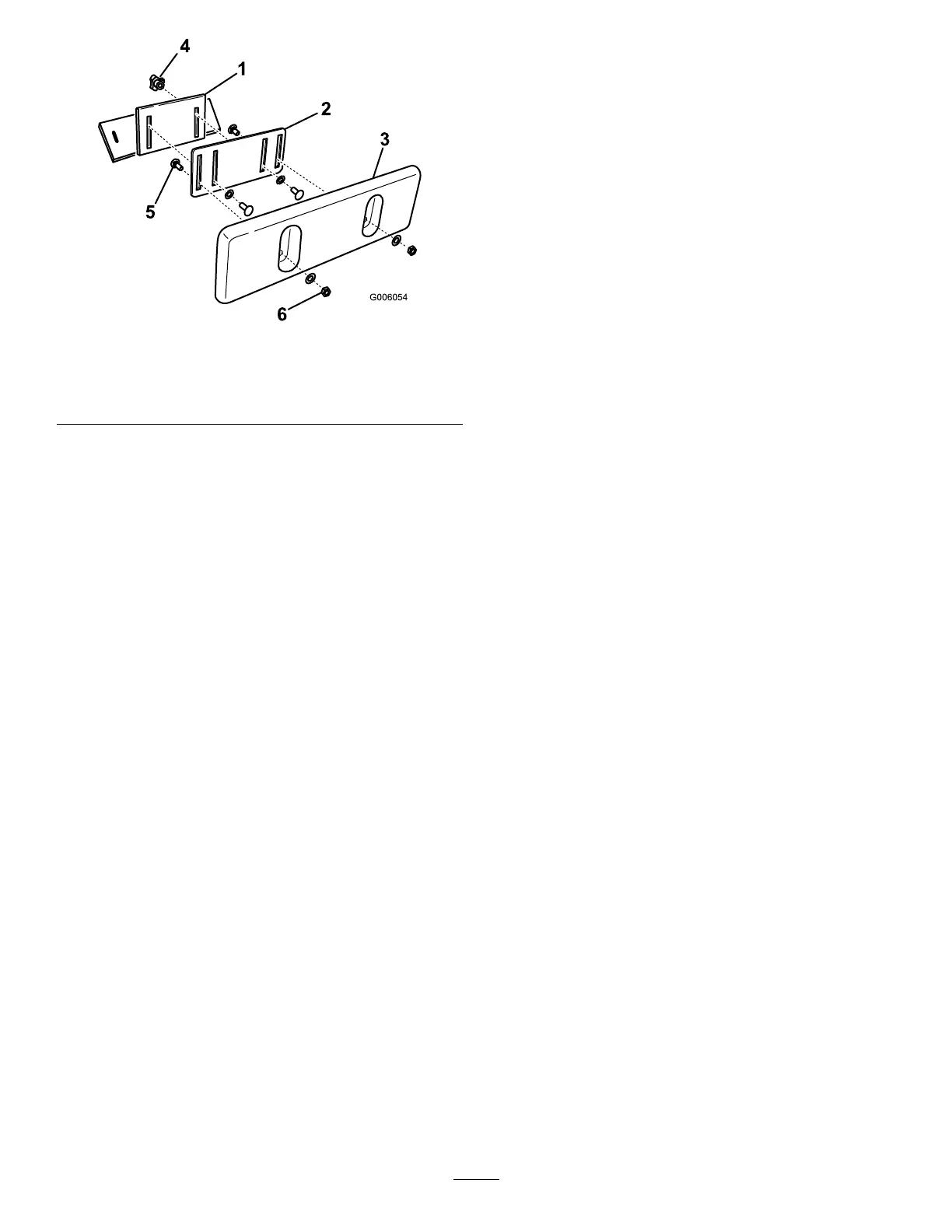

Figure23
1.Thighsupportbracket
4.Knobandatwasher
2.Adjustmentplate
5.Carriagebolt
3.Thighsupportpad
6.Locknutandatwasher
25
