Groundsmaster 4100--D/4110--D Hydraulic SystemPage 4 -- 3
General Information
Operator’s Manual
The Operator’s Manual provides information regarding
the operation, general maintenance and maintenance
intervalsforyourGroundsmastermachine.Refertothat
publicationforadditionalinformationwhenservicingthe
machine.
Check Hydraulic Fluid
Your Groundsmaster hydraulic system is designed to
operate on anti--wear hydraulic fluid. The reservoir
holds approximately 8 U.S. gallons (30.3 liters) of hy-
draulic fluid. Check level of hydraulic fluid daily. See
Operator’s Manual for fluid level checking procedure
and hydraulic oil recommendations.

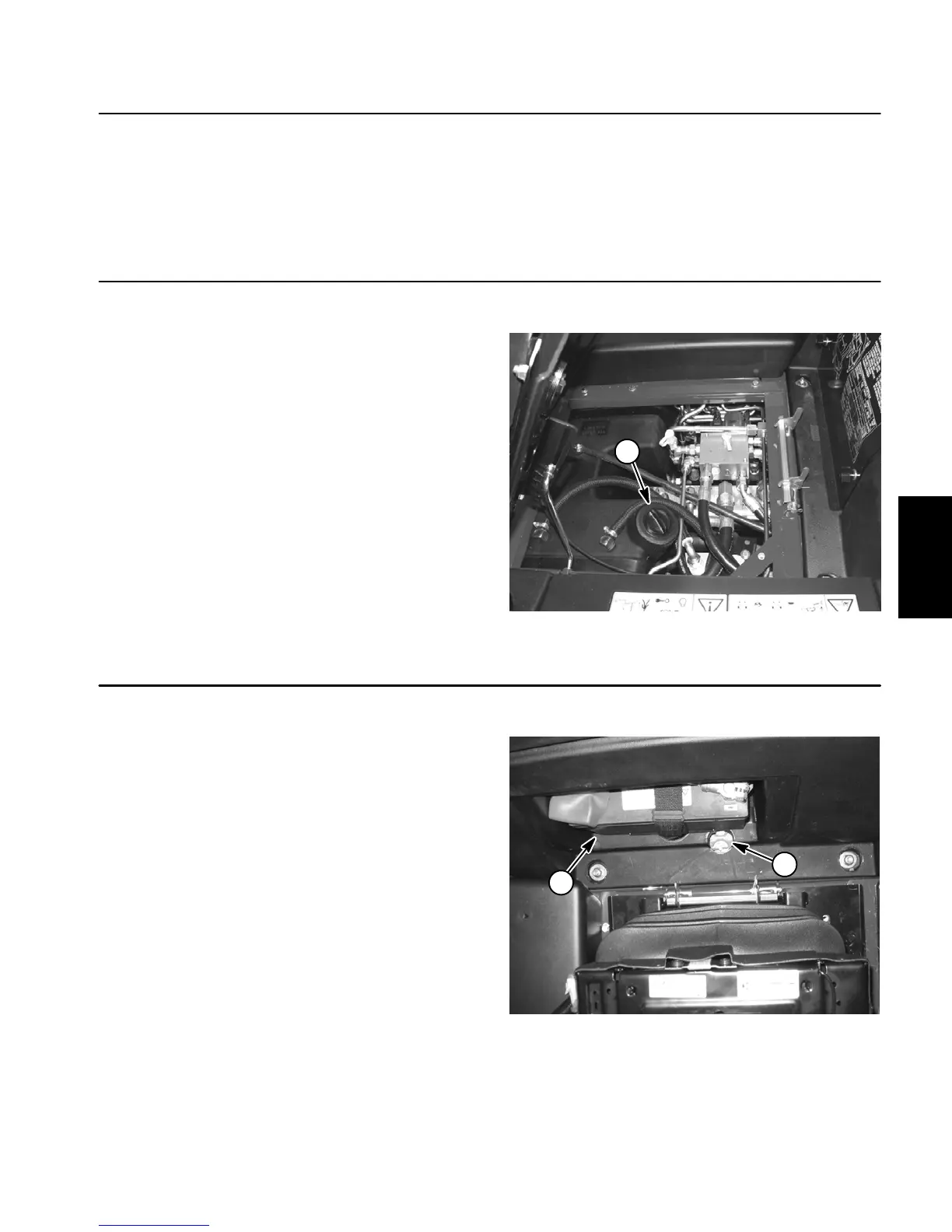

1. Hydraulic reservoir cap
Figure 1
1
Towing Traction Unit
IMPORTANT: If towing limits are exceeded, severe
damage to the piston pump may occur.
If it becomes necessary to tow (or push) the machine,
tow (or push) in a forward direction only and at a
speedbelow3mph(5kph).Thepiston(traction)pump
isequippedwithaby--passvalvethatneedstobeturned
90
o
for towing. See Operator’s Manual for Towing Pro-
cedures.
Figure 2
1
1. By--pass valve 2. Battery
2
Hydraulic
System
