2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Raisethefrontofthemachineandsupportitonjack
stands.
4.Removethefastenerssecuringeachrolleronyour
mowerdeckandmovetherollersupordownas
desired;refertoFigure20throughFigure24as
applicableforyourmower.

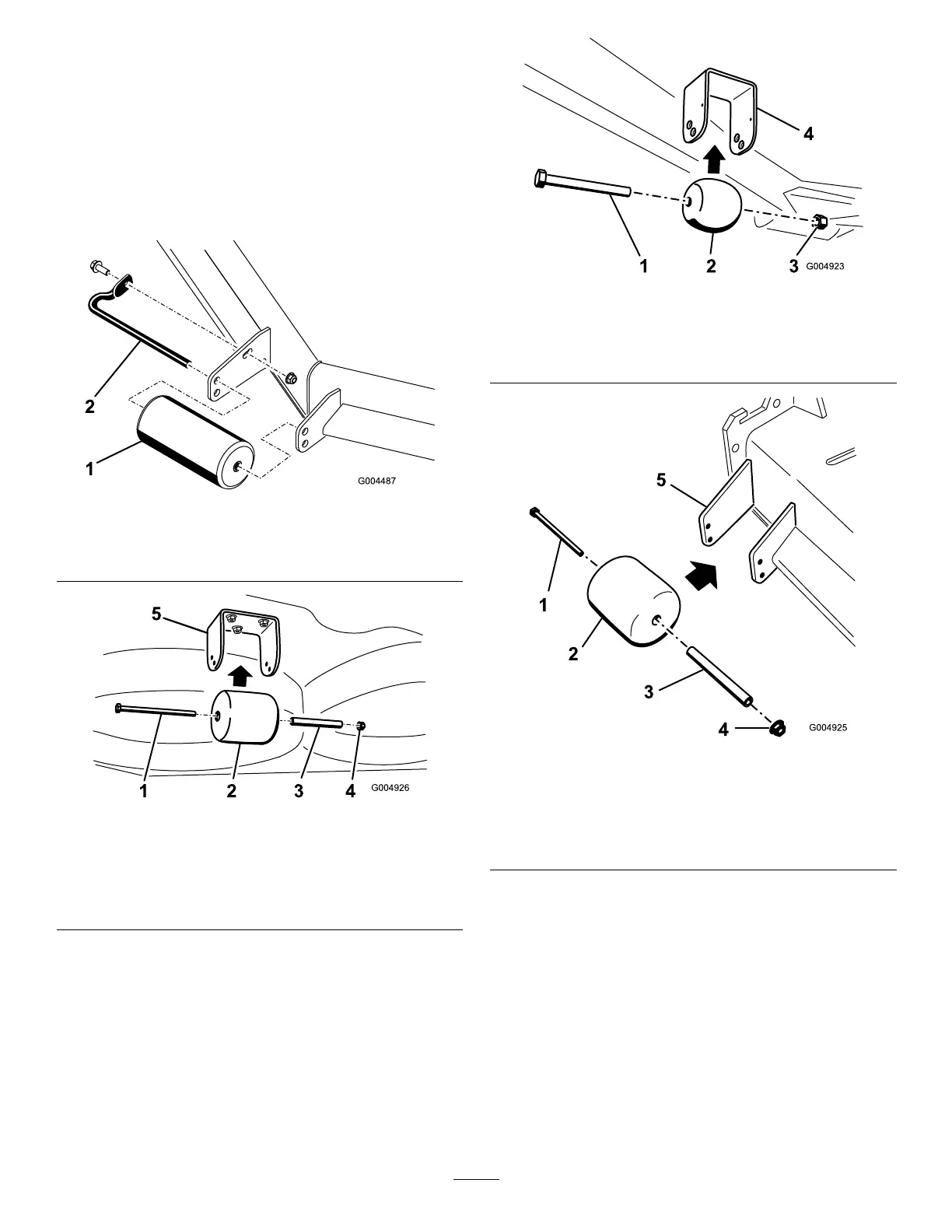

Figure20
AllMowerDecks
1.Frontroller
2.Rollershaft
Figure21
GuardianMowerDecksOnly
1.Bolt4.Nut
2.Rearunder-deckroller5.Bracket
3.Spacer
Figure22
GuardianMowerDecksOnly
1.Bolt3.Nut
2.Frontunder-deckroller4.Bracket
Figure23
Side-dischargeMowerDecksOnly
1.Bolt4.Nut
2.Chute-sideroller
5.Bracket
3.Spacer
