Toro 30534N - Changing the Hydraulic Oil and Filter

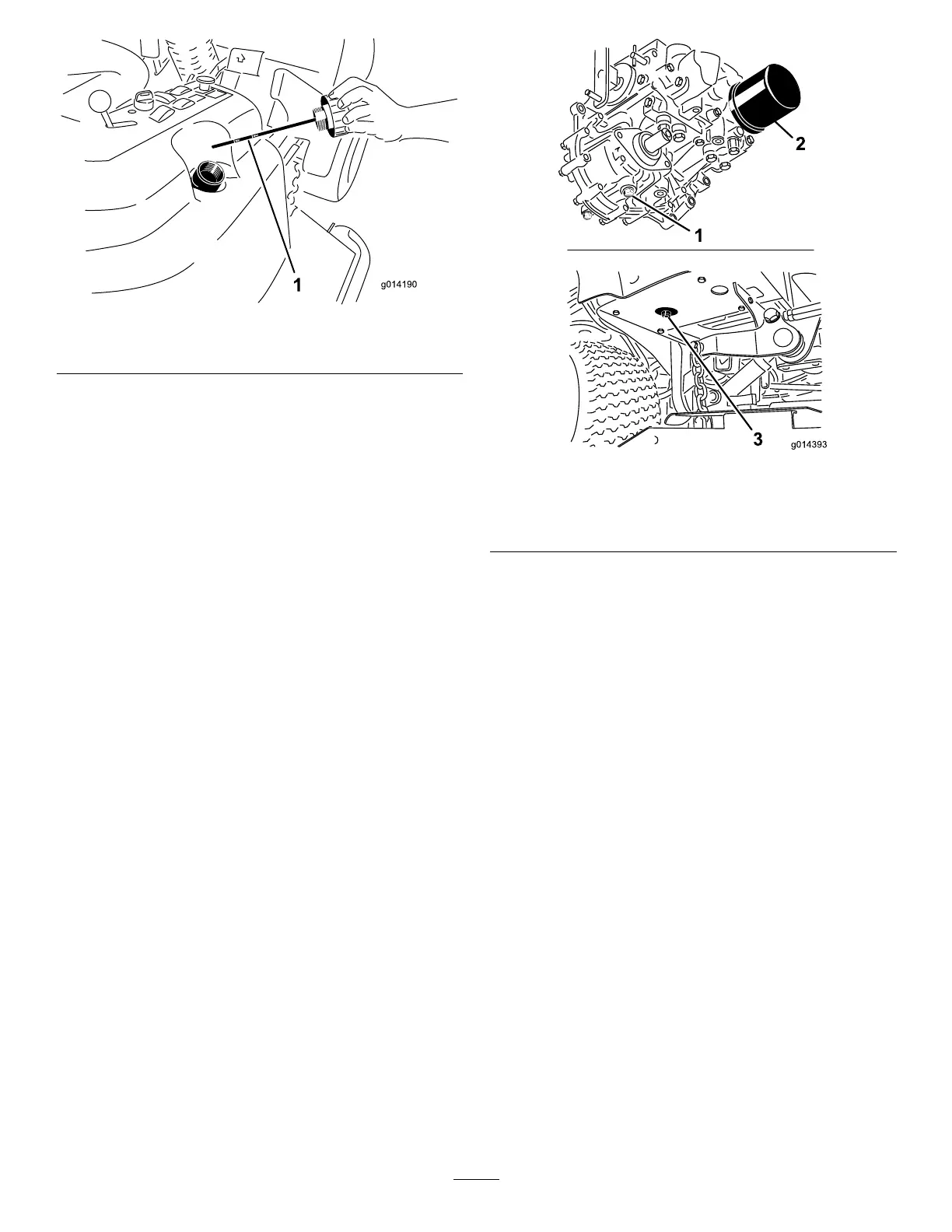

Figure62
1.Dipstick
ChangingtheHydraulicOil
AndFilter
ServiceInterval:Aftertherst200hours
Every800hours
1.DisengagethePTO,releasethetractionpedaltothe
neutralpositionandsettheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Placealargepanunderthehydraulicreservoirand
transmissioncaseandremovetheplugs,drainingallof
thehydraulicuid(
Figure63).
0
Figure63
1.Transmissioncasedrain
plug
3.Hydraulicreservoirdrain
plug
2.Filter
4.Cleantheareaaroundthehydraulicoillterand
removeit(
Figure63).
5.Immediatelyinstallanewhydraulicoillter.
6.Installthehydraulicreservoirandtransmissioncase
drainplugs.
7.Fillthereservoirtotheproperlevel(approximately18
quarts[17l]);refertoCheckingtheHydraulicFluid.
8.Starttheengineandcheckforoilleaks.Allowthe
enginetorunforaboutveminutes,thenshutitoff.
9.Aftertwominutes,checkthelevelofthehydraulic
uid;refertoCheckingtheHydraulicFluid.
54
