CleaningtheAirConditioning
Coil
ServiceInterval:Every250hours(Cleanmorefrequentlyin
extremelydustyordirtyconditions)
1.Stoptheengineandremovethekey.
2.Removethe4screwssecuringthefanandthe
condensercovertothefanmount(Figure73).
3.Carefullyliftthefanoutofthecondensercover.

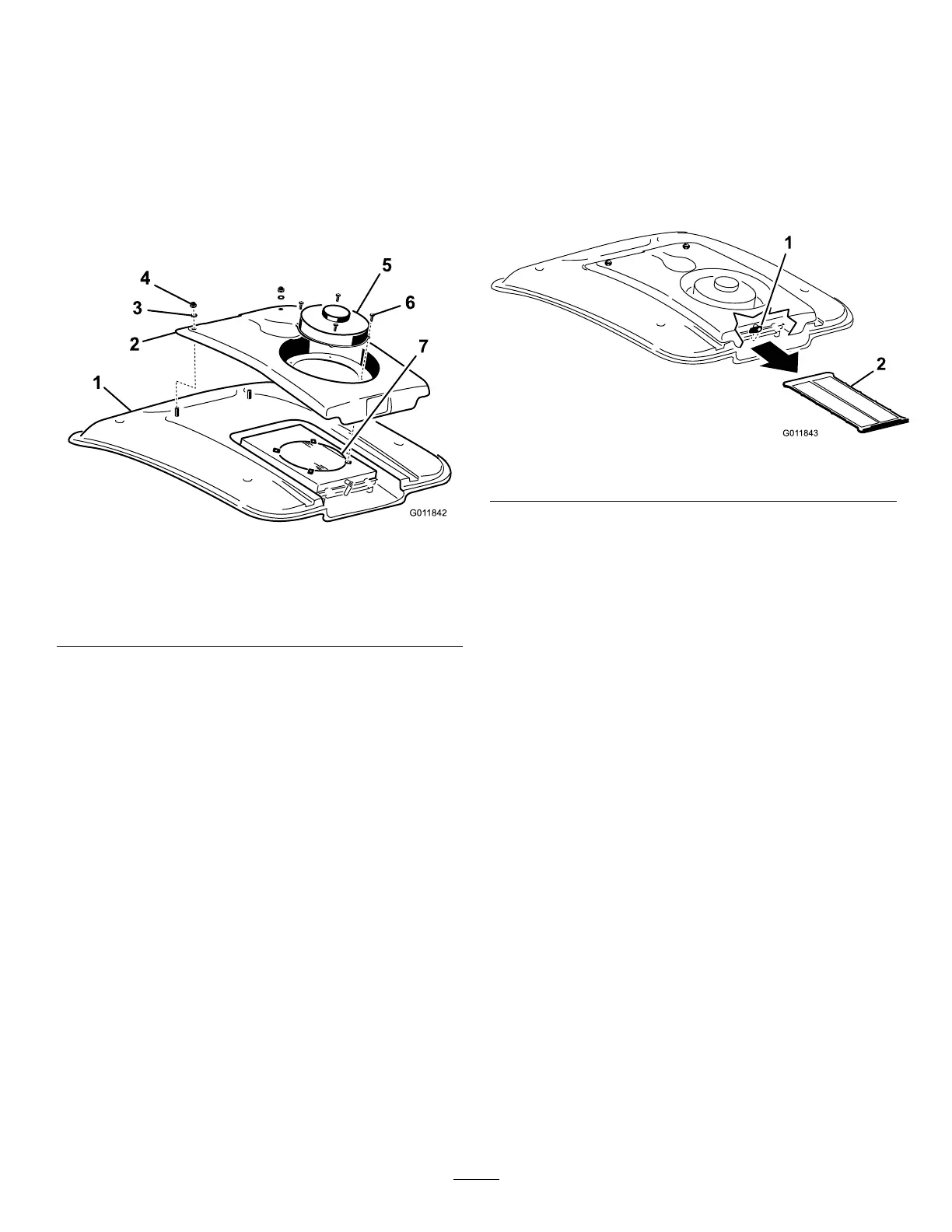

Figure73
1.Cabinroof
5.Fan
2.Condensercover6.Screw
3.Washer7.Airconditioningcondenser
4.Nut
4.Removethetwonutsandwasherssecuringthefrontof
thecondensercovertothecabroof(Figure73).
5.Unplugthefanwireconnectorslocatedbetweenthe
coverandroof.
6.Removethefanandthecover.
7.RemoveandcleantheA/CCondenserScreen.Refer
toCleaningtheA/CCondenserScreen.
8.Cleantheairconditioningcondenserthoroughlywith
compressedair(Figure73).
9.ReplacetheA/CCondenserScreen.
10.Replacethecondensercoverandfan.Makesureto
connectthefanwiresbeforesecuringthecondenser
cover.
CleaningtheA/CCondenser
Screen
ServiceInterval:Every50hours(Cleanmorefrequentlyin
extremelydustyordirtyconditions)
1.Stoptheengineandremovethekey.
2.Ontherearofthefanmount,rotatethelatchtothe
side(Figure74).
Figure74
1.Latch
2.A/Cscreen
3.SlidetheA/Cscreenoutfromundertheair
conditioningcoil(Figure74).
4.Cleanthescreenthoroughlywithcompressedair
(Figure74).
5.Slidethescreenintothechannelsundertheair
conditioningcoilandrotatethelatchdownward.
