Toro 30607 - Lubrication; Greasing the Bearings and Bushings

Lubrication
GreasingtheBearingsand
Bushings
Themachinehasgreasettingsthatmustbe
lubricatedregularlywithNo.2GeneralPurpose
LithiumBaseGrease.Ifthemachineisoperated
undernormalconditions,lubricateallbearings
andbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.
Thegreasettinglocationsandquantitiesare:
TractionUnit
ServiceInterval:Every50hours

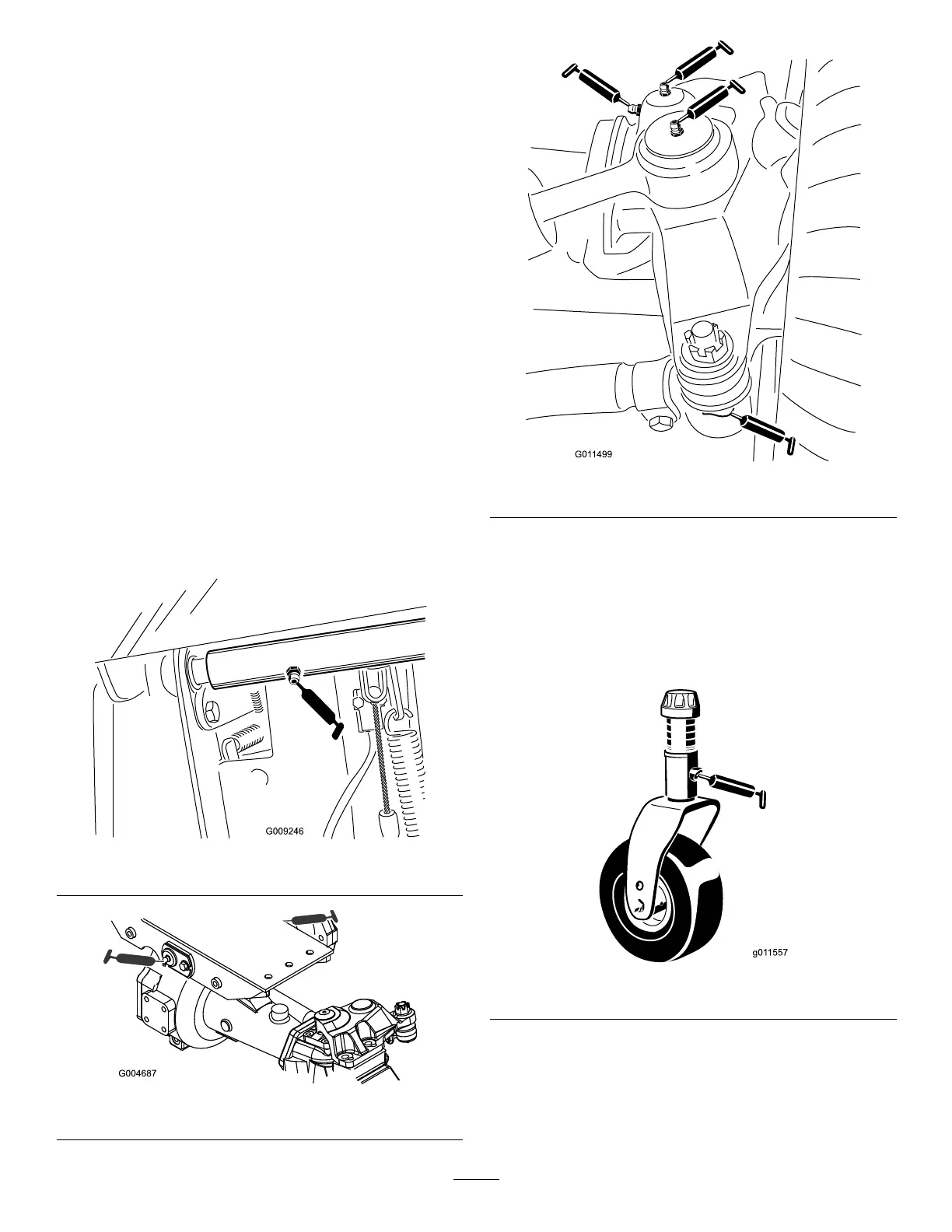

•Brakepedalpivotshaftbearings(2)(Figure59)
•Frontandrearaxlepivotbushings(2)(Figure60)
•Steeringcylinderballjoints(2)(Figure61)
•Tierodballjoints(2)(Figure61)
•Kingpinbushings(2)(Figure61).
Thetopttingonthekingpinshould
onlybelubricatedannually(2pumps).
g009246
Figure59
g004687
Figure60
g011499
Figure61
FrontCuttingUnit
•Castorforkshaftbushings(2)(Figure62)
•Spindleshaftbearings(3)(locatedunderthe
pulley)(Figure63)
•Idlerarmpivotbushings(2)(Figure63)
g011557
Figure62
