DriveSystem
Maintenance
AdjustingtheTraction
PedalAngle
Thetractionpedaloperatinganglecanbeadjusted
foroperatorcomfort.
1.Loosenthetwonutsandboltssecuringtheleft
sideofthetractionpedaltothebracket(Figure
88).

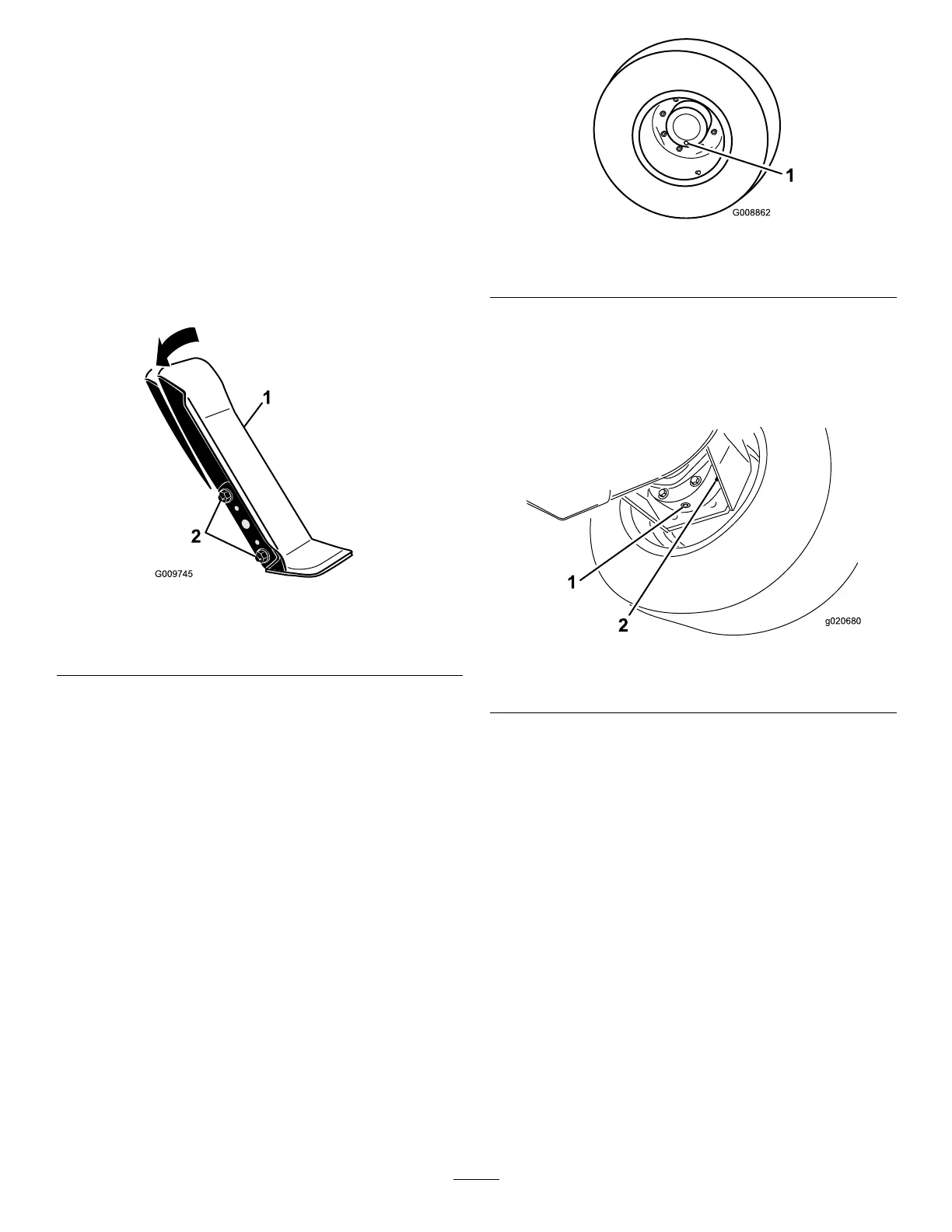

g009745
Figure88
1.Tractionpedal2.Mountingnutsandbolts
(2)
2.Pivotthepedaltothedesiredoperatingangle
andtightenthenuts(Figure88)˙.
ChangingthePlanetary
GearDriveOil
ServiceInterval:Aftertherst200hours
Every800hours(Oryearly,whichevercomes
rst)
Changetheoilinitiallyafterrst200hoursof
operation.Thereafterchangetheoilevery800hours,
oryearly,whicheveroccursrst.Useahighquality
SAE85W-140gearlube.
1.Withthemachineonalevelsurface,positiona
wheelsothatoneofthecheckplugsisatthe
lowest(6o'clock)position(Figure89).
g008862
Figure89
1.Check/drainplug
2.Placeadrainpanundertheplanetaryhub,
removeplugandallowoiltodrain.
3.Placeadrainpanunderthebrakehousing,
removethedrainplugandallowtheoiltodrain
(Figure90).
g020680
Figure90
1.Drainplug2.Brakehousing
4.Whenalloftheoilhasdrainedfromboth
locations,re-installthepluginthebrake
housing.
5.Rotatethewheeluntiltheopenplugholeinthe
planetaryisatthetwelveo'clockposition.
6.Throughtheopenhole,slowlylltheplanetary
with0.65liter(22ounces)ofhighqualitySAE
85W-140wt.gearlube.
Important:Iftheplanetaryllsbeforethe
0.65liter(22ounces)ofoilisadded,wait
onehourorinstalltheplugandmovethe
machineapproximatelytenfeettodistribute
theoilthroughthebrakesystem.Then,
removetheplugandaddtheremainingoil.
7.Re-installtheplug.
8.Repeattheprocedureontheopposite
planetary/brakeassembly.
