Toro 30686 - Cooling System Maintenance; Cleaning the Air Intake Screen; Cleaning the Cooling System

CoolingSystem
Maintenance
CleaningtheAirIntakeScreen
ServiceInterval:Beforeeachuseordaily
Beforeeachuseremoveanybuild-upofgrass,dirt
orotherdebrisfromthecylinderandcylinderhead
coolingns,airintakescreenonywheelend,and
carburetor-governorleversandlinkage.Thiswillhelp
insureadequatecoolingandcorrectenginespeedand
willreducethepossibilityofoverheatingandmechanical
damagetotheengine.
CleaningtheCoolingSystem
ServiceInterval:Every100hours
Cleantheairintakescreenfromgrassanddebrisbefore
eachuse.
Checkandcleancoolingnsandengineshroudsevery
100hoursoryearly,whichevercomesrst.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removetheairintakescreen,recoilstarterandfan
housing(Figure34).
4.Cleanthedebrisandgrassfromtheengineparts.
5.Installairintakescreen,recoilstarterandfanhousing
(Figure34).

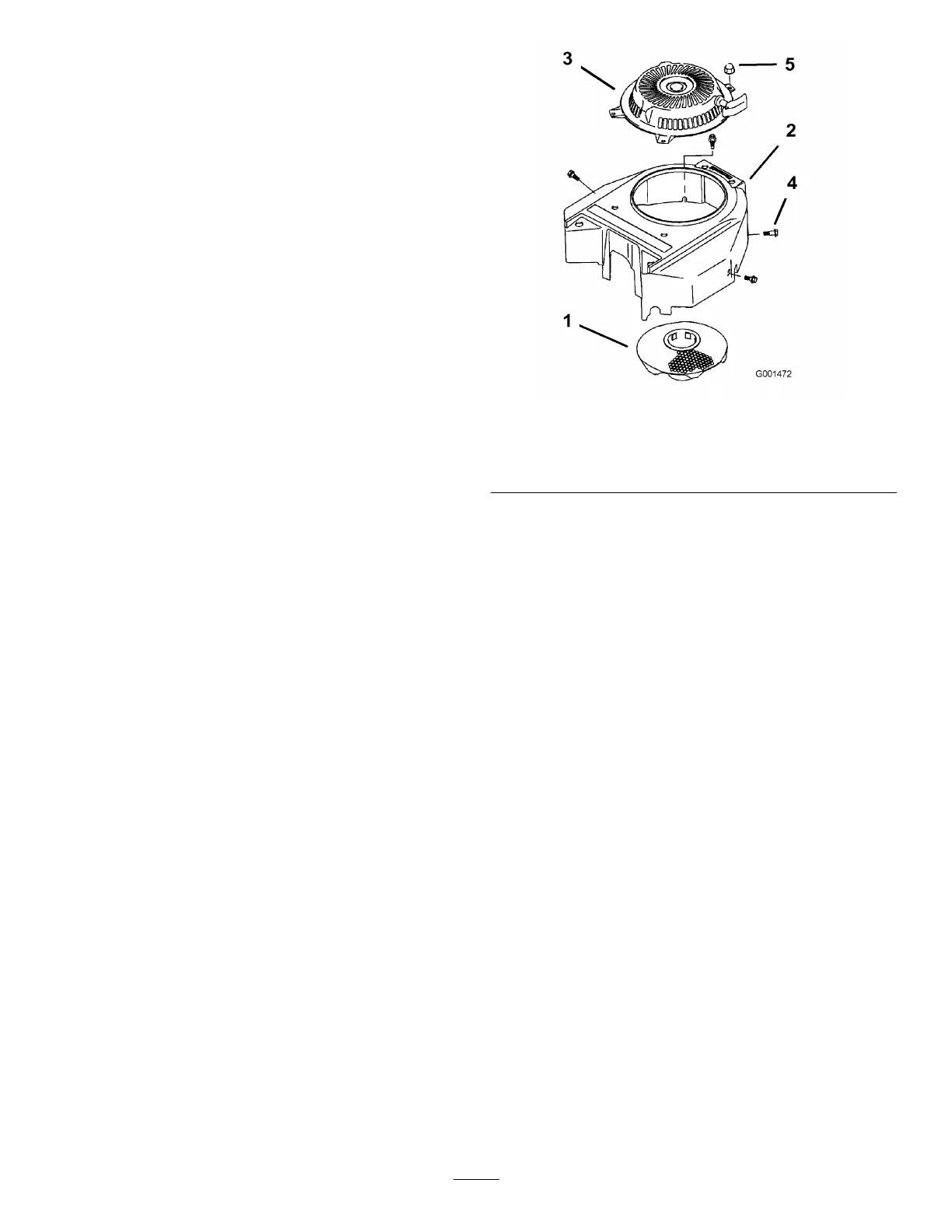

Figure34
1.Airintakescreen4.Bolt
2.Fanhousing5.Nut
3.Recoilstarter
