Toro 31051 - Replacing the Filter of the Fuel;Water Separator

ReplacingtheFilterofthe
Fuel/WaterSeparator
ServiceInterval:Every500hours—Replacethelter
ofthefuel/waterseparator.
RemovingtheFilterElement

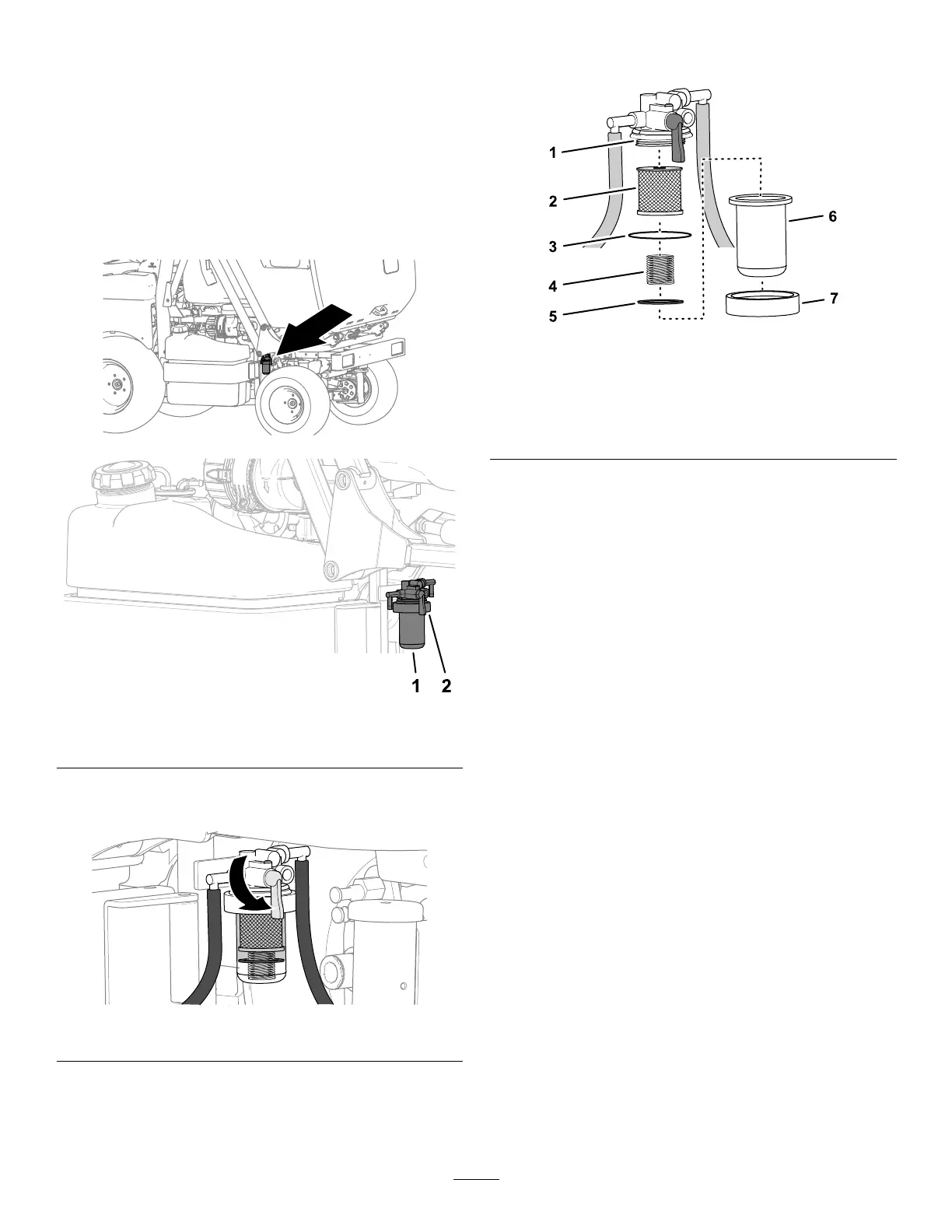

1.Cleantheareaaroundthefuel-lterhead
(Figure69).
g231812
g215504
Figure69
1.Fuel-lterhead
2.Filter
2.Rotatethefuelshutoffvalveforthefuel/water
separatortotheCLOSEDposition(Figure70).
g231811
Figure70
3.Placeadrainpanunderthefuel-lterbowl,
removethebowlnut,andremovethelterbowl
fromthelterhead(Figure71).
Note:Youwillremovethespringandtheoat
whenyouremovethelterbowl.
g231824
Figure71
1.Filterhead5.Float
2.Filterelement
6.Fuel-lterbowl
3.O-ring
7.Bowlnut
4.Spring
4.Drainthelterbowloffuelandcleanthe
lter-head-mountingsurface.
InstallingtheFilterElement
1.LubricatetheO-ringwithcleanfuel.
2.Assemblethelterelementontothelterhead;
refertoFigure71inRemovingtheFilterElement
(page55).
3.Assemblethespringandoatintothefuel-lter
bowl;refertoFigure71)inRemovingtheFilter
Element(page55)
4.Assemblethelterbowlandbowlnutontothe
lterheadandtightenthenutbyhand;referto
Figure71inRemovingtheFilterElement(page
55).
5.Openthefuelshutoffvalveandifneededprime
thefuelsystem;refertoPrimingtheFuelSystem
(page53).
6.Checkthefuel/waterseparatorforleaks.
Note:Repairallfuelleaksbeforeoperatingthe
machine.
55
