addoil.Referto5CheckingtheEngineOilLevel
(page9).

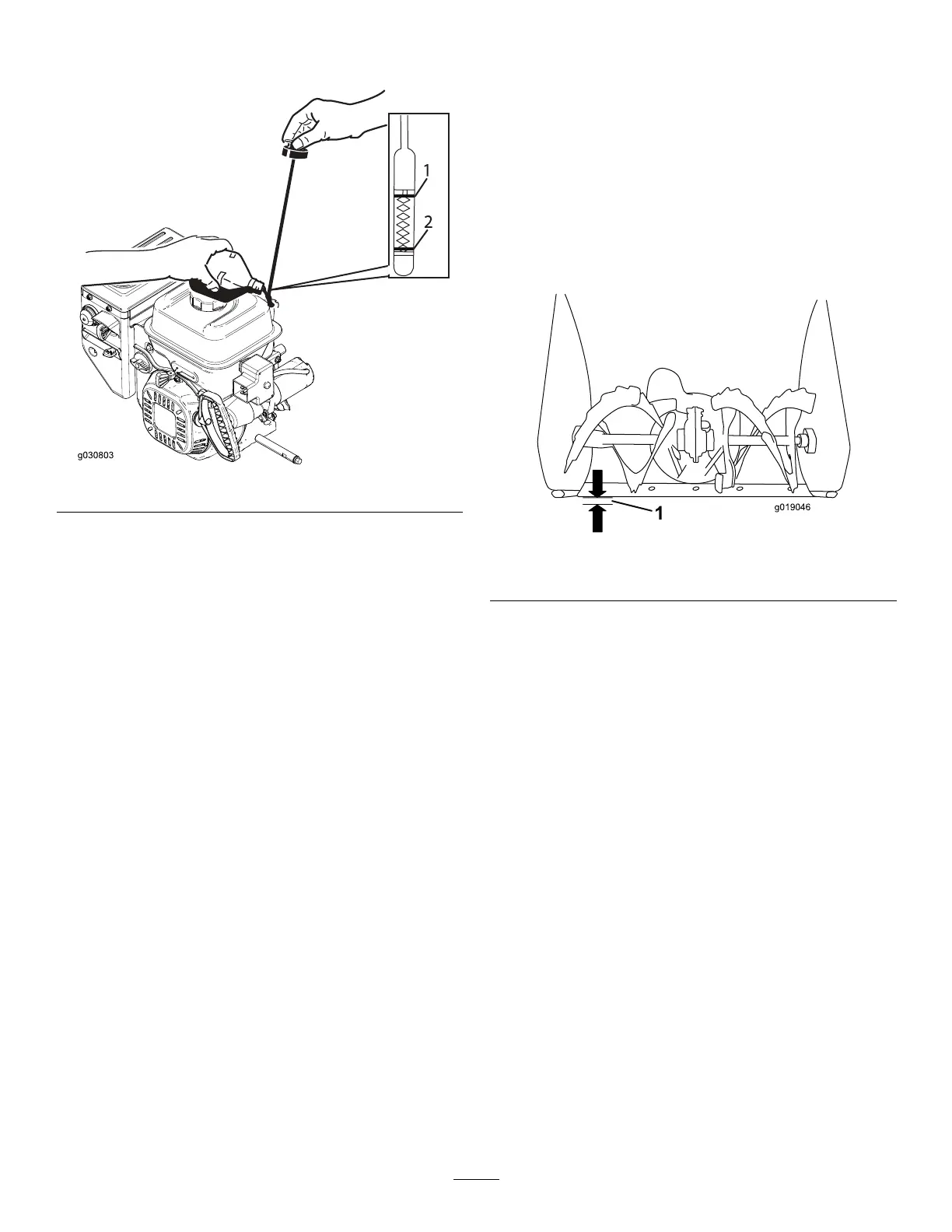

Figure35
CheckingandAdjustingthe
SkidsandScraper
ServiceInterval:Yearly—Checktheskidsandthescraper
andadjustthemifnecessary.
Checktheskidsandthescrapertoensurethattheaugerdoes
notcontactthepavedorgravelsurface.Adjusttheskidsand
thescraperasneededtocompensateforwear.
1.Checkthetirepressure.Referto(page).
2.Loosenthenutsthatsecurebothskidstotheauger
sidesuntiltheskidsslideupanddowneasily.
g019046
1
Figure36
1.1/8inch(3mm)
Important:Theaugerbladesmustbesupported
abovethegroundbytheskids.
3.Ensurethatthescraperis1/8inch(3mm)aboveand
paralleltoalevelsurface.
Note:Ifthepavementiscracked,rough,oruneven,
adjusttheskidstoraisethescraper.Forgravelsurfaces,
adjusttheskidsfurtherdowntopreventthemachine
frompickinguprocks.
4.Movetheskidsdownuntiltheyareevenwiththe
ground.
5.Firmlytightenthenutsthatsecurebothskidstothe
augersides.
Note:Toquicklyadjusttheskidsiftheyloosen,
supportthescraper1/8inch(3mm)offthepavement,
thenadjusttheskidsdowntothepavement.
Note:Iftheskidsbecomeexcessivelyworn,youcan
turnthemoverandsettheunusedsidetowardthe
pavement.
CheckingandAdjustingthe
TractionCable
ServiceInterval:Aftertherst2hours—Inspectthe
tractioncableandadjustitifnecessary.
20
