Toro 37779 - Adjusting the Auger;Impeller Cable

Yearly—Inspectthetractioncableandadjustor
replaceitifnecessary.
Ifthemachinedoesnotdriveintheforwardorreversespeeds
oritdriveswhenyoureleasethetractionlever,adjustthe
tractioncable.
Ifthelefthand(traction)cableisnotproperlyadjusted,do
thefollowingsteps:
1.Loosenthejamnut.

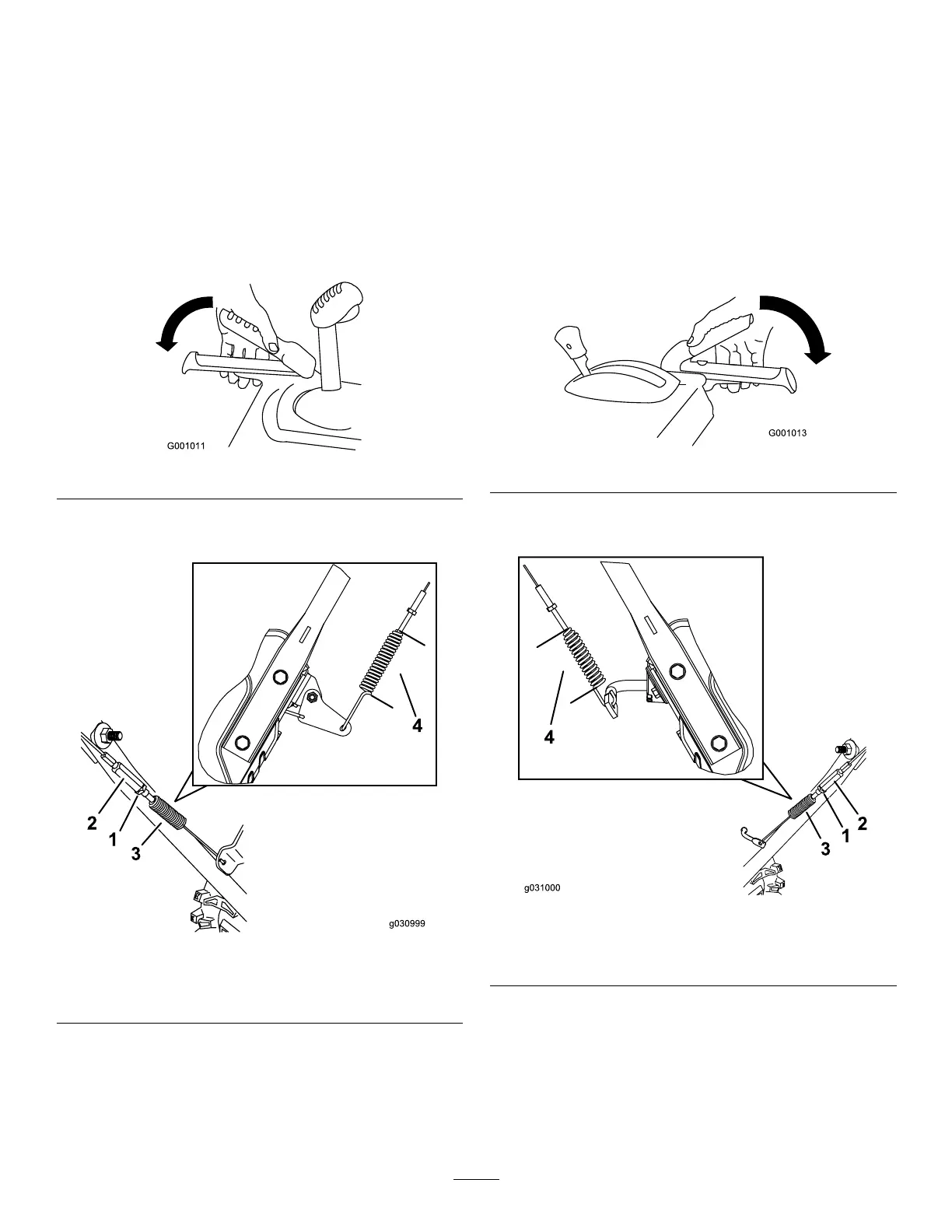

2.Engagethetractionleverandholditinplace(Figure
37).
Figure37
3.Loosenortightentheturnbuckletoadjustspring
lengthto2.18inches(5.5cm)(Figure38).
Figure38
1.Jamnut
3.Spring
2.Turnbuckle
4.2.18inches(5.5cm)
4.Tightenthejamnut(Figure38),ensuringthereisslight
tensiononthecable.
5.Ifthetractioncableisproperlyadjustedbutaproblem
remains,contactanAuthorizedServiceDealer.
CheckingandAdjustingthe
Auger/ImpellerCable
ServiceInterval:Aftertherst2hours—Inspectthe
auger/impellercableandadjustitif
necessary.
Yearly—Inspecttheauger/impellercableandadjust
orreplaceitifnecessary.
1.Loosenthejamnut.
2.Engagetheauger/impellerleverandholditinplace
(Figure39).
Figure39
3.Loosenortightentheturnbuckletoadjustthespring
lengthto2.75inches(7cm)(Figure40)
Figure40
1.Jamnut
3.Spring
2.Turnbuckle
4.2.75inches(7cm)
4.Tightenthejamnut(Figure40),ensuringthereisslight
tensiononthecable.
5.Iftheauger/impellercableisproperlyadjustedbut
aproblemremains,contactanAuthorizedService
Dealer.
