Toro 38657C - Adjusting the Discharge Chute Latch

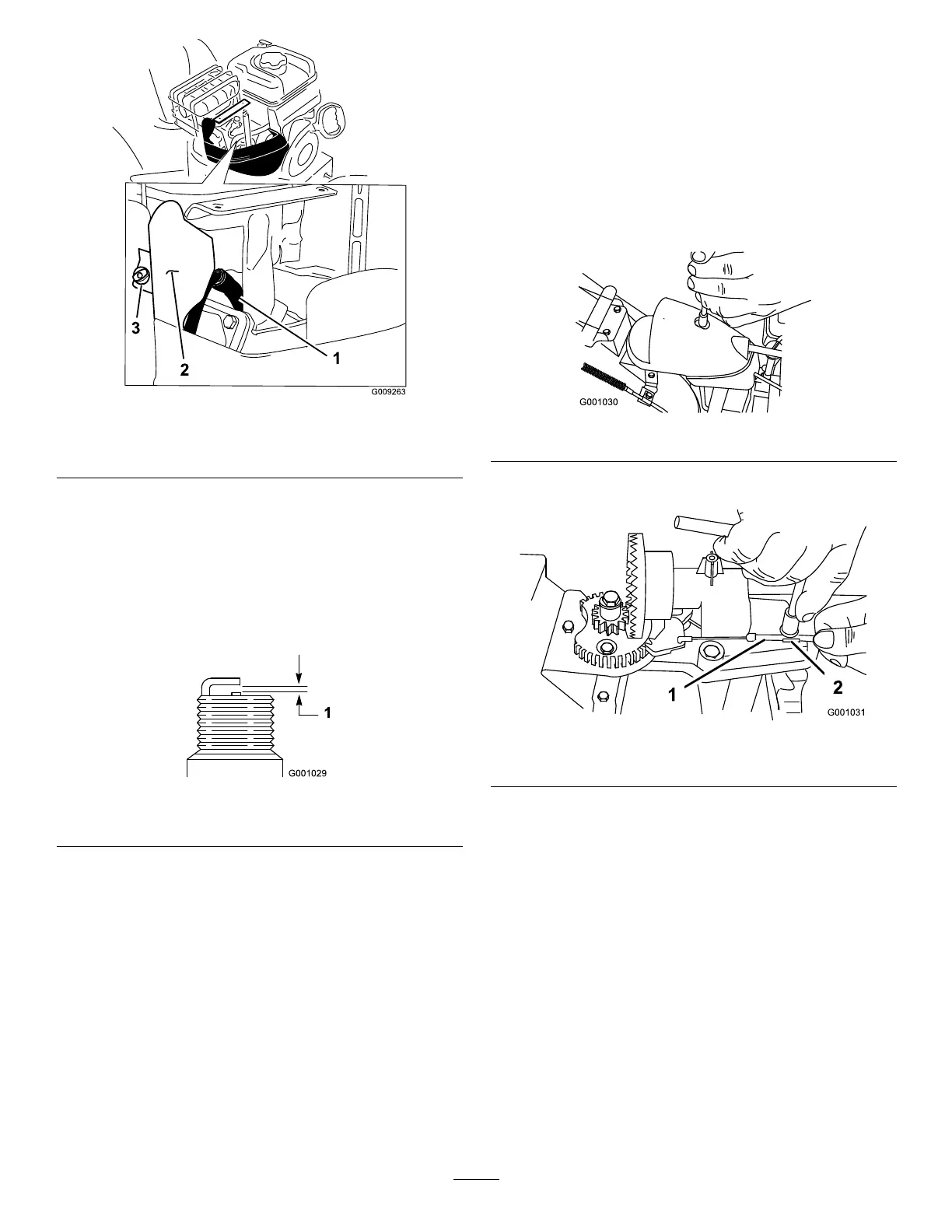

Figure53
1.Spark-plugwire
3.Thumbscrew
2.Bracket
5.Cleanaroundthebaseofthesparkplug(Figure53).
6.Removeanddiscardtheoldsparkplug.
Note:Youwillneedaratchetwrenchextensionto
removethesparkplug.
7.Setthegapbetweentheelectrodesonanewspark
plugat0.030inch(0.76mm)(Figure54).
Figure54
1.0.030inch(0.76mm)
8.Installthenewsparkplugandtightenitrmly.
9.Installthebracketwiththethumbscrewthatyou
removedinstep4.
10.Ensurethattheprimerbulbhoseandtheignition
wireareconnectedandclearofthecarburetor
bracket.
11.Securetheuppersnowhoodtothesnowthrower
withthe2screwsthatyoupreviouslyremoved.
12.Alignthetabonthechokecontrolknobwiththe
slotontheuppersnowhood.
13.Connectthechokecontrolknobtothechokeshaft
onthecarburetor.
AdjustingtheDischargeChute
Latch
Ifthedischargechutedoesnotlockintothedesired
positionordoesnotunlocksothatyoucanmoveitto
anotherposition,adjustthedischargechutelatch.
1.Removethefasteneronthegearcover(Figure55),
liftthefrontofthecoverup,andslideitbackand
outoftheway.
Figure55
2.Loosentheboltonthecableclamp(Figure56).
Figure56
1.Cableconduit2.Cableclamp
3.Graspthecableconduitandmoveittowardthefront
ofthemachineuntilthedischargechutelatchfully
engagesthegearteeth(Figure56andFigure57).
