DashPanelAssemblyRemoval(continued)

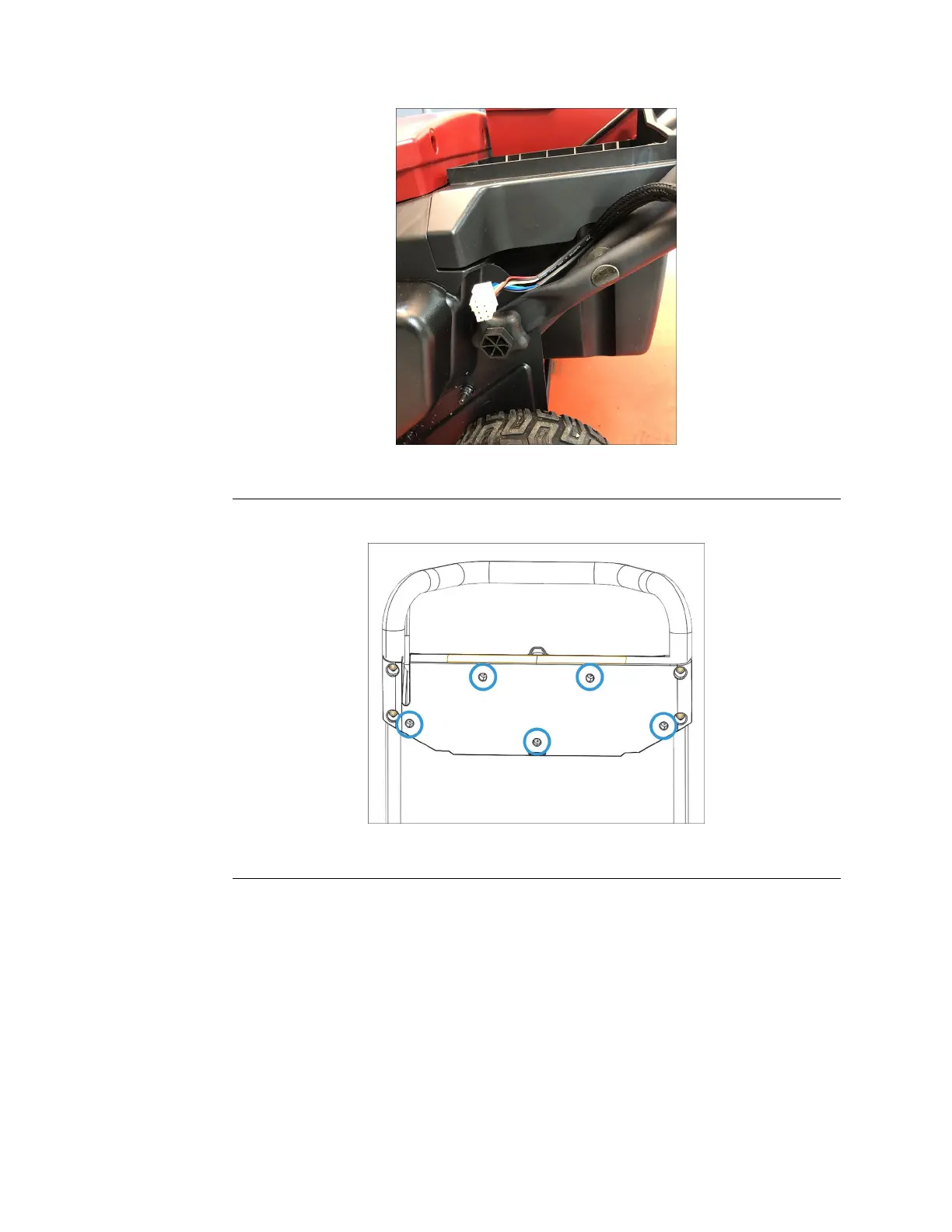

7.Removetheharnessfromthebatterycontainer.
g320305
Figure58
8.Removethe5screwssecuringthefrontandreardashpanels.
g320298
Figure59
9.Removethe4angenutsand4handlescrewssecuringthefrontandrear
dashpanelsontotheupperhandleassembly.
Controls:ServiceandRepairs
Page7–6
60VMAXe21PowerClear®SnowThrowerwith
Flex—ForcePowerSystem®ServiceManual
3438-775RevA
