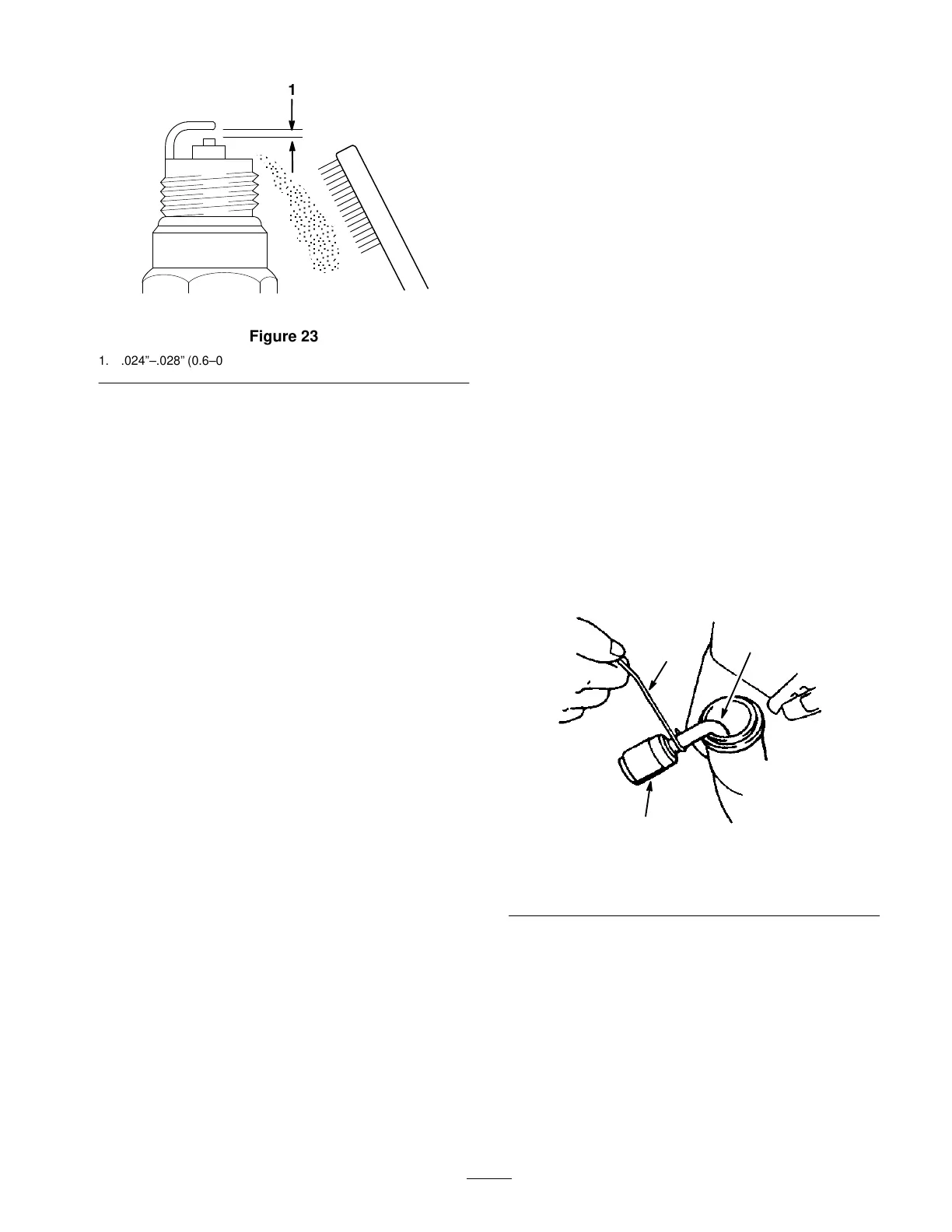

Figure 23
1. .024”–.028” (0.6–0.7 mm)
Fuel Filter
Maintenance Interval
The fuel filter should be replaced after every 100 hours of
operation.
Fuel Filter Replacement
The fuel filter is attached to the end of the fuel pick-up
hose inside the fuel tank (Fig. 24).
To replace the fuel filter:
1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out
through the fuel filler opening (Fig. 24).
4. Grasp the fuel hose next to the fuel filter fitting and
remove the filter, but do not release the hose.
5. While still holding on to the fuel hose, attach the new
fuel filter.
6. Drop the new fuel filter back into the fuel tank.
7. Make sure that the fuel filter is not stuck in a corner of
the tank, and that the fuel hose is not doubled over
(kinked) before refueling.
m-2931
Figure 24
1. Wire
2. Fuel Pick-up Hose
3. Fuel Filter
Idle Speed Adjustment
This String Trimmer is equipped with non-adjustable fuel
mixture carburetor. The engine idle speed is the only
adjustment for the operator.
