CheckingtheTirePressure
ServiceInterval:Every25hours
Maintaintheairpressureinthefrontandreartiresat
20psi(138kPa).Checkthepressureatthevalvestem
(Figure31)afterevery25operatinghoursoryearly,
whicheveroccursrst.Checkthetireswhentheyare
coldtogetthemostaccuratepressurereading.

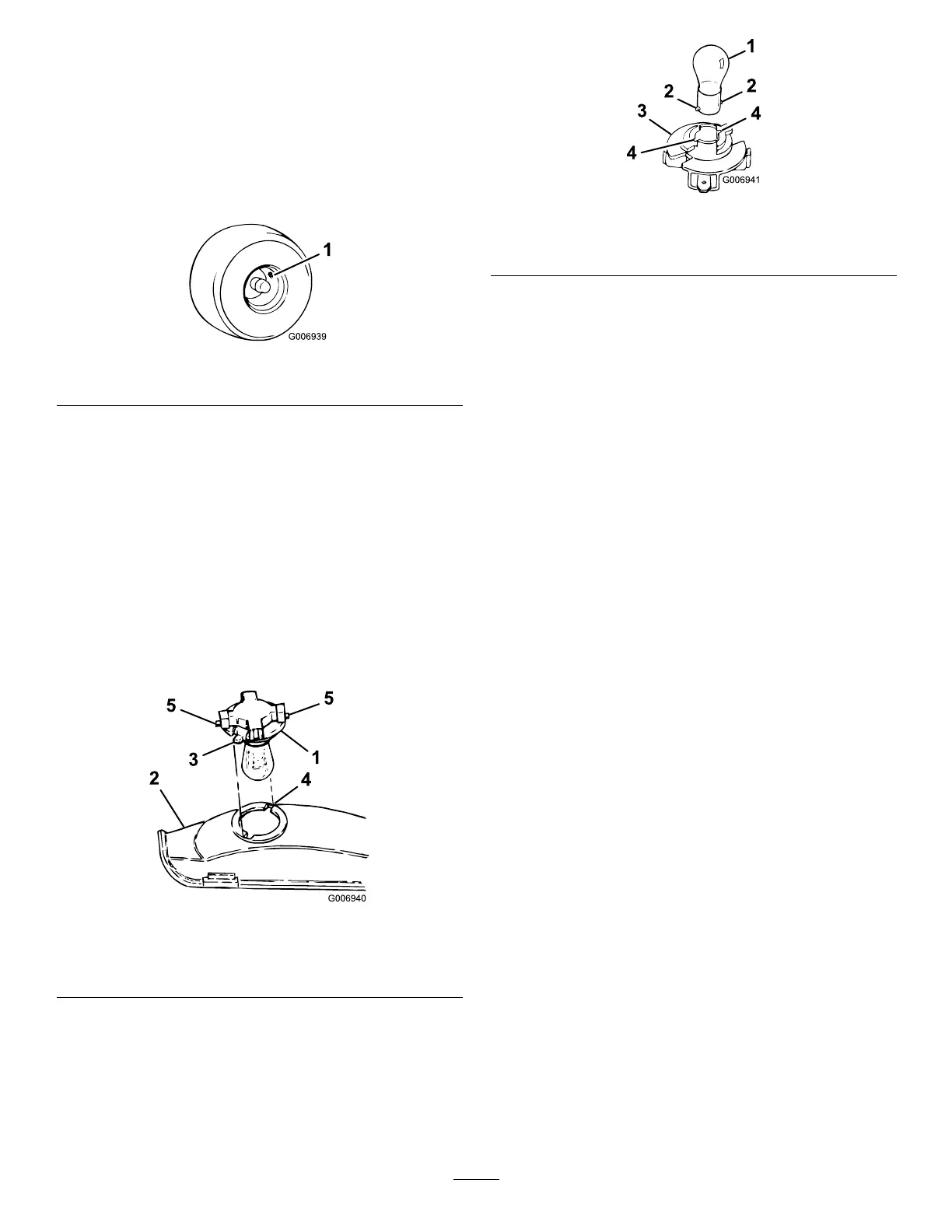

Figure31
1.Valvestem
ServicingtheHeadlights
Theheadlightsusean1156,automotive-typebulb.
RemovingtheBulb
1.Openthehood.
2.Disconnectthewireconnectorsfrombothofthe
bulbholderterminals.
3.Rotatethebulbholder1/4turncounterclockwise
andremoveitfromthereector(Figure32).
Figure32
1.Bulbholder
4.Slots
2.Reector
5.Terminals
3.Tabs
4.Insertandrotatethebulbcounterclockwiseuntilit
stops(approx.1/4turn),andremovethebulbfrom
thebulbholder(Figure33).
Figure33
1.Bulb3.Bulbholder
2.Metalpins
4.Slots
InstallingtheBulb
1.Alignthemetalpinsonthesideofthebulbbase
withtheslotsinthebulbholder.
2.Insertthebaseintotheholder(Figure33).
3.Pushandrotatethebulbclockwiseuntilitstops.
4.Alignthetabsonthebulbholder(Figure32)with
theslotsinthereector,insertthebulbholderinto
thereector,androtateit1/4turnclockwiseuntil
itstops.
5.Connectthewireconnectorstotheterminalsonthe
bulbholder.
