20

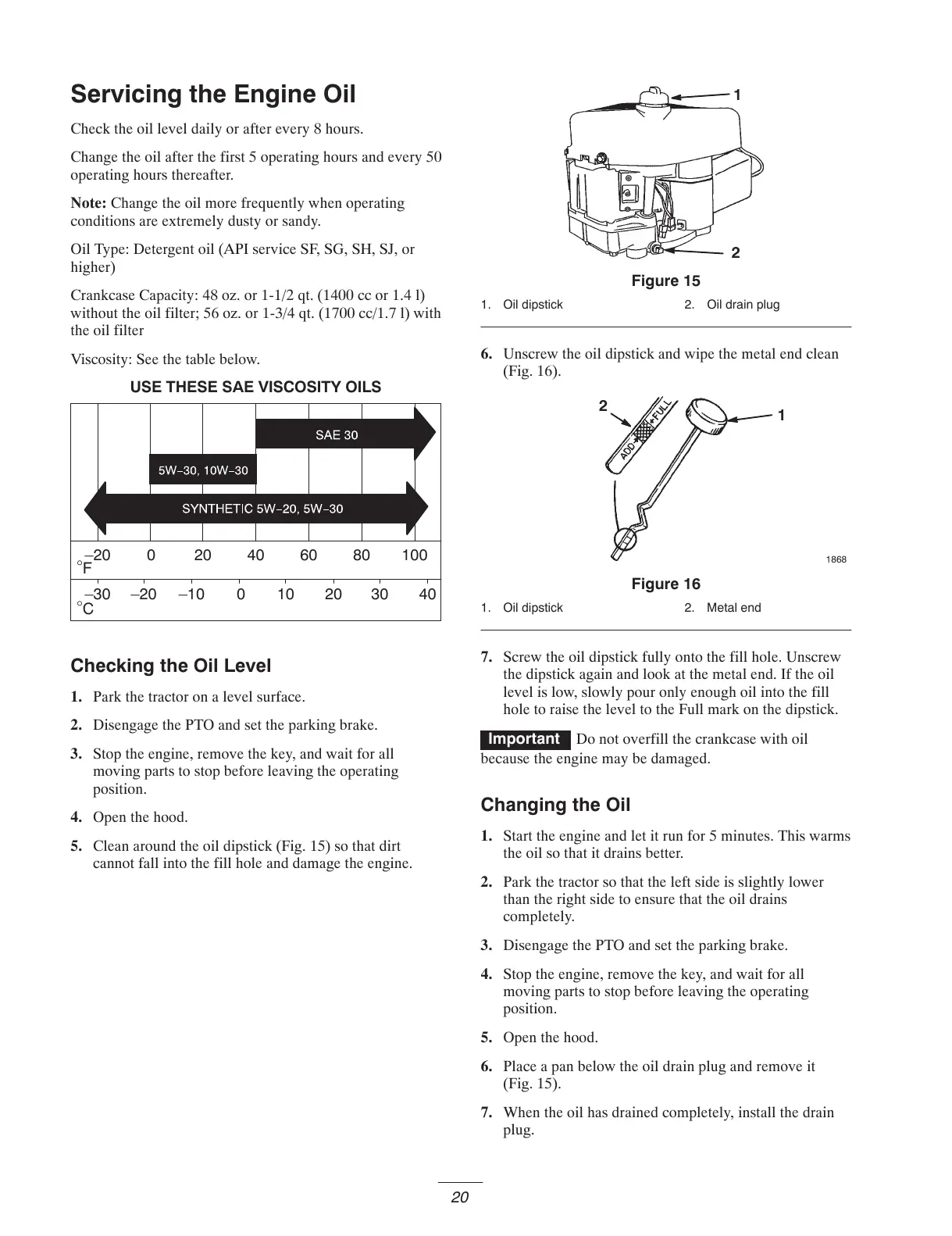

Servicing the Engine Oil
Check the oil level daily or after every 8 hours.
Change the oil after the first 5 operating hours and every 50
operating hours thereafter.
Note: Change the oil more frequently when operating
conditions are extremely dusty or sandy.
Oil Type: Detergent oil (API service SF, SG, SH, SJ, or
higher)
Crankcase Capacity: 48 oz. or 1-1/2 qt. (1400 cc or 1.4 l)
without the oil filter; 56 oz. or 1-3/4 qt. (1700 cc/1.7 l) with
the oil filter
Viscosity: See the table below.
F
–20 0 20 40 60 80 100
°
C
–30
°
–20 –10 0 10 20 30 40
USE THESE SAE VISCOSITY OILS
Checking the Oil Level
1. Park the tractor on a level surface.
2. Disengage the PTO and set the parking brake.
3. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
4. Open the hood.
5. Clean around the oil dipstick (Fig. 15) so that dirt
cannot fall into the fill hole and damage the engine.
2
1
Figure 15
1. Oil dipstick 2. Oil drain plug
6. Unscrew the oil dipstick and wipe the metal end clean
(Fig. 16).
1
2
1868
Figure 16
1. Oil dipstick 2. Metal end
7. Screw the oil dipstick fully onto the fill hole. Unscrew
the dipstick again and look at the metal end. If the oil
level is low, slowly pour only enough oil into the fill
hole to raise the level to the Full mark on the dipstick.
Important Do not overfill the crankcase with oil
because the engine may be damaged.
Changing the Oil
1. Start the engine and let it run for 5 minutes. This warms
the oil so that it drains better.
2. Park the tractor so that the left side is slightly lower
than the right side to ensure that the oil drains
completely.
3. Disengage the PTO and set the parking brake.
4. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
5. Open the hood.
6. Place a pan below the oil drain plug and remove it
(Fig. 15).
7. When the oil has drained completely, install the drain
plug.
To Next Page
