30

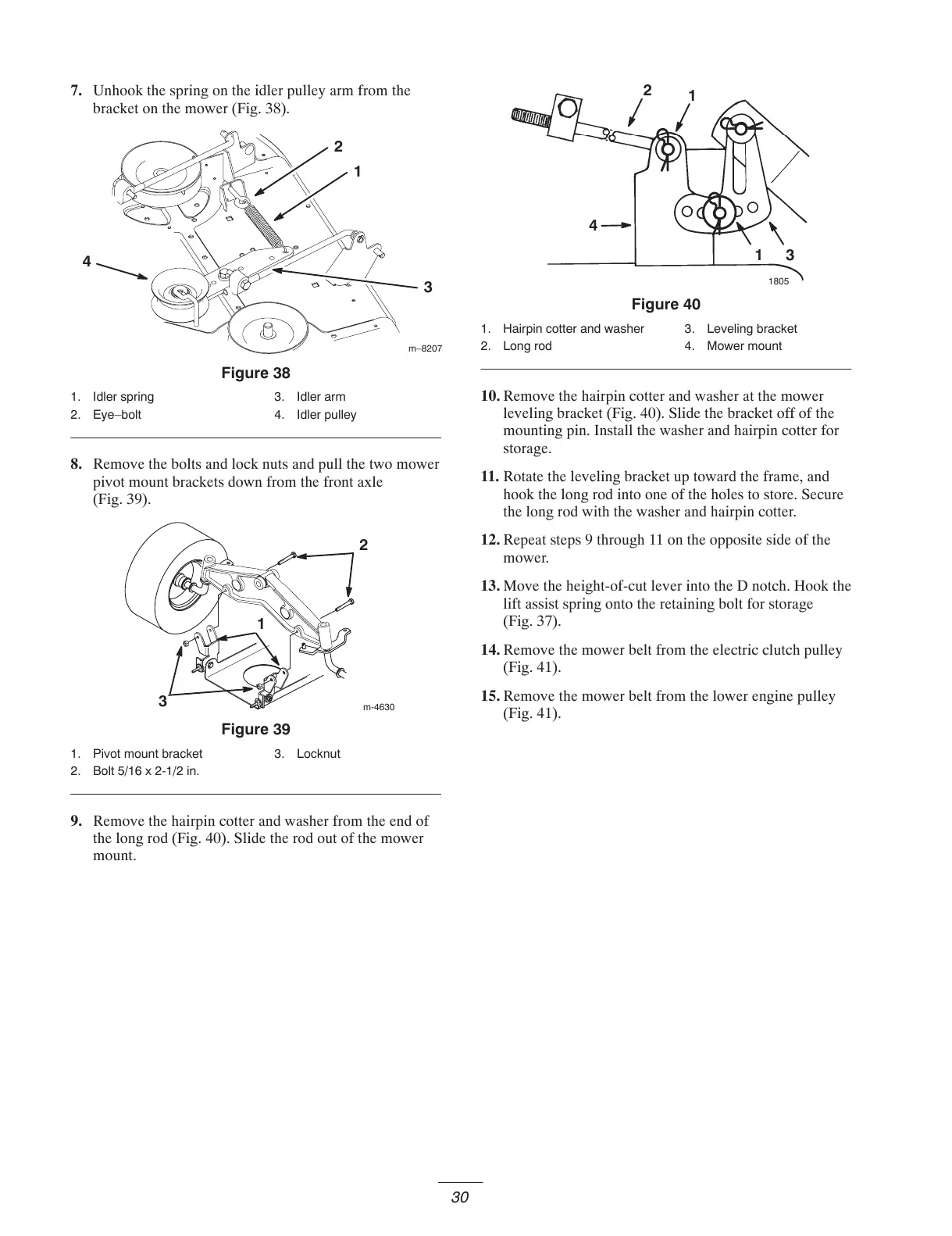

7. Unhook the spring on the idler pulley arm from the
bracket on the mower (Fig. 38).
m–8207
4
2
1
3
Figure 38
1. Idler spring
2. Eye–bolt
3. Idler arm
4. Idler pulley
8. Remove the bolts and lock nuts and pull the two mower
pivot mount brackets down from the front axle
(Fig. 39).
m-4630
1
2
3
Figure 39
1. Pivot mount bracket
2. Bolt 5/16 x 2-1/2 in.
3. Locknut
9. Remove the hairpin cotter and washer from the end of
the long rod (Fig. 40). Slide the rod out of the mower
mount.
1805
3
2
1
1
4
Figure 40
1. Hairpin cotter and washer
2. Long rod
3. Leveling bracket
4. Mower mount
10. Remove the hairpin cotter and washer at the mower
leveling bracket (Fig. 40). Slide the bracket off of the
mounting pin. Install the washer and hairpin cotter for
storage.
11. Rotate the leveling bracket up toward the frame, and
hook the long rod into one of the holes to store. Secure
the long rod with the washer and hairpin cotter.
12. Repeat steps 9 through 11 on the opposite side of the
mower.
13. Move the height-of-cut lever into the D notch. Hook the
lift assist spring onto the retaining bolt for storage
(Fig. 37).
14. Remove the mower belt from the electric clutch pulley
(Fig. 41).
15. Remove the mower belt from the lower engine pulley
(Fig. 41).
