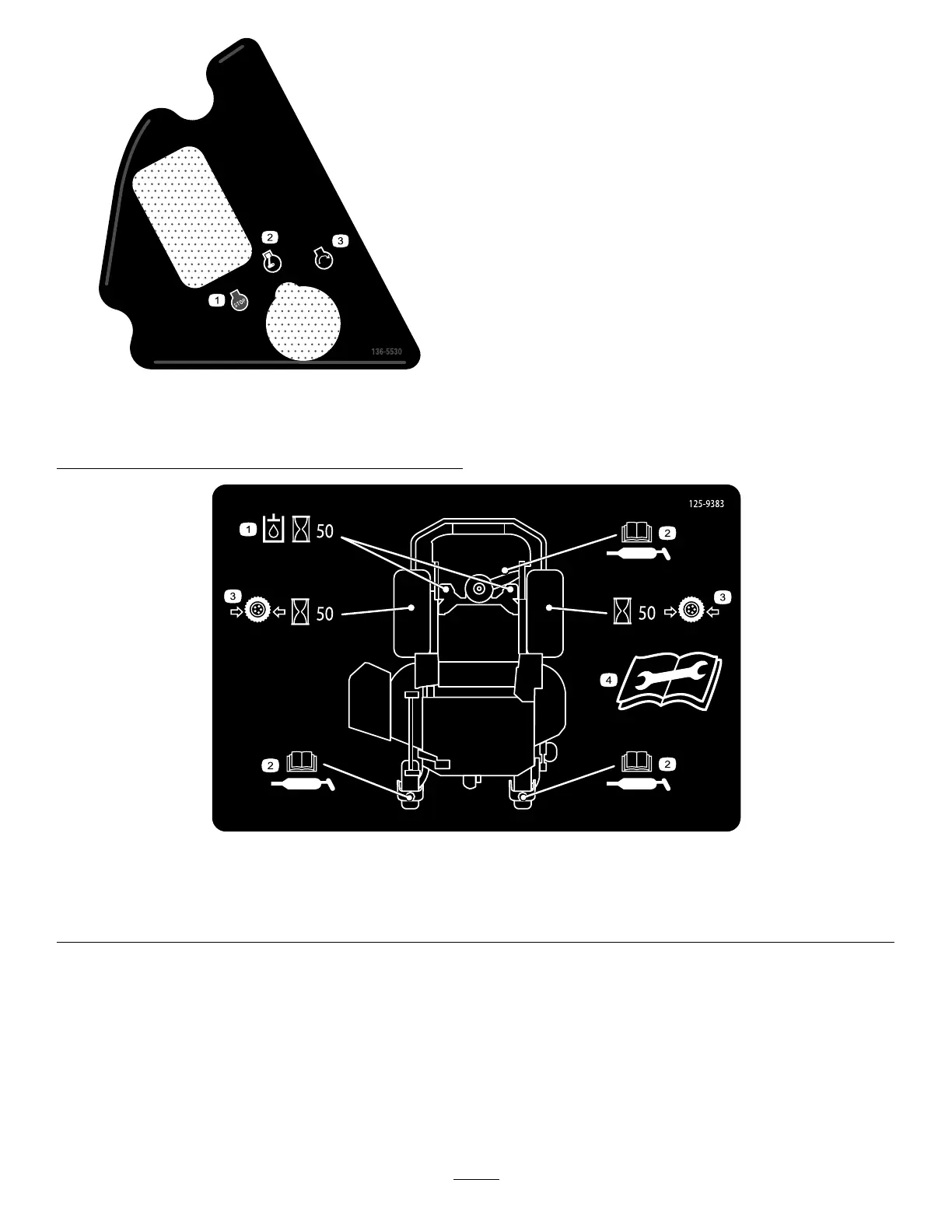

decal136-5530

136-5530

1.Engine—stop3.Engine—start

2.Engine—run

decal125-9383

125-9383

1.Checkthehydraulicuidevery50operatinghours.3.Checkthetirepressureevery50operatinghours.

2.ReadtheOperator’sManualforinformationonlubricating

themachine.

4.ReadtheOperator’sManualbeforeservicingorperforming

maintenance.
