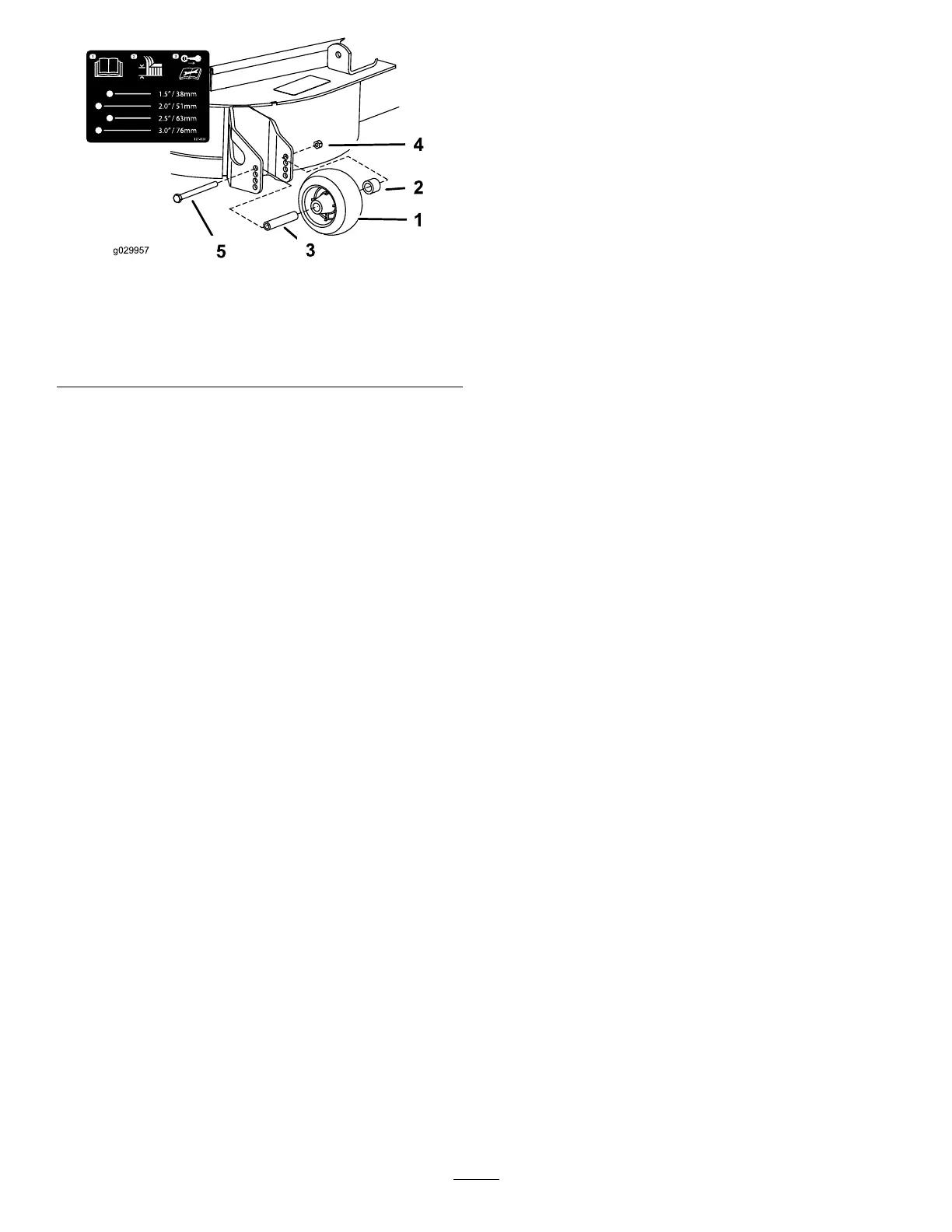

Figure28
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
AdjustingtheFlowBafe
Knob
Thisprocedureappliesonlytomachineswiththe
owbafeknob.Certainmodelshavenutsandbolts
insteadoftheowbafeknobthatyoucanadjustthe
sameway.
Youcanadjustthemowerdischargeowfordifferent
typesofmowingconditions.Positiontheknoband
bafetogivethebestqualityofcut.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Loosentheknob.
4.Slidetheknobtothedesiredposition.
5.Tightentheknob.
