ReplacingtheHydraulic
Pump-DriveBelt
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removethemowerbelt;refertoReplacingthe
MowerBelt(page59).
4.Raisethemachineandsupportitwithjack
stands(Figure89).

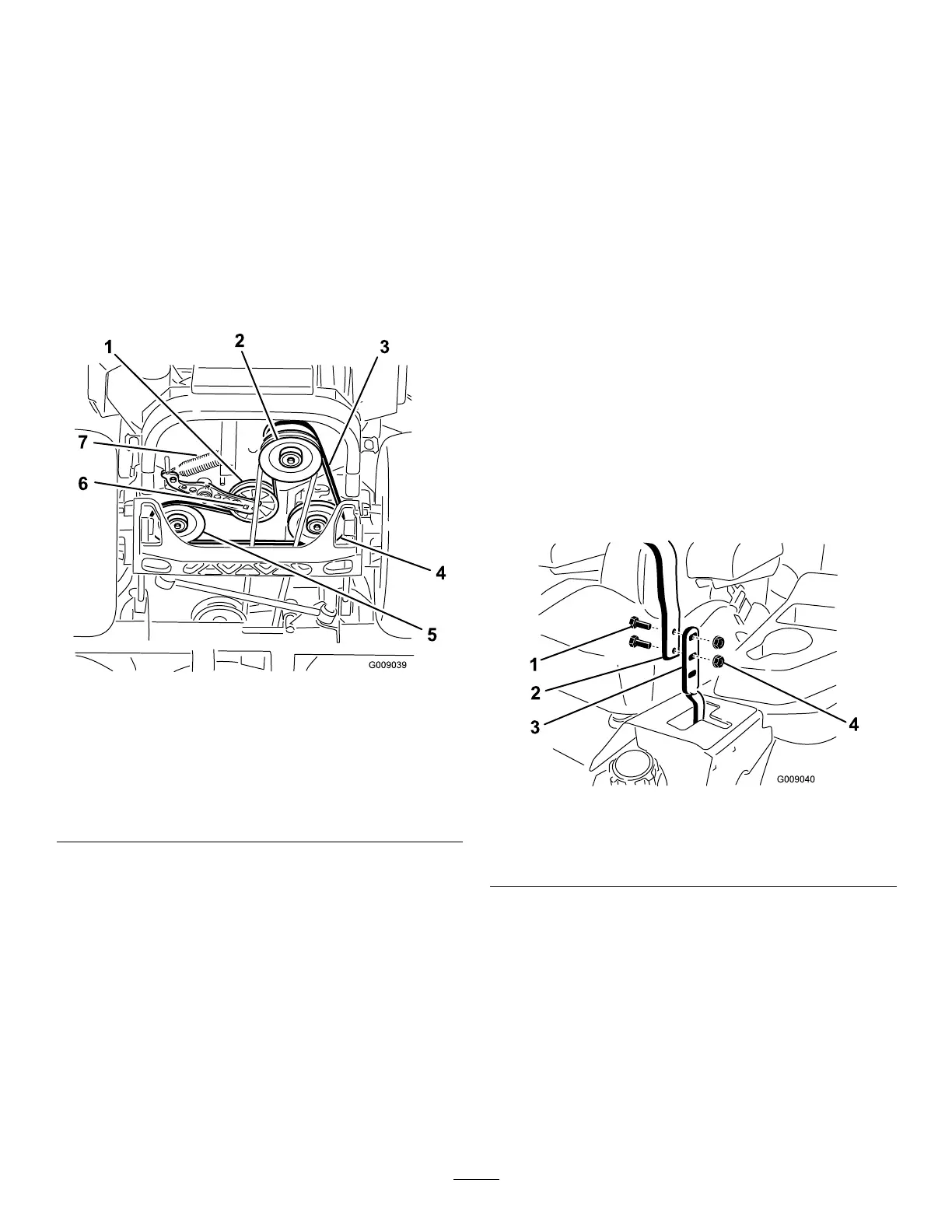

g009039
Figure89
1.Idlerpulley
5.Lefthydraulic-pumppulley
2.Clutchpulley6.Squareholeintheidler
arm
3.Pump-drivebelt7.Idlerspring
4.Righthydraulic-pump
pulley
5.Usearatchetinthesquareholeintheidlerarm
toremovetheidlerspring(Figure89).
6.Unhooktheidlerspringfromtheframe(Figure
89).
7.Removethebeltfromthehydraulic-unit-drive
pulleysandtheenginepulley.
8.Installthenewbeltaroundenginepulleyand
the2drivepulleys.
9.Usingaratchetinthesquareholeintheidler
arm,installtheidlerspringtotheframe(Figure
89).
10.Installthemowerbelt;refertoReplacingthe
MowerBelt(page59).
ControlsSystem
Maintenance
Adjustingthe
Control-HandlePosition
Thereare2heightpositionsforthecontrol
levers—highandlow.Removetheboltstoadjustthe
heightfortheoperator.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Loosentheboltsandangenutsinstalledinthe
levers(Figure90).
4.Aligntheleversinthefront-to-rearpositionby
bringingtheleverstogethertotheNEUTRAL
position,andslidethemuntiltheyarealigned,
thentightenthebolts(Figure91).
g009040
Figure90
1.Bolt(2)3.Controllever
2.Handle
4.Nut(2)
