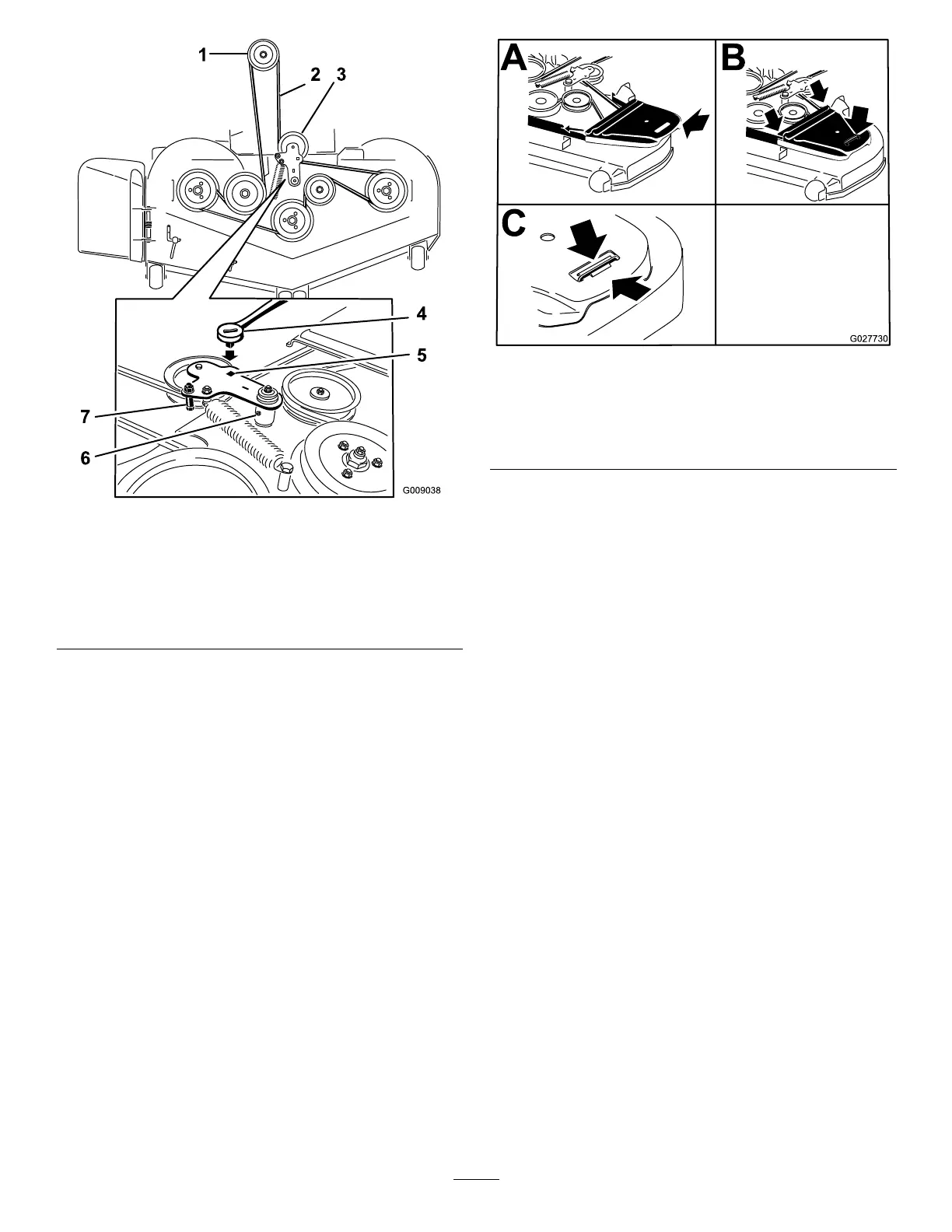

g009038
Figure87
1.Clutchpulley5.Squareholeintheidler
armfortheratchet
2.Mowerbelt
6.Idler-greasetting
3.Spring-loadedidlerpulley
7.Beltguide
4.Ratchet
10.Installthebeltguideontheidlerarm(Figure87).
11.Usingtheratchetinthesquarehole,installthe
idlerspring(Figure87).
Note:Makesurethatthespringendsare
seatedintheanchorgrooves.
12.Installthebeltcovers(Figure88).
g027730
Figure88
1.Positionthebeltcover.3.Ensurethatthetabis
underthemetalcatch.
2.Slidethebeltcoverunder
thesidecatches.
