Toro 72946 - Checking and Cleaning the Hydraulic-Unit Shrouds; Brake Maintenance; Adjusting the Parking Brake

CheckingandCleaningthe
Hydraulic-UnitShrouds
ServiceInterval:Beforeeachuseordaily
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Movetheseatforward.

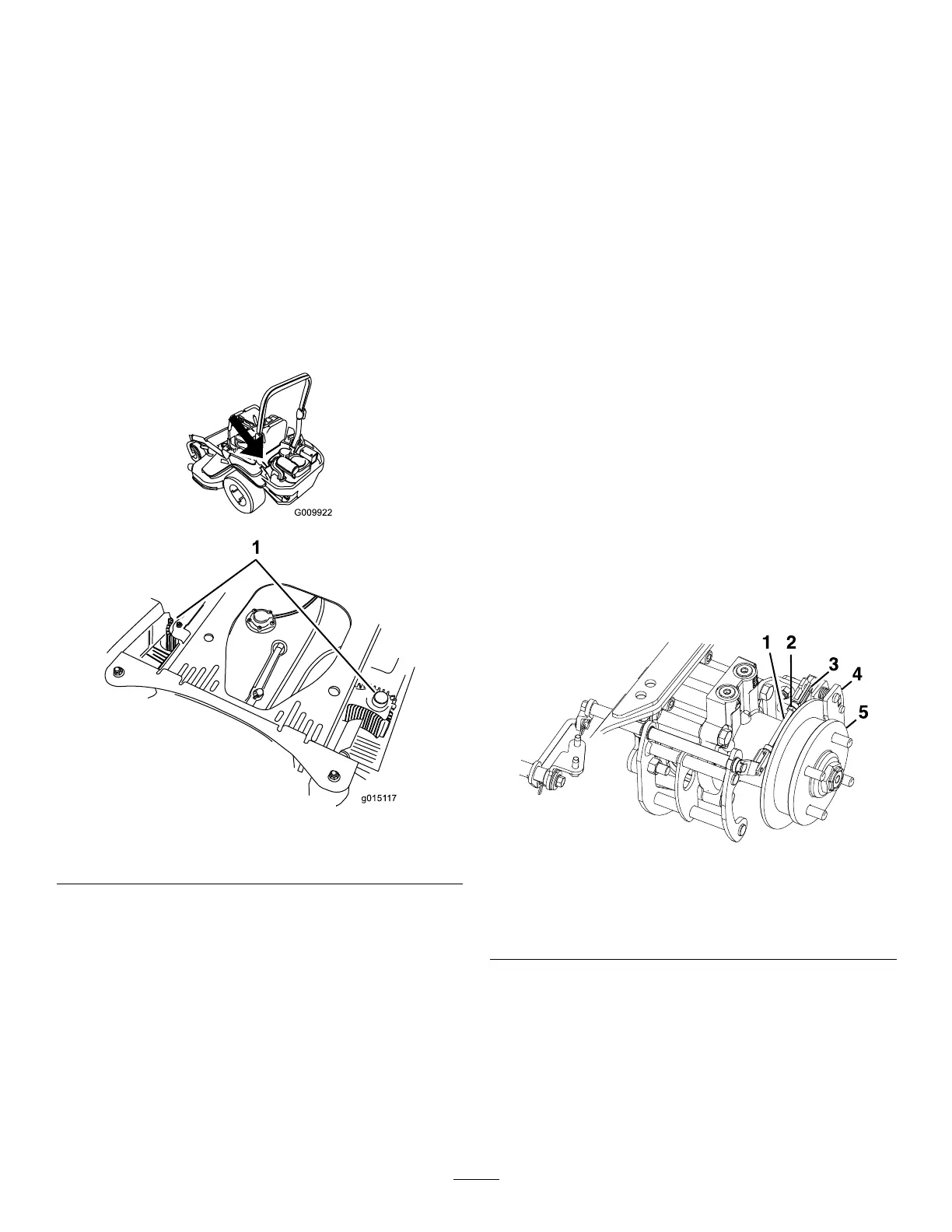

4.Cleanthedebrisandgrassfromthe
hydraulic-unitshrouds(Figure84).
5.Positiontheseat.
g009922
g015117
Figure84
1.Hydraulic-unitshrouds
BrakeMaintenance
AdjustingtheParking
Brake
ServiceInterval:Aftertherst100hours
Every500hours
Checktoensurethatparkingbrakeisadjusted
properly.Thisproceduremustbefollowedafterthe
rst100hoursorwhenabrakecomponenthasbeen
removedorreplaced.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Raisetherearofthemachineupandsupport
themachinewithjackstands.
4.Removethereartiresfromthemachine.
5.Removeanydebrisfromthebrakearea.
6.Releasethedrivewheels;refertoUsingthe
Drive-Wheel-ReleaseValves(page30).
7.Disengagetheparkingbrake.
8.Removethespringclevispinfromtherear
linkageandcaliper(Figure85).
g297209
Figure85
1.Rearlinkage
4.Caliper
2.Jamnut5.Wheelhub
3.Springclevispin
9.Loosenthejamnutontherearlinkage.
10.Pushthecaliperleverforwardwithnger
pressureuntilthebrakepadcontactsthehub
rotor.
11.Adjusttherearlinkageuntilthespringclevispin
canbeinsertedintheholeinthecaliperlever.
Note:T olengthenthelinkage,rotatetheclevis
1turnoutward.
58
