3. Lower the the roll bar to the down position.
Note: There are 2 down positions. See Figure 4 for the
positions.
2
1
m-7432a

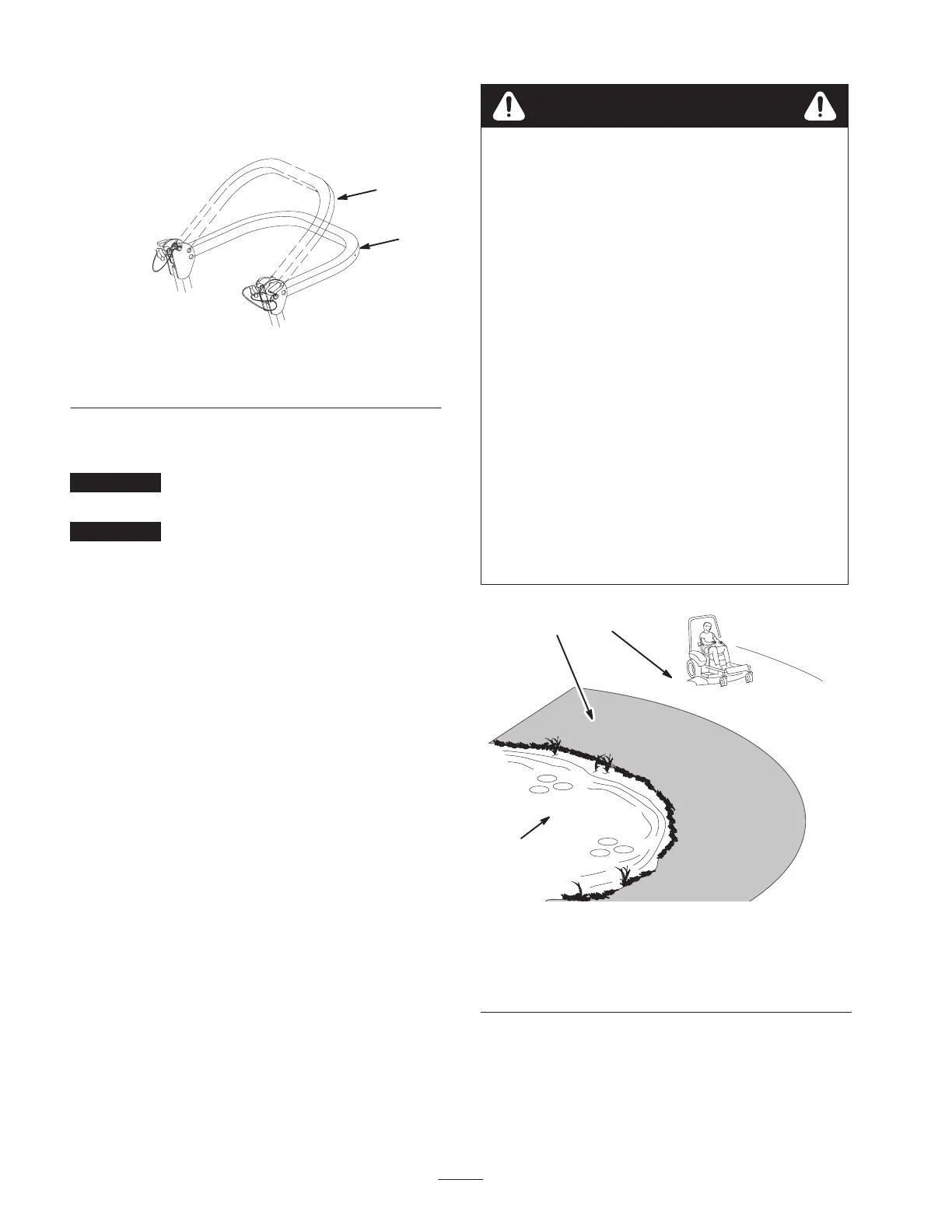

Figure 4
1. Full down position 2. Down position with
bagger installed
4. Install the 2 pins and secure them with the hairpin cotter
pins (Fig. 3).
Important Always use the seat belt with the roll bar in
the raised position.
Important Ensure that the rear part of the seat is
secured with the seat latch.
5. To raise the roll bar, remove the hairpin cotter pins and
remove the 2 pins (Fig. 3).
6. Raise the roll bar to the upright position and install the
2 pins and secure them with the hairpin cotter pins
(Fig. 3).
7. Tighten the front handles against the center roll bar ends
(Fig. 2).
Think Safety First
Read all safety instructions and symbols in the safety
section. Knowing this information could help you or
bystanders avoid injury.
Danger
Operating the machine on wet grass or steep slopes
can cause sliding and loss of control.
Wheels dropping over the edges can cause
rollovers, which may result in serious injury,
death, or drowning.
There is no rollover protection when the roll bar is
down.
Always keep the roll bar in the raised and locked
position, and use the seat belt.
Read and follow the rollover protection
instructions and warnings.
To avoid loss of control and the possibility of
rollover:
• Do not operate the machine near dropoffs or
near water.
• Do not operate the machine on slopes greater
than 15 degrees.
• Reduce the speed and use extreme caution on
slopes.
• Avoid sudden turns or rapid speed changes.
• Avoid operating the machine on wet grass.
2
3
1
m–6478
Figure 5
1. Safe Zone—use the
Z Master here on slopes
less than 15 degrees or
flat areas.
2. Use the walk behind
mower or hand trimmer
near dropoffs and water.
3. Water
Toro recommends that you use protective equipment for
your eyes, ears, feet, and head.
