Toro 74411 - Positioning the Seat; Pushing the Machine by Hand

22
Adjusting the Center Rollers
1. Disengage the PTO, move the motion control levers to
the neutral locked position, and set the parking brake.
2. Stop the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
3. After adjusting the height-of-cut, remove the bolt and
nut (Fig. 19).
m–4124
1
2
3

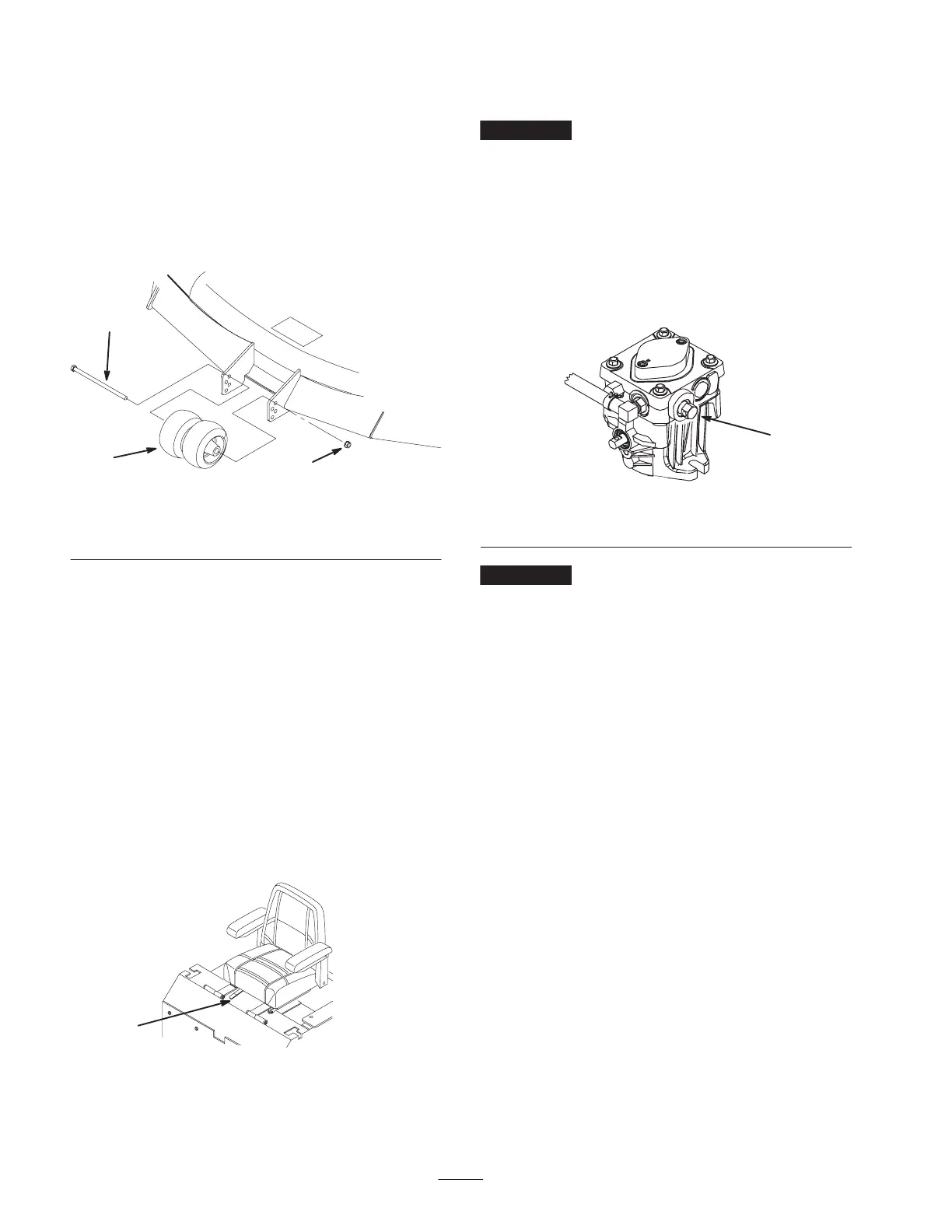

Figure 19
1. Center rollers and spacer
2. Nut
3. Bolt
4. Select a hole so that the center rollers are positioned to
the nearest corresponding height-of-cut desired
(Fig. 19).
Note: Do not adjust the rollers to support the mower
housing.
5. Install the bolt, center rollers, and nut (Fig. 19).
Positioning the Seat
The seat can move forward and backward. Position the seat
where you have the best control of the machine and are
most comfortable.
1. To adjust, move the lever sideways to unlock the seat
(Fig. 20).
1
m–3655
Figure 20
1. Adjustment lever
2. Slide the seat to the desired position and release the
lever to lock the seat in position.
Pushing the Machine by Hand
Important Always push the machine by hand. Never
tow the machine, because hydraulic damage may occur.
To Push the Machine
1. Disengage the power takeoff (PTO) and turn the
ignition key to Off.
2. Rotate the bypass valves counterclockwise 1 turn to
push. This allows the hydraulic fluid to bypass the
pump, enabling the wheels to turn (Fig. 21).
1
m–6279
Figure 21
1. Bypass valve
Important Do not rotate the bypass valves more than
1 turn. This prevents the valves from coming out of the
body and causing fluid to run out.
Changing to Machine Operation
Turn the bypass valves in to operate (Fig. 21).
Note: Do not overtighten the bypass valves.
Note: The machine will not drive unless the bypass valves
are turned in.
