ProductOverview

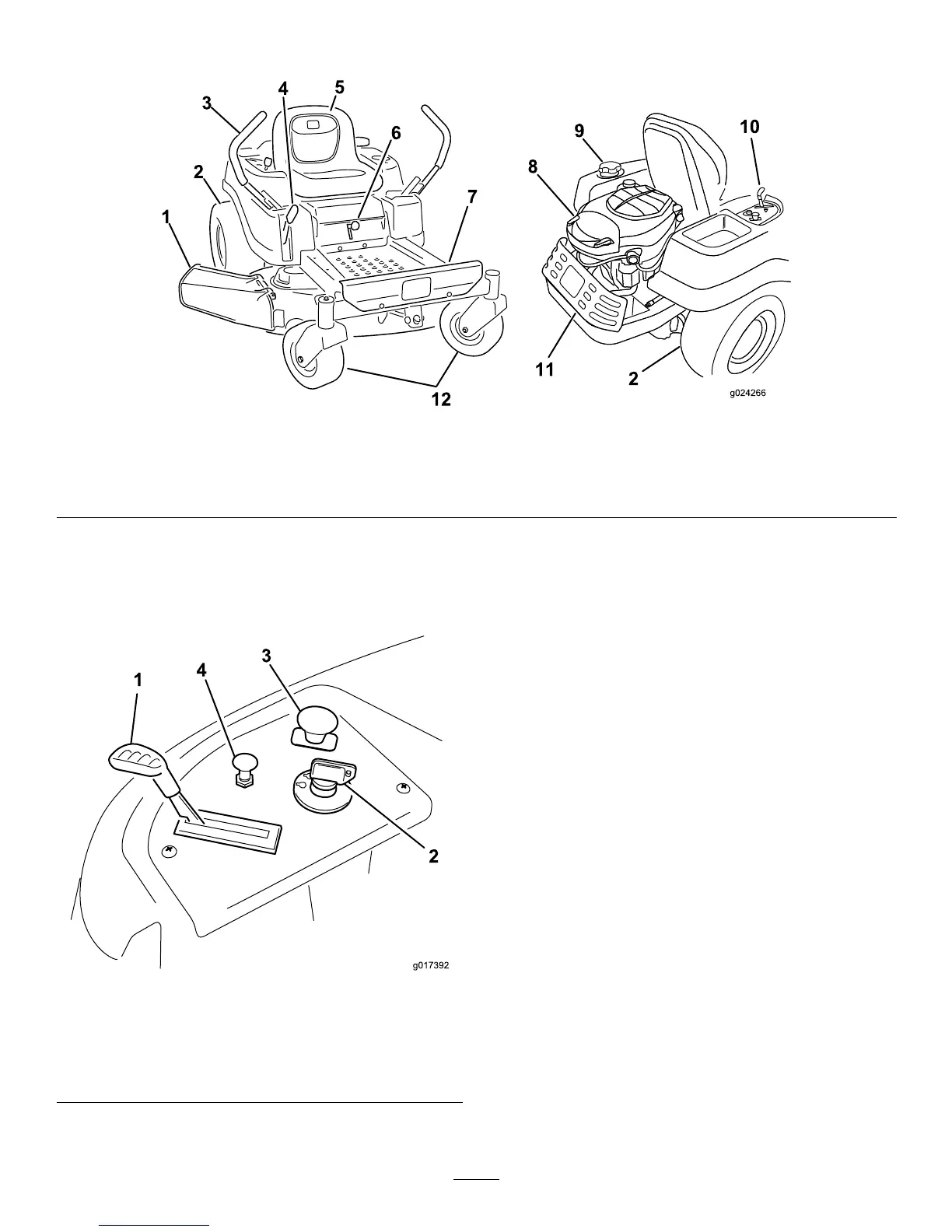

Figure3
1.Deector4.Height-of-cutlever
7.Footrest
10.Controlpanel
2.Reardrivewheel
5.Operatorseat
8.Engine11.Engineguard
3.Motion-controllevers
6.SmartSpeed™lever
9.Fuel-tankcap12.Frontcasterwheel
Controls
BecomefamiliarwithallofthecontrolsinFigure3and
Figure4beforeyoustarttheengineandoperatethemachine.
Figure4
ControlPanel
1.Throttle3.Blade-controlswitch
(powertake-off)
2.Ignitionswitch
4.Choke
IgnitionSwitch
Theignitionswitchhas3positions:Off,Run,andStart.The
keywillturntoStartandmovebacktoRunuponrelease.
TurningthekeytotheOffpositionwillstoptheengine;
however,alwaysremovethekeywhenleavingthemachine
topreventsomeonefromaccidentallystartingtheengine
(Figure4).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromSlowtoFast(Figure4).
ChokeControl
PullupontheChokecontroluntilitstopstochokethe
engine(Figure4).PushdownontheChokecontrolfor
normalengineoperation
Blade-controlSwitch(PowerTake-Off)
Theblade-controlswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades(
Figure4).
Motion-controlLeversandPark
Position
Themotion-controlleversarespeed-sensitivecontrolsof
independent-wheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
