Premaintenance
Procedures
RaisingtheSeat
Makesurethatthemotion-controlleversarelockedinthe
parkposition.Lifttheseatforward.
Thefollowingcomponentscanbeaccessedbyraisingtheseat:
•Serialplate
•Servicedecal
•Seatadjustmentbolts
•Fuellter
•Batteryandbatterycables
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseallthelubrication
points.
GreaseType:No.2generalpurpose,lithium-basegrease
1.Parkthemachineonalevelsurface,anddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothepark
position,stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.
3.Cleanthegreasettings(Figure25andFigure26)with
arag.
Note:Makesuretoscrapeanypaintoffthefrontof
thetting(s).
1
G014522

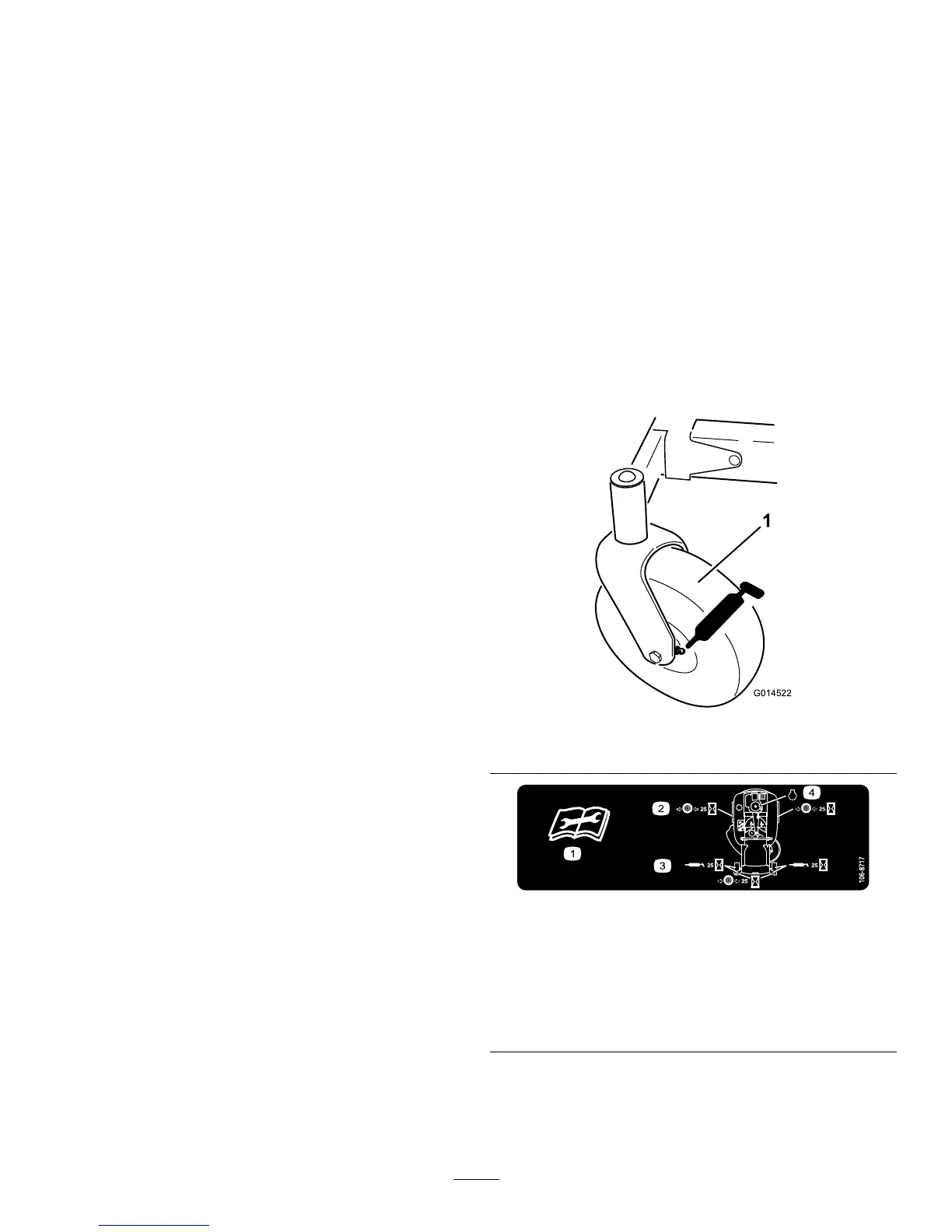

Figure25
1.Frontcastertire
Figure26
Locatedontheseat-panunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance
3.Greaseevery25operating
hours
2.Checkthetirepressure
every25operatinghours
4.Engine
4.Connectagreaseguntoeachtting(Figure25and
Figure26).
5.Pumpgreaseintothettingsuntilgreasebeginsto
oozeoutthebearings.
