Toro 74637 - Operator Seating and Control Adjustment; Positioning the Operator Seat; Motion-Control Lever Adjustment; Pushing the Machine Manually

G010233
1
2
3
4

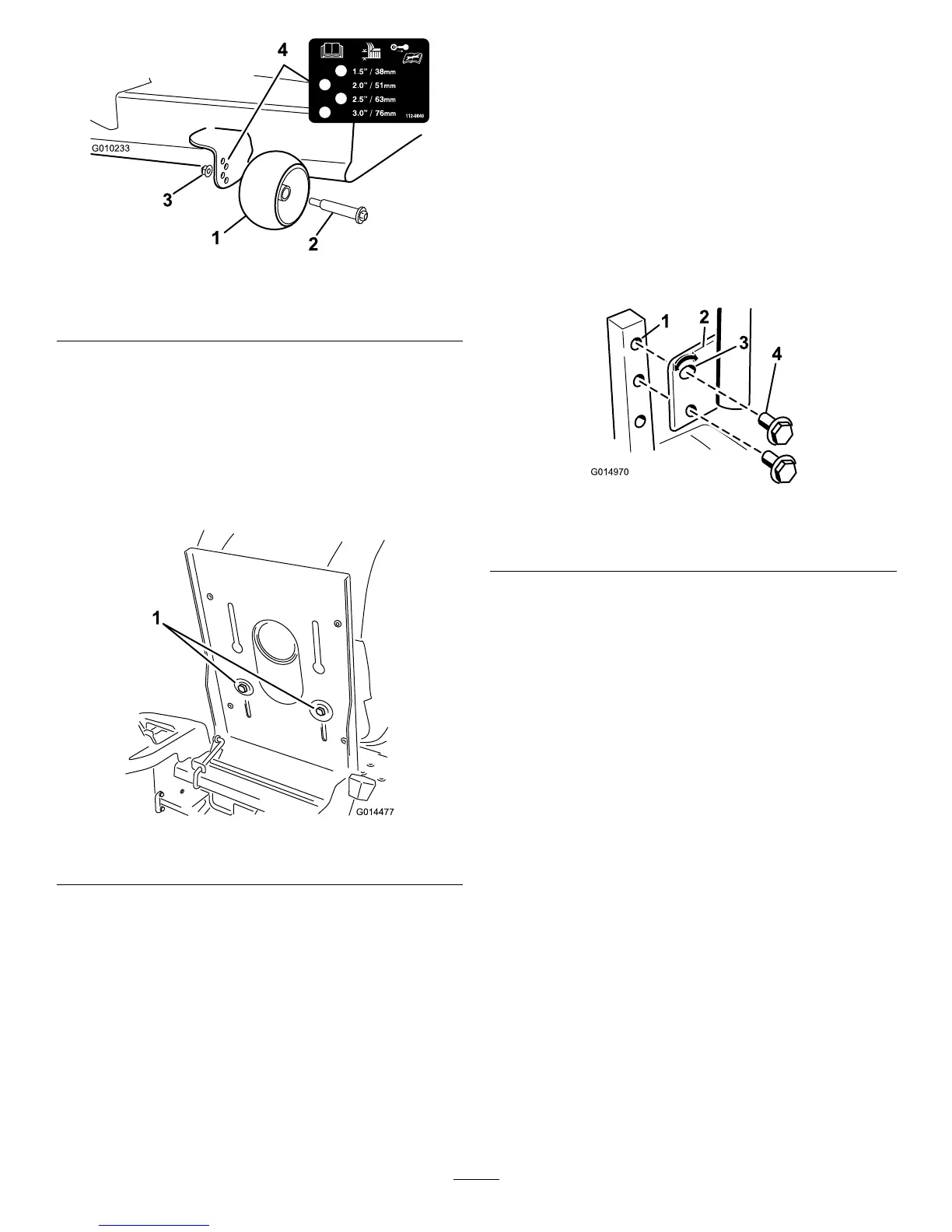

Figure21
1.Anti-scalproller3.Flangenut
2.Bolt4.Holespacing
PositioningtheSeat
Theseatcanmoveforwardandbackward.Positiontheseat
whereyouhavethebestcontrolofthemachineandaremost
comfortable.
1.Raisetheseat,andloosentheadjustmentboltsjust
enoughsothattheseatcanmove(Figure22).
G014477
1
Figure22
1.Adjustmentbolts
2.Movetheseattothedesiredpositionandtightenthe
bolts.
AdjustingtheMotion-control
Levers
AdjustingtheHeight
Themotion-controlleverscanbeadjustedhigherorlowerfor
maximumoperatorcomfort.
1.Removethe2boltsholdingthecontrollevertothe
control-armshaft(Figure23).
2.Movethecontrollevertothenextsetofholes.
3.Securetheleverwiththe2bolts(Figure23).
4
1
2
G014970
3
Figure23
1.Control-armshaft3.Slotted,upperhole
2.Controllever
4.Bolt
4.Repeattheadjustmentfortheoppositecontrollever.
AdjustingtheTilt
Themotion-controlleverscanbetiltedforeoraftfor
maximumoperatorcomfort.
1.Loosentheupperboltholdingthecontrollevertothe
control-armshaft.
2.Loosenthelowerboltjustenoughtopivotthecontrol
leverforeoraft(Figure23).
Note:Tightenbothboltstosecurethecontrolinthe
newposition.
3.Repeattheadjustmentfortheoppositecontrollever.
PushingtheMachinebyHand
Important:Alwayspushthemachinebyhand.Donot
towthemachine,becausedamagemayoccur.
Thismachinehasanelectric-brakemechanism,andtopush
themachine,theignitionkeyneedstobeintheRunposition.
Thebatteryneedstobechargedandfunctioningforthe
electricbraketobedisengage.
19
