Toro 74637 - Mower Belt Replacement Procedure

G014930
1
2
3
3
4
5
1
2
3
3
4
5
6
4

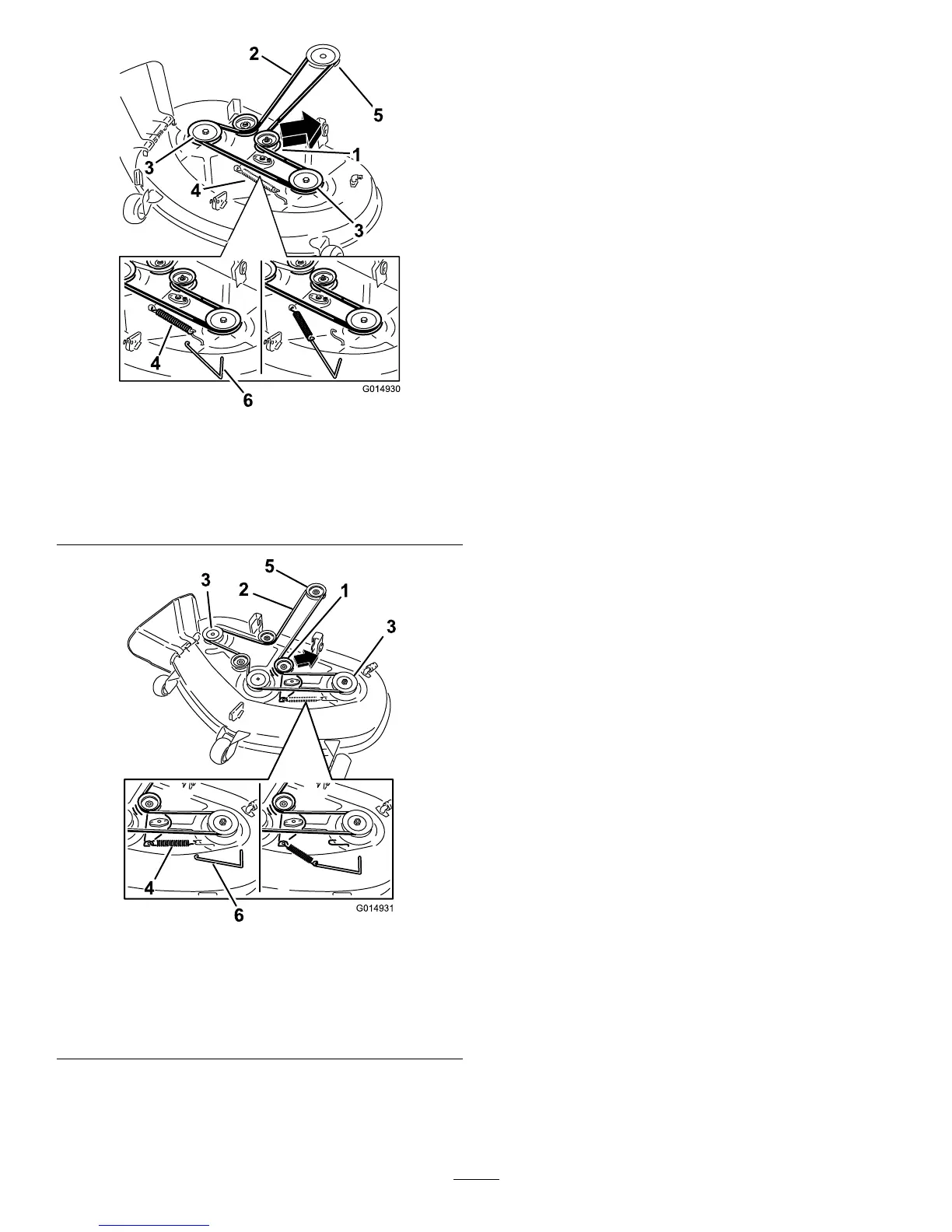

Figure59
MowerDeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
G014931
1
2
3
3
4
5
6
Figure60
MowerDeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
5.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(
Figure60).
6.Usingaspring-removaltool,(Toropartno.92-5771),
installtheidlerspringoverthedeckhookandplacing
tensionontheidlerpulleyandmowerbelt(Figure59
andFigure60).
