g230248

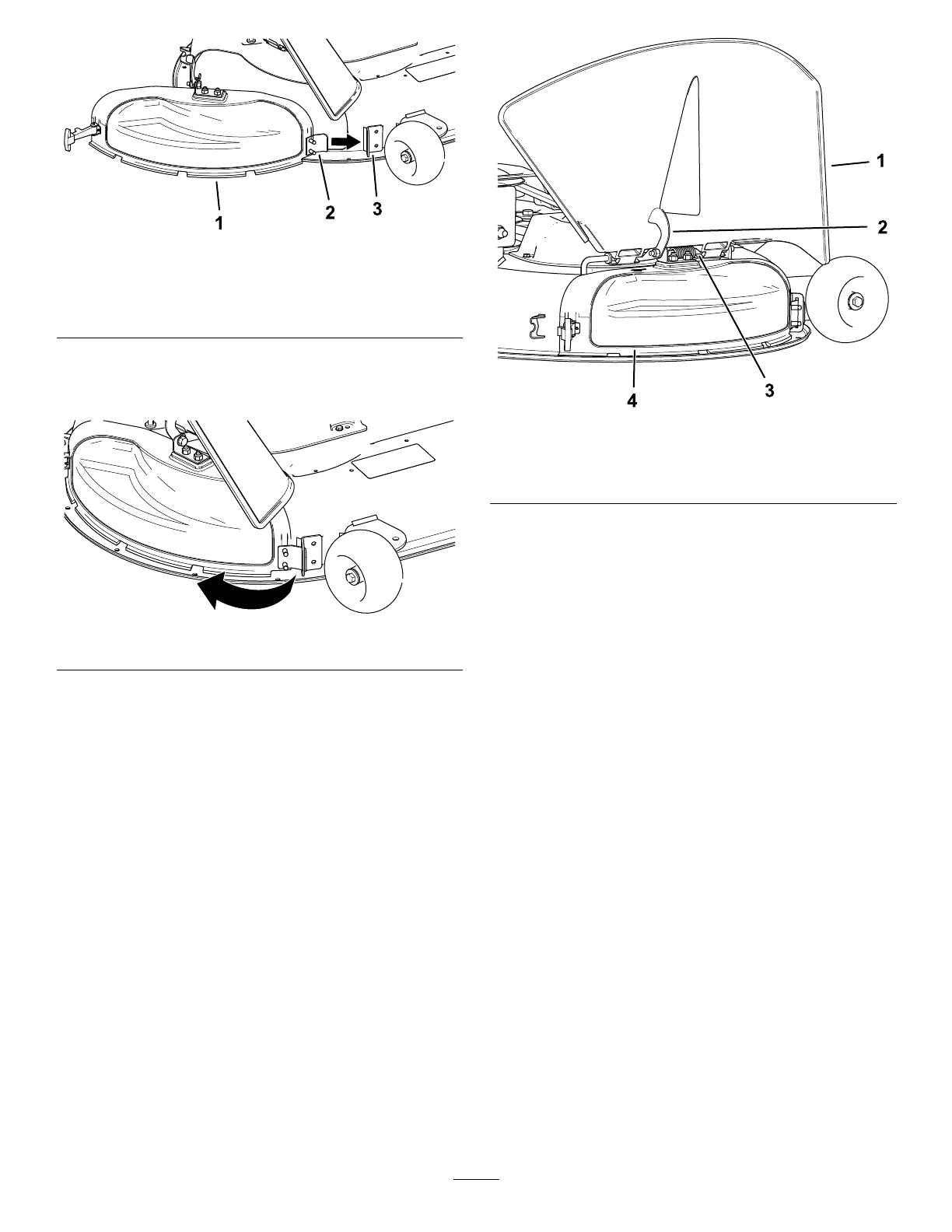

Figure13
1.Dischargecover3.Bracketonthemower
deck
2.Metaltab
4.Pivotthedischargecoverbackandtowardthe
decksothatthedischargecoveralignswiththe
mowerdeck(Figure14).
g230249
Figure14
5.Onthetopofthedischargecover,engagethe
hook-shapedlatcharoundthepivotrodofthe
deectorassembly(Figure15).
g230253
Figure15
1.Deector
3.Pivotrod
2.Latch4.Dischargecover
6.Securethedischargecovertothedeckby
hookingtheexiblelatchonthedischargecover
intotheretaineronthedeck(Figure11).
Machineswith127cm(50-inch)
MowerDecks
Themowerdeckandmowerbladesshippedwiththe
machineweredesignedforoptimummulchingand
side-dischargeperformance.
RemovingtheRightBafefor
Side-Discharging
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removetherightmowerblade;referto
RemovingtheBlades(page47).
4.Removethe2knobsandcurvedwashersthat
securetherightbafetothemower(Figure16).
