Controls

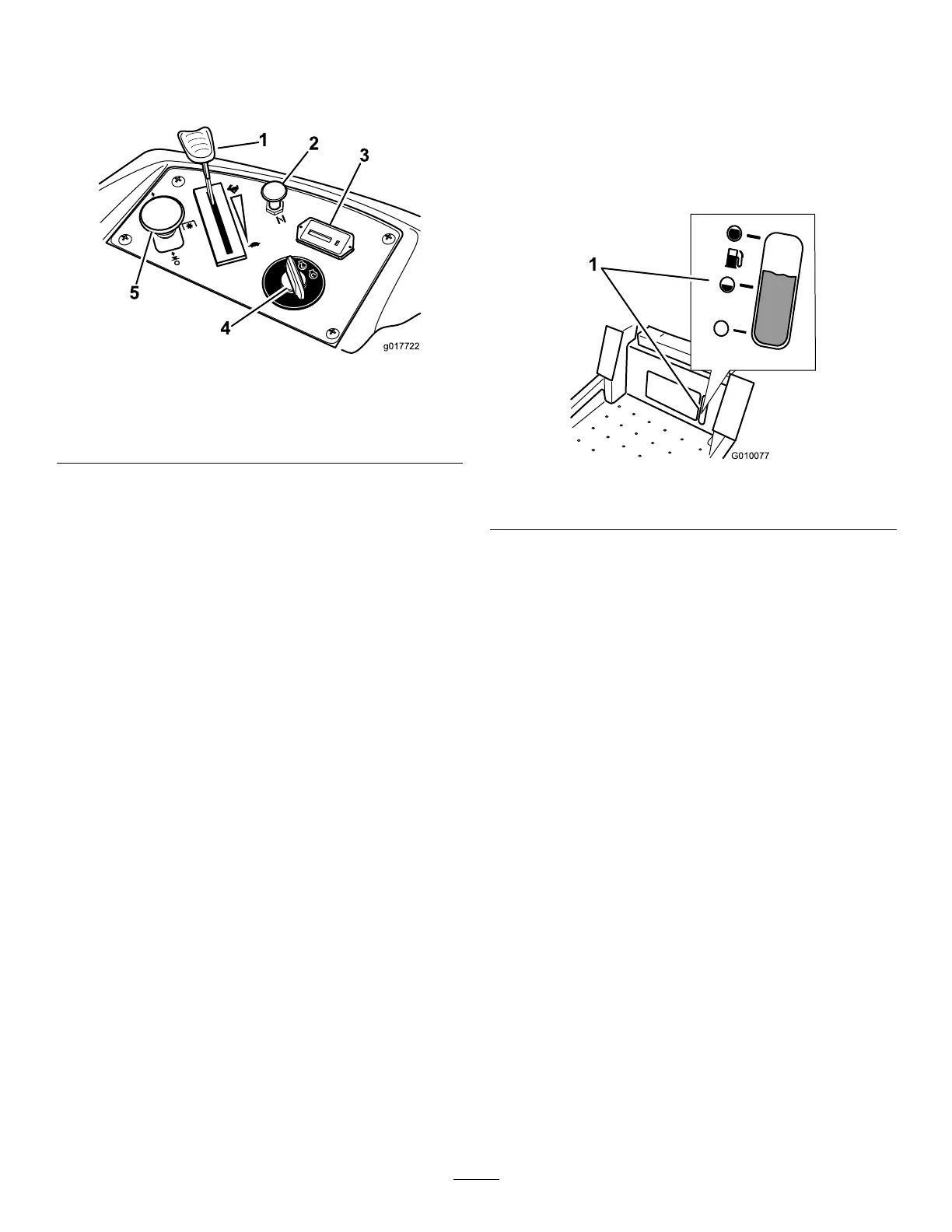

Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine(Figure7).
g017722
1
2
3
4
5
Figure7
1.Throttlecontrol4.Ignitionswitch
2.Choke5.Bladecontrolswitch(PTO)
3.Hourmeter
IgnitionSwitch
Theignitionswitchhasthreepositions:Start,Run
andOff.ThekeywillturntoStartandmovebackto
Runuponrelease.TurningthekeytotheOffposition
willstoptheengine;however,alwaysremovethekey
whenleavingthemachinetopreventtheenginefrom
accidentallystarting(
Figure7).
ThrottleControl
ThethrottlecontrolisvariablebetweenFastandSlow.
Movingthrottleleverforwardwillincreaseenginespeed
andmovingthrottlelevertotherearwilldecreaseengine
speed.Movingthethrottleforwardintothedetentis
fullthrottle(
Figure7).
Choke
Usethechoketostartacoldengine.Pullthechoke
knobuptoengageit.Pushdownonthechokeknob
todisengageit.
BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapower
take-off(PTO)symbol,engagesanddisengagespower
tothemowerblades(Figure7).
HourMeter
Thehourmeterrecordsthenumberofhourstheblades
haveoperated.Itoperateswhenthebladecontrol
switch(PTO)isengaged.Usethesetimesforscheduling
regularmaintenance(
Figure7).
FuelGauge
Thefuelwindowlocatedbelowtheoperatorposition
canbeusedtoverifythelevelofgasolineinthetank
(Figure8).
G010077
1
Figure8
1.Fuelgaugewindow
MotionControlLevers
Themotioncontrolleversarespeedsensitivecontrols
ofindependentwheelmotors.Movingaleverforward
orbackwardturnsthewheelonthesamesideforward
orinreverse;wheelspeedisproportionaltotheamount
theleverismoved.Movethecontrolleversoutward
fromthecentertotheneutrallockpositionandexitthe
machine(
Figure5).Alwayspositionthemotioncontrol
leversintotheneutrallockpositionwhenyoustopthe
machineorleaveitunattended.
ParkingBrakeLever
Locatedonleftsideoftheconsole(Figure5).Thebrake
leverengagesaparkingbrakeonthedrivewheels.Pull
theleverupandrearwardtoengagethebrake.Pushthe
leverforwardanddowntodisengagethebrake.
FootPedalDeckLiftSystem
Thefootpedaldeckliftsystemallowstheoperator
tolowerandraisethedeckfromtheseatedposition.
Theoperatorcanusethefootpedaltoliftthedeck
brieytoavoidobstaclesorlockthedeckinthehighest
height-of-cutortransportposition(Figure5).
