Premaintenance
Procedures
RaisingtheSeat
Makesurethemotioncontrolleversarelockedinthe
neutrallockposition.Lifttheseatforward.
Thefollowingcomponentscanbeaccessedbyraising
theseat:
•Servicedecal
•Fuses
•Batteryandcables
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseall
lubricationpoints.
GreaseType:No.2GeneralPurposeLithiumBase
Grease
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversoutwardtothe
neutrallockposition,stoptheengine,removethe
key,andwaitforallmovingpartstostopbefore
leavingtheoperatingposition.
3.Cleanthegreasettings(
Figure34andFigure34)
witharag.Makesuretoscrapeanypaintoffofthe
frontofthetting(s).

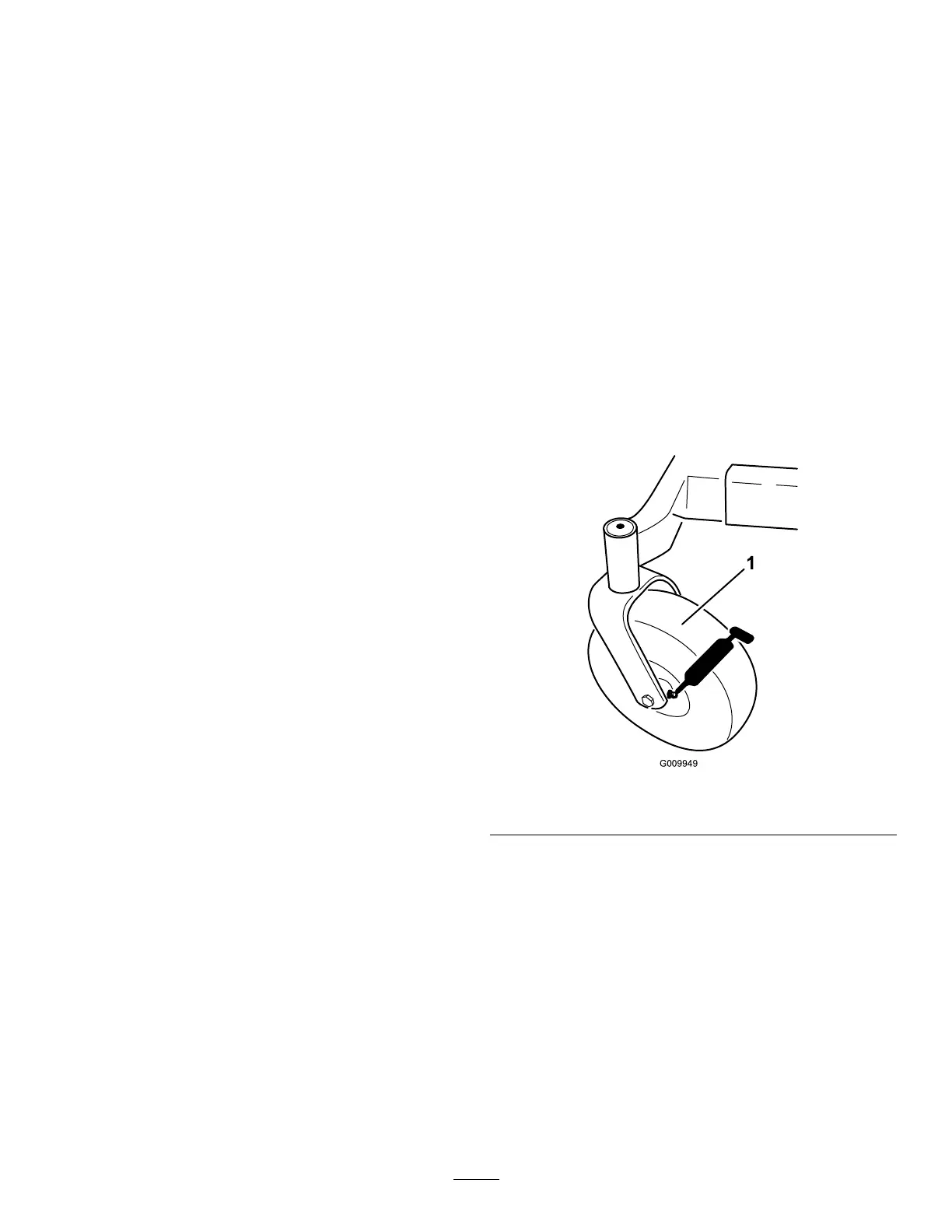

G009949
1
Figure34
1.Frontcastertire
4.Connectagreaseguntoeachtting(Figure34and
Figure33).Pumpgreaseintothettingsuntilgrease
beginstooozeoutofthebearings.
5.Wipeupanyexcessgrease.
