Toro 74915 Z Master G3 - Product Overview and Controls; Controls

ProductOverview

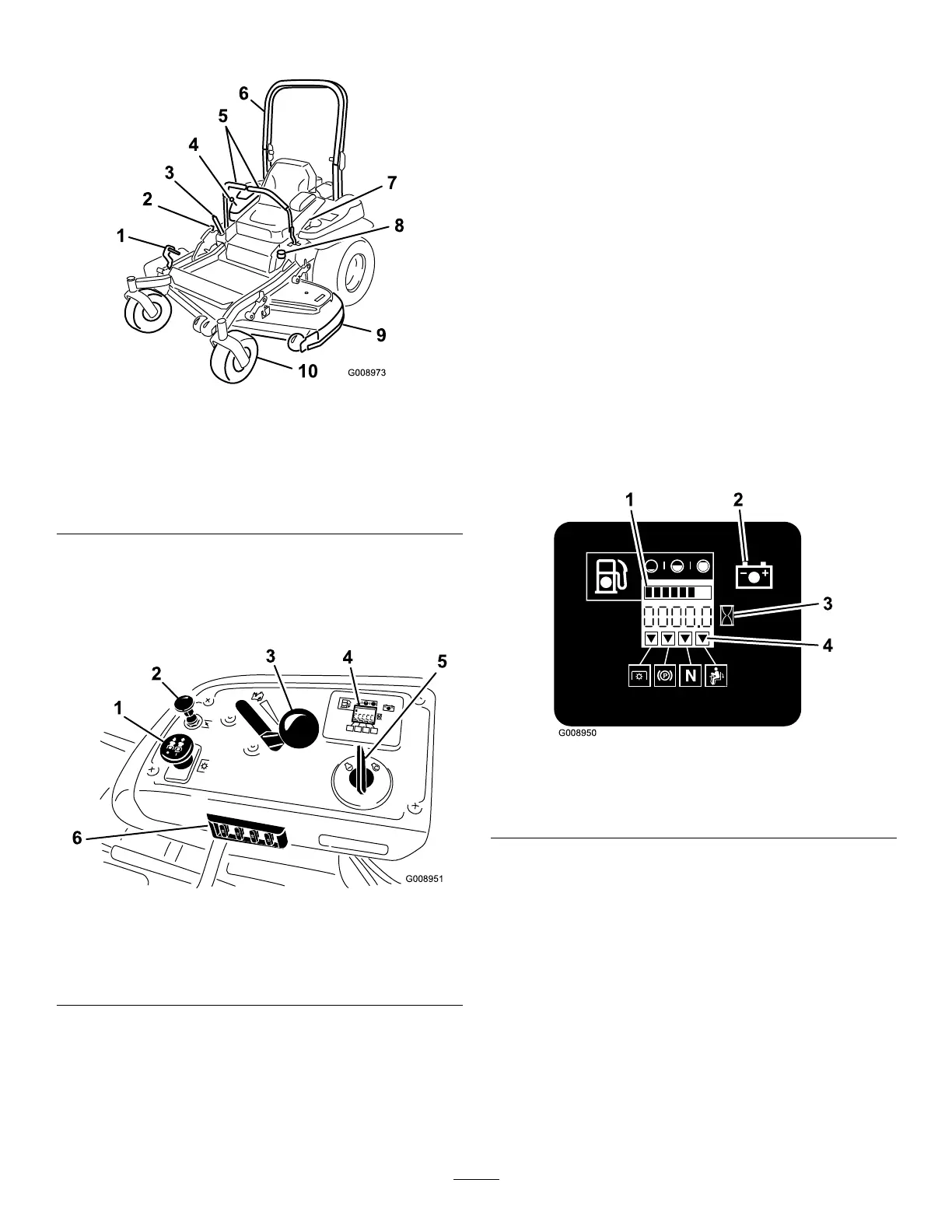

Figure4
1.Height-of-cutdecklift
pedal
6.Rollbar
2.Transportlock
7.Seatbelt
3.Parkingbrakelever8.Fuelcap
4.Controls
9.Mowerdeck
5.Motioncontrollevers
10.Casterwheel
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
25
25
10
15
G008951
1
2
3
4
5
6
Figure5
1.PTOSwitch4.Hourmeter/Safety
interlockdisplay
2.Choke
5.Ignitionswitch
3.Throttlecontrol6.Fuses
HourMeter
Thehourmeterrecordsthenumberofhourstheengine
hasoperated.Itoperateswhentheengineisrunning.
Usethesetimesforschedulingregularmaintenance
(Figure6).
FuelGauge
Thefuelgaugeislocatedwiththehourmeterandthe
barslightupwhentheignitionswitchison(Figure6).
Theindicatorlightappearswhenthefuellevelislow
(approximatelyonegallonremaininginthefueltank).
SafetyInterlockIndicators
Therearesymbolsonthehourmeterandtheindicate
withablacktrianglethattheinterlockcomponentisin
thecorrectposition(Figure6).
BatteryIndicatorLight
IftheignitionkeyisturnedtotheOnpositionforafew
seconds,thebatteryvoltagewillbedisplayedinthearea
wherethehoursarenormallydisplayed.
Thebatterylightturnsonwhentheignitionisturned
onandwhenthechargeisbelowthecorrectoperating
level(
Figure6).
G008950
12
3
4
Figure6
1.Fuelgauge(bars)4.Safetyinterlocksymbols
2.Batterylight
5.Lowfuelindicatorlight
3.Hourmeter
ThrottleControl
ThethrottlecontrolisvariablebetweenFastandSlow.
Choke
Usethechoketostartacoldengine.Pullthechoke
knobuptoengageit.
BladeControlSwitch(PTO)
Thebladecontrolswitch(PTO)isusedtoengagethe
electricclutchanddrivethemowerblades.Pullthe
switchuptoengagethebladesandrelease.Todisengage
